Sony DVP-FX730 Battery Replacement

Geschrieben von: Andrew Ward
  • Kommentare: 6
Sony DVP-FX730 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

If there is a problem with the device's supply of power, the battery may need to be replaced.

  1. MxZBHasVeyxTJBYL

    • Remove the five exposed 7.9 mm screws using a Phillips screwdriver.

    • Punch through the warranty sticker with the spudger.

    • Remove the screw underneath with the Phillips screwdriver.

  2. lZxjSvCoWm2XFKOm

    • Remove the rubber feet using the spudger.

    • Remove the screws that were covered by the rubber feet.

  3. AVWgyiIjyeEQDVBr

    • Hold on to the corners of the cover and gently lift the cover.

    • The tray is still connected to the base with wires.

  4. 2xUjXfWDYcJUr3UG

    • Gently remove the wires with tweezers by pulling up on the base they are attached to.

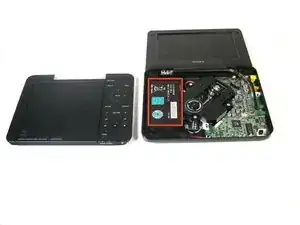

  5. JEETNVhUI2aHTm4d

    • Identify the battery with the 2 blue stickers.

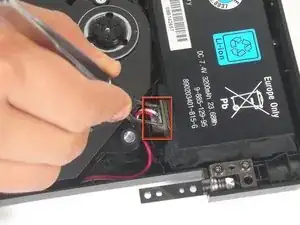

  6. NPGLMpYEZhs5PZxT
    NPGLMpYEZhs5PZxT

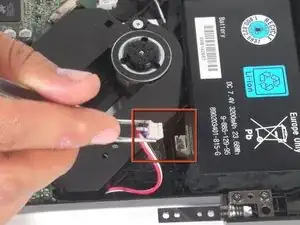

    bWobK2xSBigJmrwf

    • Remove the white and red wires from the battery by pulling on the base with tweezers.

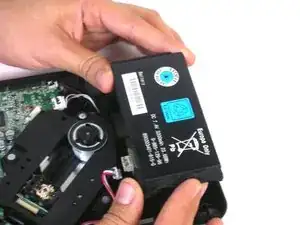

  7. orcCF1DnKBO6hv3E

    • Remove the battery from the case.

    • It will still be held down at the bottom with a piece of tape, so you may need to pull up with force.

    were can i get a battery for this unit

    wmthompson -

    How do i get a battery for this dvp fx735

    wmthompson -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Andrew Ward

Mitglied seit: 20/01/12

75 Reputation

4 Kommentare

The one thing missing here is the new battery, which from Sony costs more than a new player! The closest fit to the size and capacity that I could find came from www.batteryspace.com product number PL-544792-1C

<http://www.batteryspace.com/Polymer-Li-I...>

Size: 5.4mm x 47mm x 95mm

with minimum 2500 mAh

I paid $8.50 each plus shipping for a total of about $23.

Carefully pull the coverings off the original pack and remove the tape over the connections. The wires to the tabs should come off with enough heating from a soldering iron. Those wires can then be soldered to the tabs of the new cells. Then cover up the connections with electrical tape and wrap the covering around the new cells. It fit back in the case perfectly, and works great. I'm just passably handy with a soldering iron, so it took me a good 60-90 minutes to carefully take the battery pack apart, resolder, and reassemble.

ted -

Can I just remove the battery permanently?

Carlo Velasco -

Yes Carlo, you can remove the battery and the unit will work plugged in.

mauricio -

Thanks to the excellent guidance I have managed to remove the defunct battery from my DVP-FX730 . However the DVD player will not operate by simply connecting it to the mains adaptor . My enquiries have shown it impossible to obtain a replacement battery so do I simply give up or is there a way of fixing it to work without the battery ?

john westwood -
