Sony DVP-FX730 Laser Replacement

Geschrieben von: Oliver Woolsoncroft
  • Kommentare: 1
Sony DVP-FX730 Laser Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

Keine Schätzung

Einleitung

The laser in your Sony DVP-FX730 sends the DVD’s data to the lens, so that it can be translated into audio and video signals. If the device is having difficulty reading the disc, first check that it’s not due to a dirty or scratched disc. If the disc looks good, then the issue may be from a faulty or damaged laser. This guide offers step-by-step instructions for removing the laser, so that it can be replaced. All tools used in this guide are available from the IFIXIT website.

  1. MxZBHasVeyxTJBYL

    • Remove the five exposed 7.9 mm screws using a Phillips screwdriver.

    • Punch through the warranty sticker with the spudger.

    • Remove the screw underneath with the Phillips screwdriver.

  2. lZxjSvCoWm2XFKOm

    • Remove the rubber feet using the spudger.

    • Remove the screws that were covered by the rubber feet.

  3. AVWgyiIjyeEQDVBr

    • Hold on to the corners of the cover and gently lift the cover.

    • The tray is still connected to the base with wires.

  4. 2xUjXfWDYcJUr3UG

    • Gently remove the wires with tweezers by pulling up on the base they are attached to.

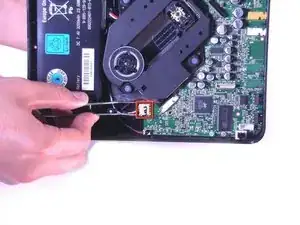

  5. lLFHfMWyQleiOWiP
    lLFHfMWyQleiOWiP

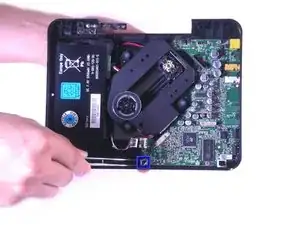

    6ISVUMVFXUTRhRWh

    • Remove the large connector.

    • Remove the small connector.

  6. w4CsqNDghXVGOZj1

    • Remove Philips screws with the #0 Philips Screwdriver.

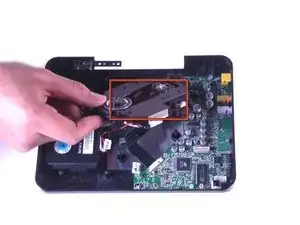

  7. MwRpWHNWclmnIxsF

    • Lift up the black piece connected to the wires.

    • Lift gently because the ribbon cable is attached to the bottom.

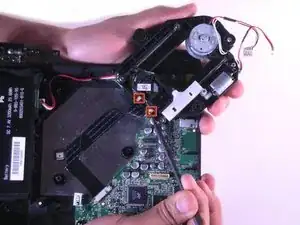

  8. QMmWeGTJoPwDc5hW
    QMmWeGTJoPwDc5hW

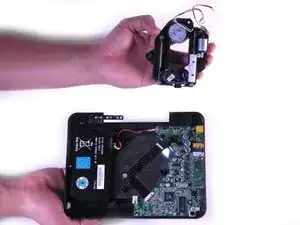

    UqGPeMPQI6UIJ2gJ

    • Unlock the lock clip

  9. GZZGcGLIxlYGbqWw

    • Remove the T6 screws with the T6 screwdriver.

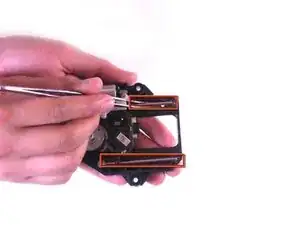

  10. n3ETGIwDBrCdEX2X

    • Gently pull the rods out with tweezers.

    • Be sure the laser is out of the way so that the rods can be removed.

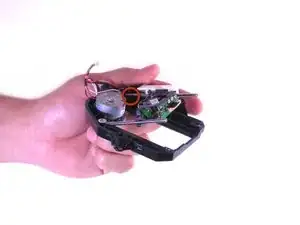

  11. CjilShEpDF1xM5Bb
    CjilShEpDF1xM5Bb
    UFQfxcQfZUDWE5Lv

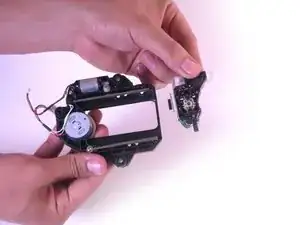

    • Pull laser off of the rods.

    • Be careful when removing the rods because a fragile metal piece may break.

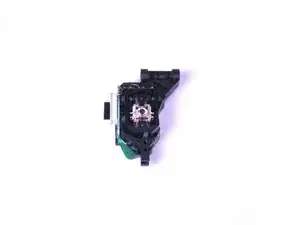

  12. kQAdSYeOOExf64Wn

    • The laser is now removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
