This guide will teach you how to remove the button circuit board.
Werkzeuge
-
-

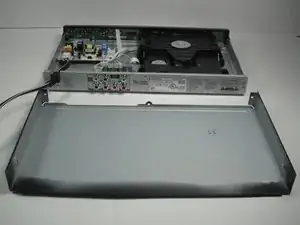

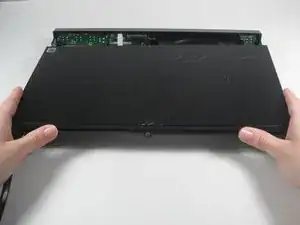

Remove the five #1 Phillips screws (black, 3/16") attaching the cover to the DVD player.
-
One 3/16" screw on the right side of the DVD player.
-
One 3/16" screw on the left side of the DVD player (directly opposite of other screw).
-

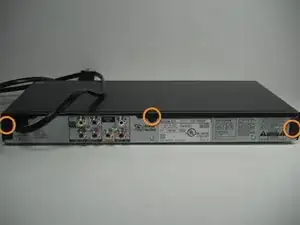

Three 3/16" screws on the back of the DVD player.
-
-
-

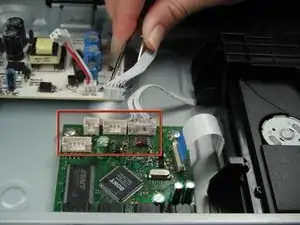

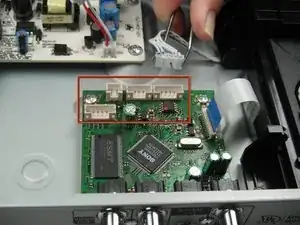

Use the tweezers to remove the four sets of wires connected to the processing board. Start with the cord located in front of the row of three cords.
-
-
-

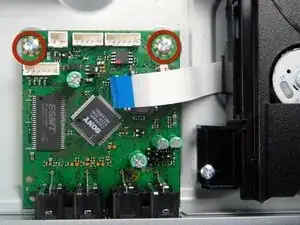

Unscrew the two #1 Phillips screws (silver, 3/16") located on the two edge corners of the processing board.
-
-
-

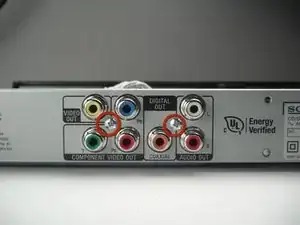

Orient the DVD player so that you are facing the video and audio jacks.
-
Unscrew the two #1 Phillips screws (silver, 3/16") located on the outside of the DVD player
-
-
-
Orient the DVD player so the front of the DVD player is opposite of you.
-
Remove the two #1 Phillips screws (silver, 3/16") that attach the DVD drive to the bottom of the DVD player.
-
-
-

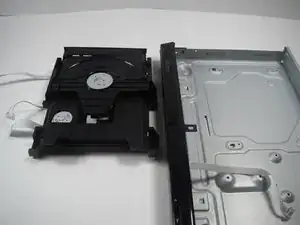

Remove the DVD drive by pulling it backward and upward while ensuring that it is free of any braces.
-
-
-
Orient the DVD player so the button circuit board is facing you.
-

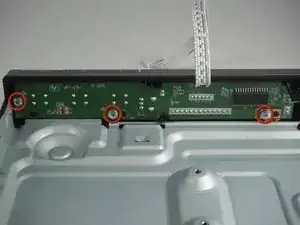

Remove the four #1 Phillips screws (silver, 3/16") from the button circuit board.
-
Three 3/16" screws from the longer button circuit board.
-

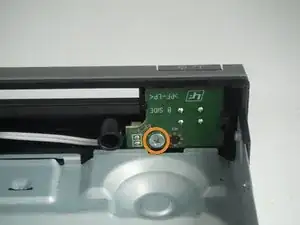

One 3/16" screw from the smaller button circuit board.
-
-
-

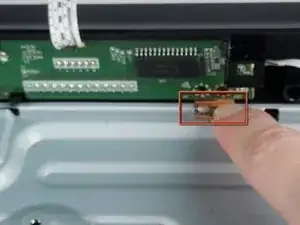

Hold down the copper brace that is near the far right screw hole of the long circuit board.
-

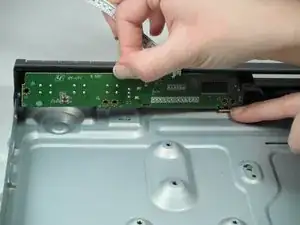

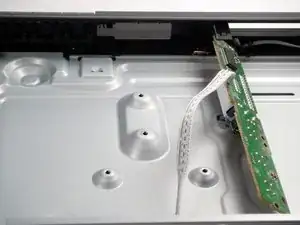

Lift the longer button circuit board over the copper brace and out of its position.
-
-
-

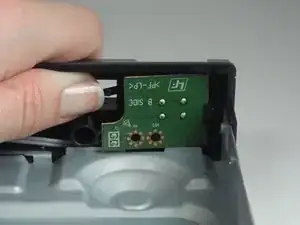

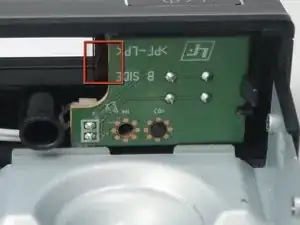

Push back the black, plastic clip near the left center of the shorter button circuit board.
-

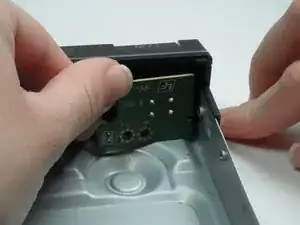

Pull the shorter button circuit board out of its position.
-
-
-

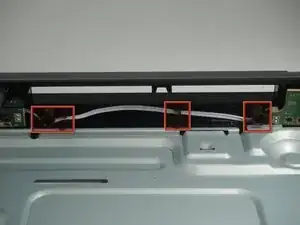

Wiggle the white cord connecting the two boards out from under the plastic pieces securing the cord.
-

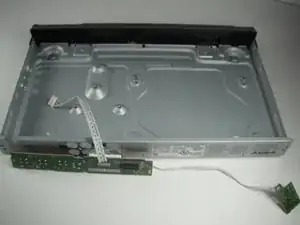

Lift the button circuit board out of the DVD player.
-
To reassemble your device, follow these instructions in reverse order.
