Sony DVP-SR200P DVD Reader Replacement

Geschrieben von: Jose Coronel
  • Kommentare: 2
Sony DVP-SR200P DVD Reader Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

1 Stunde

Einleitung

By removing the DVD reader you will be able to install a new reader.

  1. mJNYdIZnPTo2gJAJ
    mJNYdIZnPTo2gJAJ
    rVuJ1aWdBE3MoWF4

    • Remove the five #1 Phillips screws (black, 3/16") attaching the cover to the DVD player.

    • One 3/16" screw on the right side of the DVD player.

    • One 3/16" screw on the left side of the DVD player (directly opposite of other screw).

    • Three 3/16" screws on the back of the DVD player.

  2. PXMdKsIPCMvZYo1P
    PXMdKsIPCMvZYo1P
    FED6rjbnFjbdwDGm

    • Slide the cover away from the front of the DVD player until it is off.

  3. CIZQGRNYt2yIxguj

    • Remove the blue tape from the processing board by gently pulling upward.

  4. GLuIiXp1O1Zm1GbE
    GLuIiXp1O1Zm1GbE
    TelL5faGjZVyvIVG

    • Use the tweezers to remove the four sets of wires connected to the processing board. Start with the cord located in front of the row of three cords.

    • The wires may be difficult to remove. Wiggling them while lifting them up may help remove them.

  5. kJZlJ26dpJtCNXpy

    • Handle the processing board with care. It is fragile.

    • Unscrew the two #1 Phillips screws (silver, 3/16") located on the two edge corners of the processing board.

  6. 4bMVmr6G5Ok1xIqC

    • Orient the DVD player so that you are facing the video and audio jacks.

    • Unscrew the two #1 Phillips screws (silver, 3/16") located on the outside of the DVD player

    • The processing board is now free to be removed and replaced.

  7. mIulUYyKTatpDguC

    • Orient the DVD player so the front of the DVD player is opposite of you.

    • Remove the two #1 Phillips screws (silver, 3/16") that attach the DVD drive to the bottom of the DVD player.

  8. 1OOhCEblCHEEQuGS

    • Remove the DVD drive by pulling it backward and upward while ensuring that it is free of any braces.

  9. 4VoWxkLHuakIRkBJ
    4VoWxkLHuakIRkBJ
    TqRmdJxMmPRXhycI

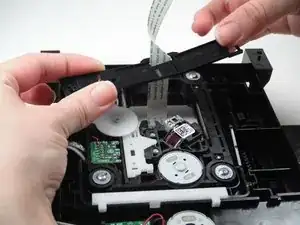

    uQLxFZvjCCUFMEwN

    • Flip the DVD drive upside down, to match the orientation of the first picture.

    • Carefully remove the white ribbon cable from the brace holding it in place by sliding it out towards you.

    • Next remove the brace from the DVD drive. Carefully wiggle and pull the brace upward as the white ribbon cable slides out through the brace.

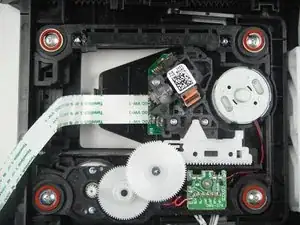

  10. SZBRBbicbERks6lH

    • Remove the four silver #1 Phillips 3/16''screws to free the DVD reader from the DVD drive.

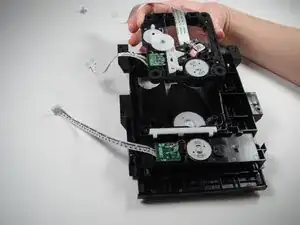

  11. oEaUMnWpfvTMBtIT

    • Remove the DVD reader from the DVD drive by pulling it upwards off of the drive.

    • The DVD reader can now be replaced.

    I have forgot the security lock plz salvoe this problem

    bhaskara rao -

Abschluss

To reassemble your device, follow these instructions in reverse order.
