Sony Dream Machine ICF-C717PJ Antenna Replacement

Geschrieben von: Gurleen Powar
  • Kommentare: 0
Sony Dream Machine ICF-C717PJ Antenna Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

4 - 5 Minuten

Einleitung

This guide will be useful in replacing or repairing your antenna if its not functioning properly.

Please refer to the Sony Dream Machine troubleshooting page for extra assistance if needed.

  1. tcM6XHxwjRH3Sgoe

    • Remove the screw from the backside cover of the Sony Dream Machine with a Phillips Screwdriver.

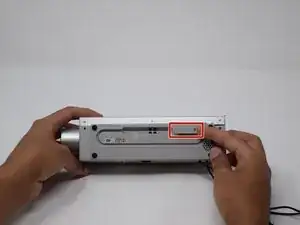

  2. WebbCCO25nrtx1DT

    • Using your finger, carefully pull the battery from cover tab.

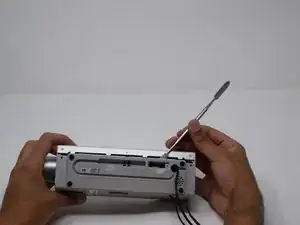

  3. 12Jvn21yrXZ6duPS

    • Continue by removing the back cover of the device, pry open with a screwdriver if necessary.

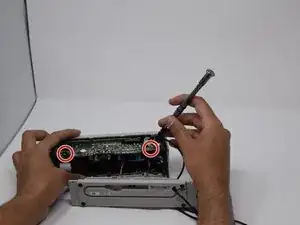

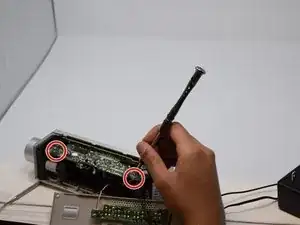

  4. tIEFxK4dv5HqFVrH
    tIEFxK4dv5HqFVrH
    hjOcEEI1cghANLYP

    • Using a small Philips screwdriver, remove all of the tiny screws from the motherboard.

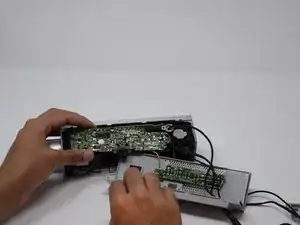

  5. QfeI2dMiCqYHgS5L

    • Remove the motherboard with your hands.

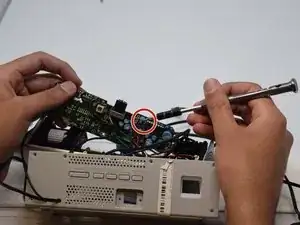

  6. UpixaqH4QZDGMlbD

    • Ensure the batteries next to the antenna have not fried or been damaged.

Abschluss

To reassemble your device, follow these instructions in reverse order.
