Sony Dream Machine ICF-C717PJ Buttons Replacement

Geschrieben von: Nimo Ahmed
  • Kommentare: 0
Sony Dream Machine ICF-C717PJ Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

7 Minuten

Einleitung

If the buttons on the device do not work, refer to this guide. Please see the Sony Dream Machine ICF-C717PJ Troubleshooting page: Sony Dream Machine ICF-C717PJ to eliminate other possible issues before tinkering with the buttons. This guide will help you fix the buttons on the Sony Dream Machine ICF-C717PJ.

  1. nbOvJ2NWKjiFivN3
    nbOvJ2NWKjiFivN3
    vfHCYsZHI5QDE1Wi

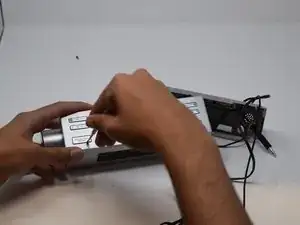

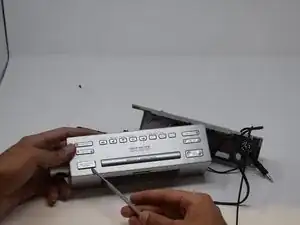

    • Gently insert a flat head screwdriver in the gaps between the button and device body to loosen them from their positions.

  2. rrE2GCC6bu3Y4u5h

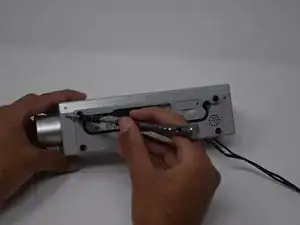

    • Remove all screws on the back cover of the device and pull the cover off.

  3. mbmdptHVtd3osgcZ

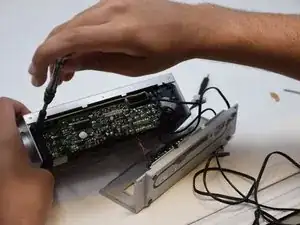

    • Using a small tool, firmly press on each button until they pop out of their place.

  4. SVwTFMlUK6mf4oMQ

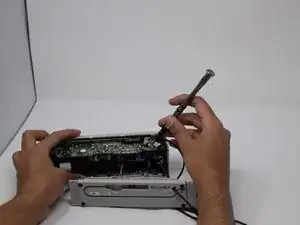

    • Insert the new button from the inside of the device, pushing it gently towards the front until it locks into place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
