This guide will show you how to dissemble the microphone. Before you start you need to have a set of screw drivers (Philips head #00, #2, #0). To reassemble the microphone just reverse the steps.
For names of the microphone parts, please click below:
-
-

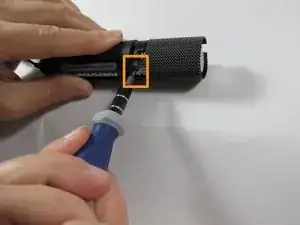

Remove the windscreen. Using the Phillips head (#00) screwdriver, unscrew the diaphragm from the bottom base of the microphone.
-
-
-

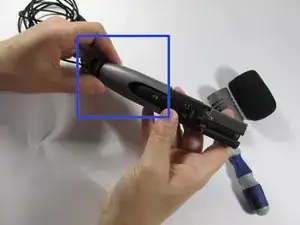

By unscrewing in a clockwise motion remove the bottom base of the microphone.
-

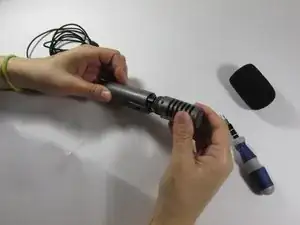

This should free up the bottom base so that it can be separated from the microphone.
-
-
-

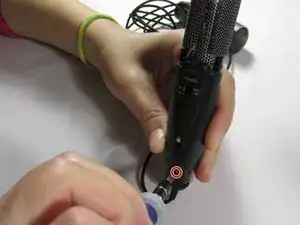

Using the Phillips head (#2) screwdriver, remove screw directly above the battery by rotating counterclockwise.
-
-
-

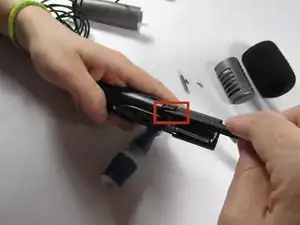

Using the Phillips head (#0) screwdriver to remove the black screw near the bottom of the microphone.
-
-
-

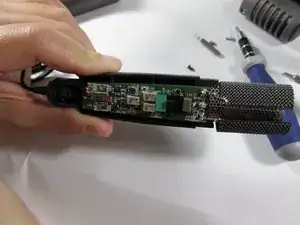

Use the heavy duty spudger to detach the grip area from the microphone. The inside of the diaphragm should now be visible.
-
To reassemble your device, follow these instructions in reverse order.
