Sony Ericsson J22Oi Keypad Replacement

Geschrieben von: James Au
  • Kommentare: 0
Sony Ericsson J22Oi Keypad Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

3 - 5 Minuten

Einleitung

This guide will show the user how to disassemble a Sony Ericsson J22Oi with the intent of removing and replacing the phone's keypad.

  1. 35fCekMnfvIkRJJW

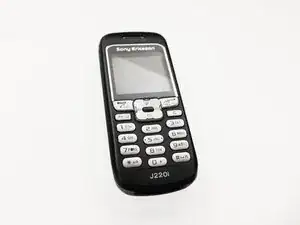

    • Before disassembling the phone, make sure the phone is powered off.

  2. oTUvFZVJIAWNJEtw

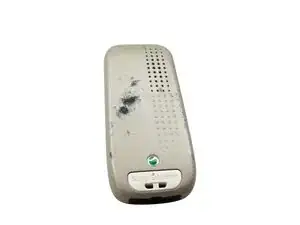

    • Flip to the back of the phone and locate the black button on the top of the phone.

  3. HYMHbxbveCEmtlR2

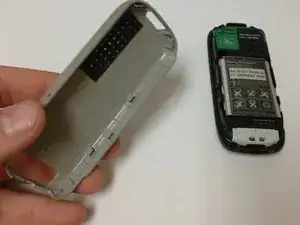

    • Firmly hold down the black button on the top of the phone and gently snap off the back cover.

  4. U4SsVwXhBEQV1EWv

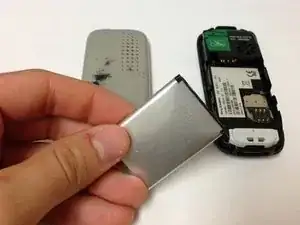

    • Remove the battery by wedging it out from the back.

  5. MOiqnDWLNIIpWOAY

    • Flip to the front of the phone and apply pressure to the front frame of the phone. The frame should snap off easily.

  6. nCQjMXFZMZnymOXh

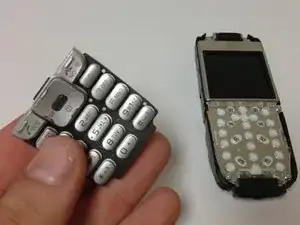

    • Remove the keypad by gently pulling it from the front of the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
