Sony Ericsson K750i LCD Screen Replacement

Geschrieben von: Abby Evers
  • Kommentare: 1
Sony Ericsson K750i LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

20 Minuten

Einleitung

  1. JTpljSnQXIKxJsi5

    • Remove the battery cover.

    • Press down firmly with your thumb and slide the cover back.

  2. ZrDcWvK2FrtbAjWf

    • Remove two Phillips #0 screws from the battery chamber.

    • Remove two Torx T6 screws from the battery chamber.

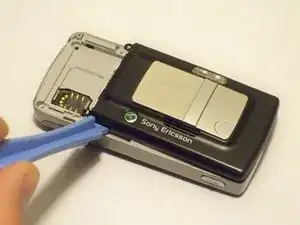

  3. JZtIRSEaCJyOetJM

    • Gently pry off the back casing.

    • Work an opening tool around the entire seam before attempting to pull off the casing. This action will reduce the chance of cracking the casing.

  4. W6VjZP3cxjnUtjMS

    • Remove the casing to expose the camera's components.

  5. EMOP155jhLmrTBym

    • Gently pry open the front casing by working an opening tool along the entire seam.

  6. WqGWOFDPGvtKHjDV

    • Remove the front casing by gently lifting it from the phone.

    • Be careful not to pull off any other delicate pieces.

  7. 3ptAFD6VAwhJFo3e
    3ptAFD6VAwhJFo3e

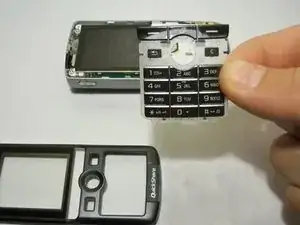

    wSFnAlEykPRflkTC

    • Remove the keypad.

    • The LCD screen is very fragile. Be careful not to catch the keypad on it while removing.

  8. 5RLmXDEG2cZYAhZb

    • Remove the screws holding the screen in place.

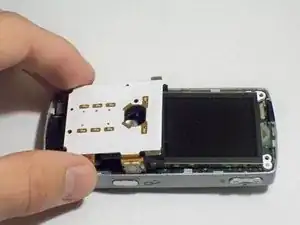

  9. l3RdB3oQC3eoEUYL

    • Gently lift the base of the keypad to remove it.

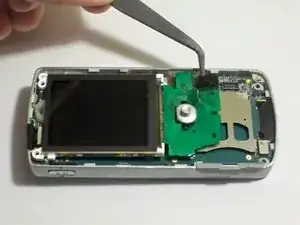

  10. PHs4UguuSg6bvO2w

    • Gently pull up the green film, avoiding the joystick.

    • The LCD screen will be attached to this film and come off with it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
