Sony Ericsson T68i Microphone Replacement

Geschrieben von: Tim Dascomb
  • Kommentare: 0
Sony Ericsson T68i Microphone Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

This guide will assist you in removing the microphone from your Sony Ericsson T68i.

  1. SFIUTLoQMnl3kkvU
    SFIUTLoQMnl3kkvU
    kIMekXFl6EQ4bMHL

    • Remove the battery from the back.

  2. TbIkrZRTKinSZ4Rb
    TbIkrZRTKinSZ4Rb
    6JaQDKl5DwTcStbd
    mSCOAabTbRShDpOs

    • Pry off the plastic cover from the top with a thin plastic shim, then remove it from the two bottom clips.

    • Do not bend it too far down, or else you risk breaking the two bottom clips.

  3. fxoUvKUJOhiHS2eU
    fxoUvKUJOhiHS2eU
    Yq5CEnJeQ11H1TSJ
    LwTAxHHlBlvK3DGN

    • Unscrew all four Torx T6 screws.

    • Keep in a safe place.

  4. TNbCNMlkc4J3e21g
    TNbCNMlkc4J3e21g
    NsulPge2OtI3EDfE
    WxegWHoKvCgBlcss

    • After removing the screws, the two halves will separate. If not, then pry them gently apart.

  5. NLdJaGGGJEatTDpy
    NLdJaGGGJEatTDpy
    TTUgU1q1K2LISSdH
    lcp4Z4YKGKRrgRQ4

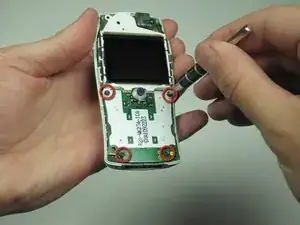

    • Next remove the circuit board and screen from the device.

    • Use your T6 to remove the 4 screws holding the cover on.

  6. FZNpf6PisQrVUnjY
    FZNpf6PisQrVUnjY
    jIFfoGuOJUsvU4TX
    2gMUNYDyAZ5LX3nc

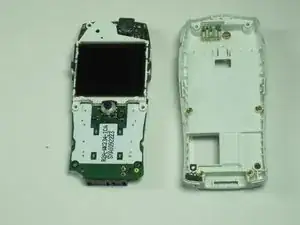

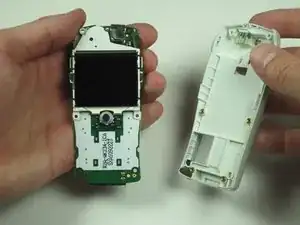

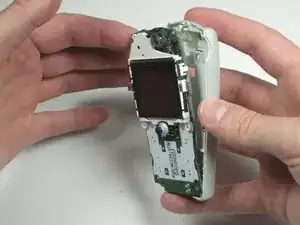

    • The board and screen should just pop out at this point.

  7. D2K2EJFMFSOsuEEc
    D2K2EJFMFSOsuEEc
    oFEPJLxUQLMLKd6Z

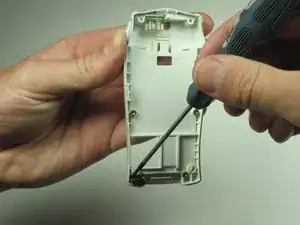

    • The microphone at the bottom of the rear housing can be levered out using a small screwdriver or any similar tool.

Abschluss

To reassemble your device, follow these instructions in reverse order.
