Sony Ericsson T68i Screen Replacement

Geschrieben von: Tim Dascomb
  • Kommentare: 0
Sony Ericsson T68i Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

This guide will assist you in removing the screen from your Sony Ericsson T68i.

  1. SFIUTLoQMnl3kkvU
    SFIUTLoQMnl3kkvU
    kIMekXFl6EQ4bMHL

    • Remove the battery from the back.

  2. TbIkrZRTKinSZ4Rb
    TbIkrZRTKinSZ4Rb
    6JaQDKl5DwTcStbd
    mSCOAabTbRShDpOs

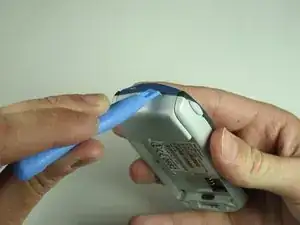

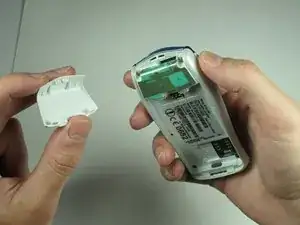

    • Pry off the plastic cover from the top with a thin plastic shim, then remove it from the two bottom clips.

    • Do not bend it too far down, or else you risk breaking the two bottom clips.

  3. fxoUvKUJOhiHS2eU
    fxoUvKUJOhiHS2eU
    Yq5CEnJeQ11H1TSJ
    LwTAxHHlBlvK3DGN

    • Unscrew all four Torx T6 screws.

    • Keep in a safe place.

  4. TNbCNMlkc4J3e21g
    TNbCNMlkc4J3e21g
    NsulPge2OtI3EDfE
    WxegWHoKvCgBlcss

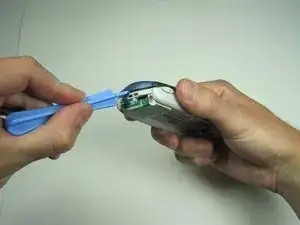

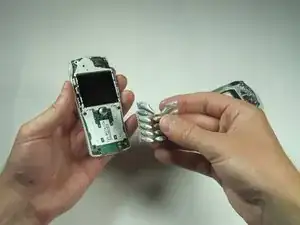

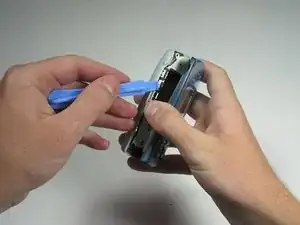

    • After removing the screws, the two halves will separate. If not, then pry them gently apart.

  5. bLcYtsAjus1tALGN
    bLcYtsAjus1tALGN
    Q2nZ1SU1HJqZtbhB
    2sfSUmSQQYO4laHe

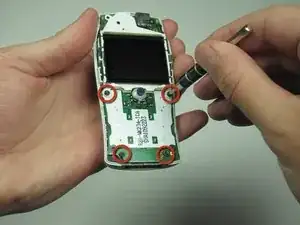

    • Remove the circuit board and screen from the device.

    • Use your T6 to remove the 4 screws.

  6. KIcM4cVCOZfqOELT
    KIcM4cVCOZfqOELT
    FZWltHjMN5Gf6aLN
    VEjRsKvOWYjIfif4

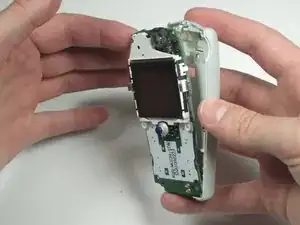

    • Remove the board and screen.

  7. kRQDowZGKXy3QqLY
    kRQDowZGKXy3QqLY
    Z3GZJwXOSRXVATKZ
    eIx2Liu1fhoYZijP

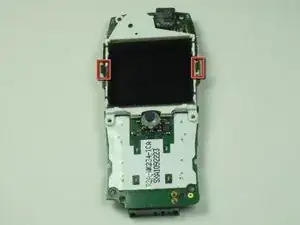

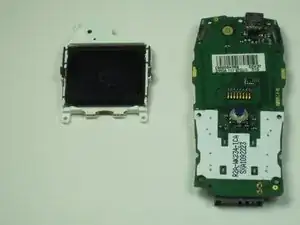

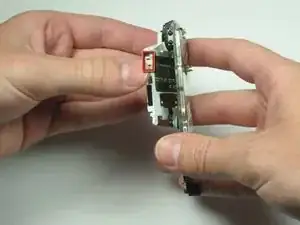

    • Carefully remove the plastic clips holding the screen on the board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
