Einleitung

This guide will assist you in removing the speaker from your Sony Ericsson T68i.

  1. SFIUTLoQMnl3kkvU
    SFIUTLoQMnl3kkvU
    kIMekXFl6EQ4bMHL
    • Remove the battery from the back.

  2. TbIkrZRTKinSZ4Rb
    TbIkrZRTKinSZ4Rb
    6JaQDKl5DwTcStbd
    mSCOAabTbRShDpOs
    • Pry off the plastic cover from the top with a thin plastic shim, then remove it from the two bottom clips.

    • Do not bend it too far down, or else you risk breaking the two bottom clips.

  3. fxoUvKUJOhiHS2eU
    fxoUvKUJOhiHS2eU
    Yq5CEnJeQ11H1TSJ
    LwTAxHHlBlvK3DGN
    • Unscrew all four Torx T6 screws.

    • Keep in a safe place.

  4. TNbCNMlkc4J3e21g
    TNbCNMlkc4J3e21g
    NsulPge2OtI3EDfE
    WxegWHoKvCgBlcss
    • After removing the screws, the two halves will separate. If not, then pry them gently apart.

  5. bLcYtsAjus1tALGN
    bLcYtsAjus1tALGN
    Q2nZ1SU1HJqZtbhB
    2sfSUmSQQYO4laHe
    • Remove the circuit board and screen from the device.

    • Use your T6 to remove the 4 screws.

  6. KIcM4cVCOZfqOELT
    KIcM4cVCOZfqOELT
    FZWltHjMN5Gf6aLN
    VEjRsKvOWYjIfif4
    • Remove the board and screen.

  7. kRQDowZGKXy3QqLY
    kRQDowZGKXy3QqLY
    Z3GZJwXOSRXVATKZ
    eIx2Liu1fhoYZijP
    • Carefully remove the plastic clips holding the screen on the board.

  8. A4tudfs2qEvw32vs
    A4tudfs2qEvw32vs
    DIwgjeGcfVcrL6Ot
    bLTG3wDMgGpqeEQl

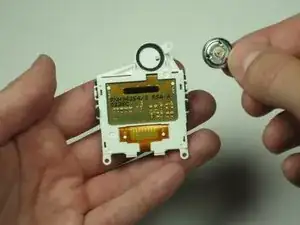

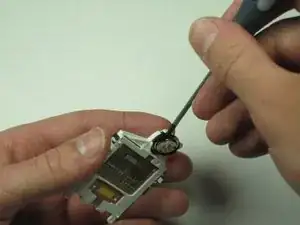

    • Gently pry it out the speaker located in the screen housing with a small screwdriver or similar tool.

Abschluss

To reassemble your device, follow these instructions in reverse order.
