Sony Ericsson T68i Vibration Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

This guide will assist you in removing the vibration motor from your Sony Ericsson T68i.

  1. SFIUTLoQMnl3kkvU
    SFIUTLoQMnl3kkvU
    kIMekXFl6EQ4bMHL

    • Remove the battery from the back.

  2. TbIkrZRTKinSZ4Rb
    TbIkrZRTKinSZ4Rb
    6JaQDKl5DwTcStbd
    mSCOAabTbRShDpOs

    • Pry off the plastic cover from the top with a thin plastic shim, then remove it from the two bottom clips.

    • Do not bend it too far down, or else you risk breaking the two bottom clips.

  3. fxoUvKUJOhiHS2eU
    fxoUvKUJOhiHS2eU
    Yq5CEnJeQ11H1TSJ
    LwTAxHHlBlvK3DGN

    • Unscrew all four Torx T6 screws.

    • Keep in a safe place.

  4. TNbCNMlkc4J3e21g
    TNbCNMlkc4J3e21g
    NsulPge2OtI3EDfE
    WxegWHoKvCgBlcss

    • After removing the screws, the two halves will separate. If not, then pry them gently apart.

  5. OBsQHCFBeCRAXnJS
    OBsQHCFBeCRAXnJS
    FsQuxW4YY6iPkQrT

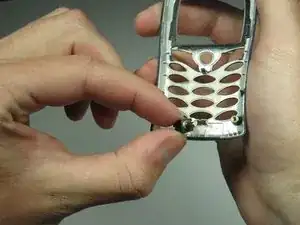

    • Remove the vibration motor visible in the front housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
