Sony Ericsson TM506 Sim Card Replacement

Geschrieben von: Daniel
  • Kommentare: 0
Sony Ericsson TM506 Sim Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide provides instruction for installing a sim card for the Sony Ericsson TM506 cell phone.

  1. kJQJam6hBGEPUyXY
    kJQJam6hBGEPUyXY
    aMvyaIKwQJ4nJGiE
    Mmn4PhtHtsDOclWR

    • Firmly hold the phone between your fingers with your thumb on the battery cover.

    • Push down with your thumb until the battery cover comes off.

  2. xEsvegUtiQoP2rwx
    xEsvegUtiQoP2rwx
    LKK6fkr3iJKal1fe
    N2rNHXAoZqH3dU6A

    • Unscrew the bottom two 5.4mm screws with a Torx T6 screwdriver.

  3. dJjlF2beeRJhNEgg
    dJjlF2beeRJhNEgg
    VpCOksk2AMQrUdRJ

    • Remove the two rubber casings for the top two screws with a plastic opening tool.

  4. hMQHbbPurExHykxZ

    • Unscrew these two 5.4mm screws with a Torx T6 screwdriver.

  5. NWVovgAm1wxpYPAo
    NWVovgAm1wxpYPAo
    xsigQPE1PMpYoc2p
    epDKrHn5E4rhJb3S

    • There are eight snap hooks located around the outer case. Carefully snap these to remove the outer case.

  6. 1EuBAVQGRKH4YpqL
    1EuBAVQGRKH4YpqL
    dZnBFbLOoDbijJEI

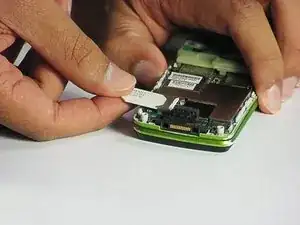

    • The Sim card can simply be pulled out through the opening.

Abschluss

To reassemble your device, follow these instructions in reverse order.
