Sony Ericsson Vivaz (U5) Digitizer Replacement

Geschrieben von: ZFix
  • Kommentare: 1
Sony Ericsson Vivaz (U5) Digitizer Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 20 Minuten

Einleitung

How to change / replace Touch Screen / Digitizer - Sony Ericsson Vivaz U5, also known as Sony Ericsson Kurara!

Video Guide

  1. mI6nRBV1HCpi3qbb
    mI6nRBV1HCpi3qbb
    ysQobHkfEHlEYOtT
    pYviWYOjcUoogJVv

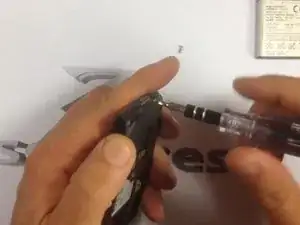

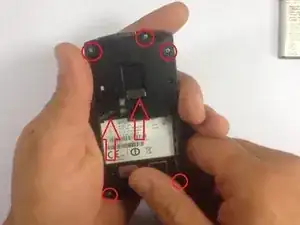

    • First remove battery, sim card and memory card. You must remove seven screws.

    First remove the battery, sim card and memory card.

    ZFix -

  2. n5xWTdPXvBb2LcKt

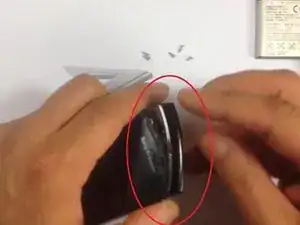

    • Now remove this part.

  3. LSfSRP6DoKtwsmBh
    LSfSRP6DoKtwsmBh
    sFNdosGOK4nwy4Og
    BvXcbpxQFoyS1LQC

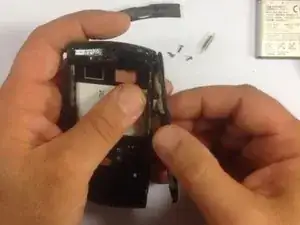

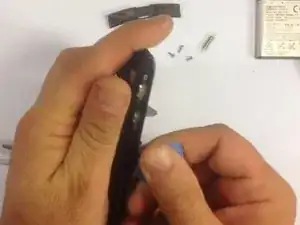

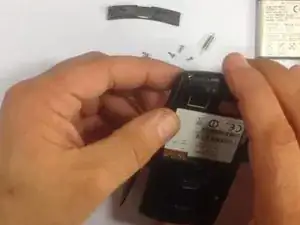

    • This baseboards are sticked with a double-sided tape.

  4. PpbQvNNIwltEPOXN
    PpbQvNNIwltEPOXN
    tcX2LEseVoAtwcGN
    1aLcWgNFZsHZQUcK

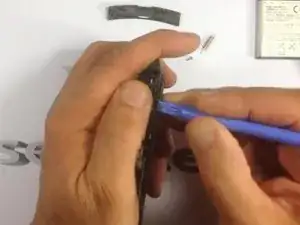

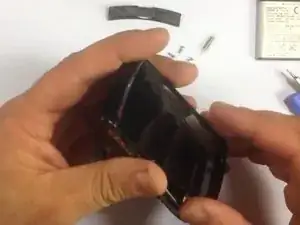

    • Remove the Touch Screen! To be more easy, heat it with hot air before doing so!

  5. FI6vIe4oompT4XTX
    FI6vIe4oompT4XTX
    UVD5PLF3ToDP5nBn
    q6LRxvvL3Ny61ELy

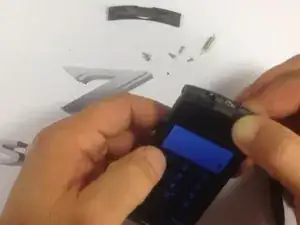

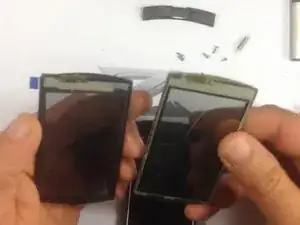

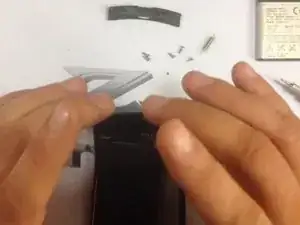

    • Now is the time for the new Touch Screen.

  6. VaJxMwJrv4B4FhK2
    VaJxMwJrv4B4FhK2
    FDikmEW3avxE4Zvu
    exDgcAShdk5N1TAa

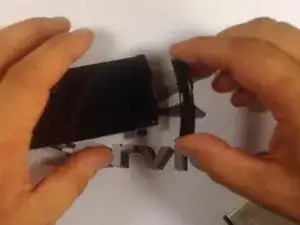

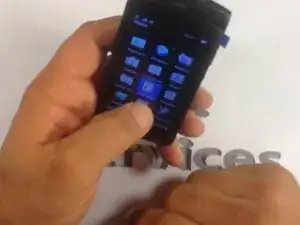

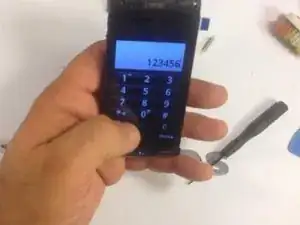

    • Test, assembling and... that is all.

Abschluss

To reassemble your device, follow these instructions in reverse order.
