Sony Ericsson Xperia Play Main Flex Cable Replacement

Geschrieben von: ZFix
  • Kommentare: 3
Sony Ericsson Xperia Play Main Flex Cable Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

Keine Schätzung

Einleitung

How to change the Main Flex / Ribbon cable.


Please SUBSCRIBE to my channel ツ

  1. VyVSUiNhKAC5HW6s
    VyVSUiNhKAC5HW6s
    XVwrkWWckPEukIGb
    MyGpXfZCJ1NtcZjs

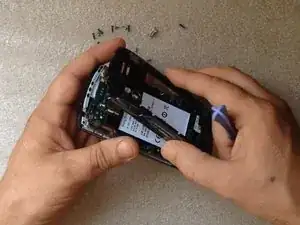

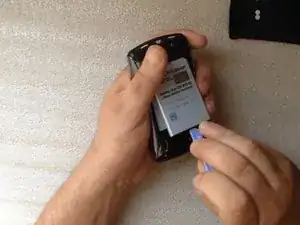

    • Remove the battery cover and the battery.

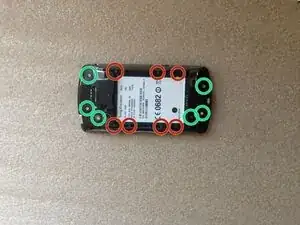

    • You have 6x silver screw and 7x black screw and remove the rear bezel.

  2. JKMQHxFEw6LAvNPo
    JKMQHxFEw6LAvNPo
    wfdSA5rPOyyA1UKZ

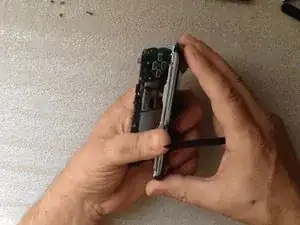

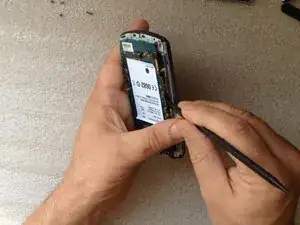

    • Now with a plastic tool disconnect the main flex cable. Be careful, near to the main flex cable connector there is many small elements.

    • Disconnect the gaming keyboard flex keyboard.

  3. n1gEKHBEGSVCUWNM
    n1gEKHBEGSVCUWNM
    hyECN2FjTk5OJYPr

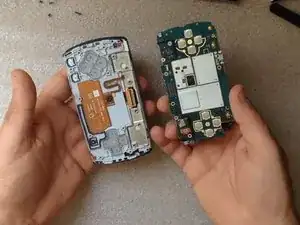

    • Remove the mother board and the gaming keyboard.

  4. uKUeF3xTv2EVDQ6Q
    uKUeF3xTv2EVDQ6Q
    T4EuVA3C5eY4YGkB
    aVVHpqDVdKP2Zcka

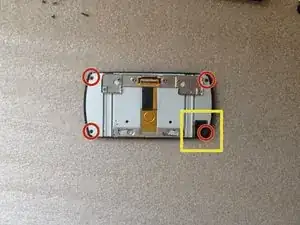

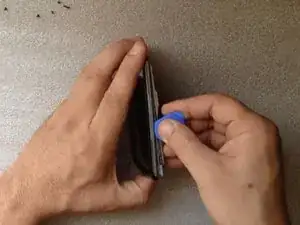

    • Unscrew the 4x screws.

    • Remove the black sticker.

    • Disconnect the touchscreen flex cable connector.

    • Now you can disassemble the front bezel.

  5. rtM6SKD3iPr42sfx
    rtM6SKD3iPr42sfx
    heabXcBFdCuYrNuQ

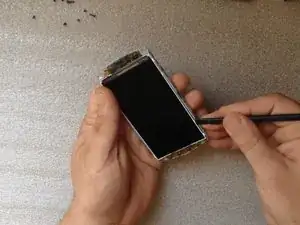

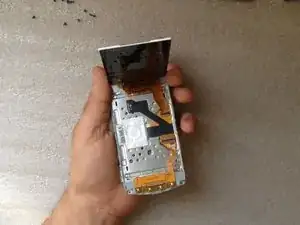

    • Use the thin end of a plastic tool to remove LCD Display and disconnect the flex cable.

  6. wdVNEEHP4PyBfIu5
    wdVNEEHP4PyBfIu5
    Z4JNxbCP5tJaiLTg
    UfrNnrAOFlhI3sSv

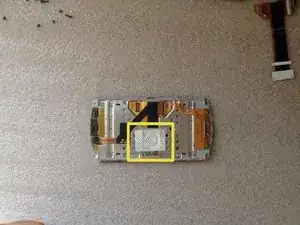

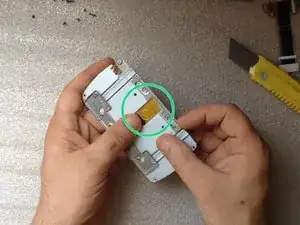

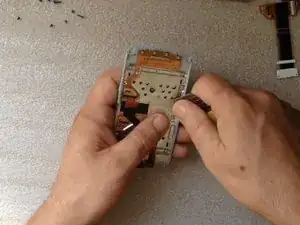

    • To release the ribbon cable peel off two patches.

  7. gq4xcGRvHRqaSrsf
    gq4xcGRvHRqaSrsf
    ZRtvfYwoKSXJ5iVo
    G2mCnqXQvdZpOXB5

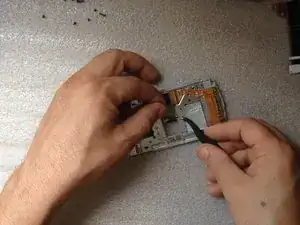

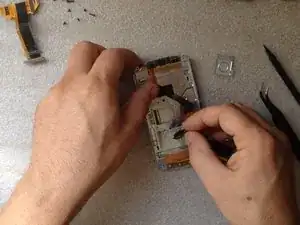

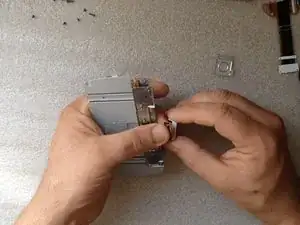

    • Now remove the small metal plate taped to the flex cable.

    • Remove the plastic plate from the back side of the flex cable connector.

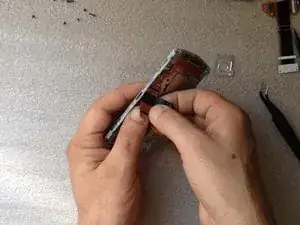

    • Bend the cable at an angle so you can push it down through the hole.

  8. f2lPfTVXZHxVebiv
    f2lPfTVXZHxVebiv
    eX5XvxQhAJVTVNsH
    CShwSEmIJHmyWWQn

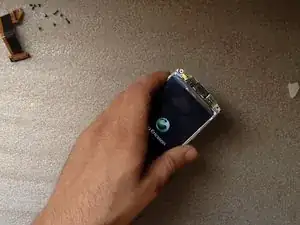

    • Use the same technique when you are installing the new Main Ribbon Cable.

    • I prefer to test the new spare part before the full assembly.

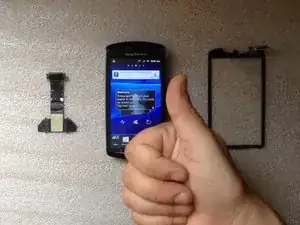

  9. tOjXcxEIiDcXNywT
Abschluss

To reassemble your device, follow these instructions in reverse order.
