Sony Ericsson Xperia Pro MK16A Camera Replacement

Geschrieben von: Sean Gallagher
  • Kommentare: 1
Sony Ericsson Xperia Pro MK16A Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide will help you replace the camera in your Sony Ericsson Experia Pro MK16A phone. Follow along to install a new camera in about half an hour.

  1. UOapxaQJDXJPUWds
    UOapxaQJDXJPUWds
    WyoAjPtqMIVN1irW
    JAnIu3ashcCOq2JF

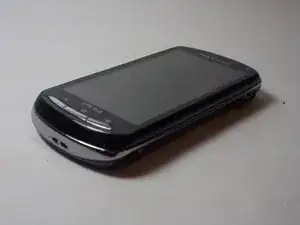

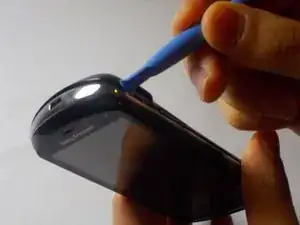

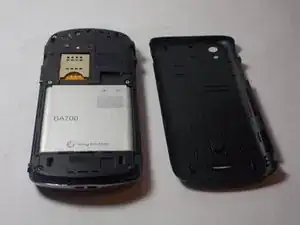

    • Use a plastic opening tool to get the back cover off your phone.

    • The plastic opener will work on any side, but be careful and pry gently.

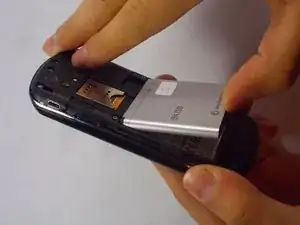

  2. tXDJE5eIJurEyQmY

    • Locate the battery in your phone.

    • Find the divot below the battery.

    • Use your thumb to lift the battery out of the phone.

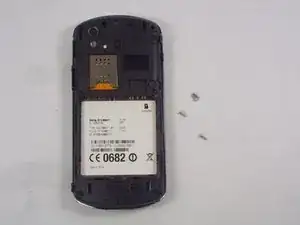

  3. AJ2gOIIO4QIC4GuH
    AJ2gOIIO4QIC4GuH
    ul5WClMTP1AjJViI
    6gdWhs32TMQwdoev

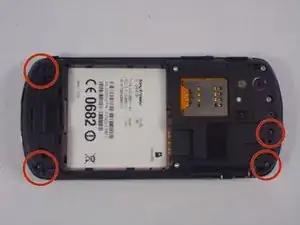

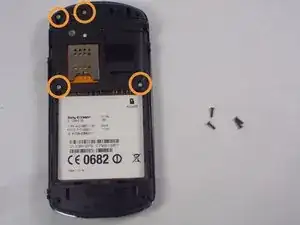

    • Remove the 4 black screws with the Phillips screwdriver.

    • Remove the 4 silver screws with the Torx screwdriver.

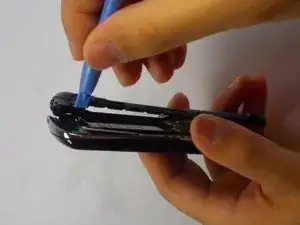

  4. cjrVkSJUfPxmgCZs

    • Insert the plastic opening tool in between the two halves of the case. Pry around the phone to detach the back case.

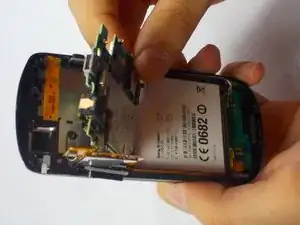

  5. DbQOhpmNrcw6c625
    DbQOhpmNrcw6c625
    Rb4xvTrmHqNqxHYL
    6an1nPf2TIZN1FRY

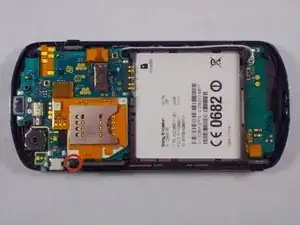

    • Remove the last screw that is connecting the logic board using the Phillips screwdriver.

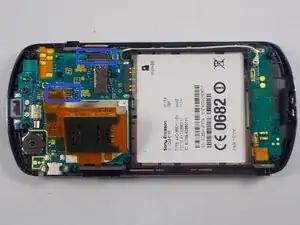

    • Undo the two ribbons.

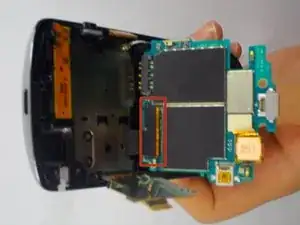

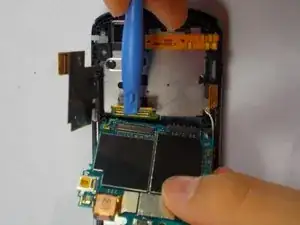

  6. 2nl5BXHX2EwX63ID
    2nl5BXHX2EwX63ID
    fXGBcRtUDclkGcA4
    cTRvWTORyOfBPAZY

    • Undo that last connector.

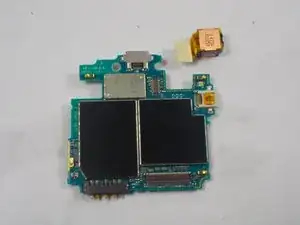

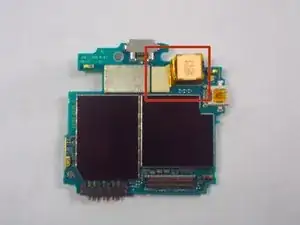

  7. xMJuJHKDF4TGCNfD
    xMJuJHKDF4TGCNfD
    YwYaahBwccuFtMZR

    • Lift the camera off of its connector on the logic board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
