Sony Ericsson Xperia Pro MK16A Power Button Replacement

Geschrieben von: John Emery
  • Kommentare: 0
Sony Ericsson Xperia Pro MK16A Power Button Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

Follow this guide to install a new power button in about 5 minutes.

  1. UOapxaQJDXJPUWds
    UOapxaQJDXJPUWds
    WyoAjPtqMIVN1irW
    JAnIu3ashcCOq2JF

    • Use a plastic opening tool to get the back cover off your phone.

    • The plastic opener will work on any side, but be careful and pry gently.

  2. tXDJE5eIJurEyQmY

    • Locate the battery in your phone.

    • Find the divot below the battery.

    • Use your thumb to lift the battery out of the phone.

  3. PhP1AqdwbltvoPOK
    PhP1AqdwbltvoPOK
    pkbl2iZLYiGlCto1
    d6WJUlHeZCXAOreR

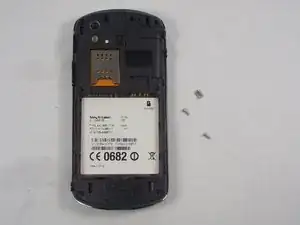

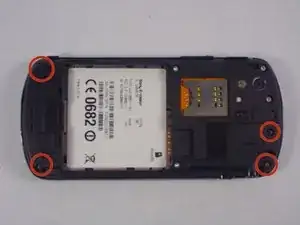

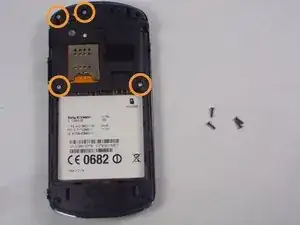

    • Remove the 4 black screws with the Phillips screwdriver.

    • Remove the 4 silver screws with the Torx screwdriver.

  4. pCEAqkbREx1ULJOr

    • Insert the plastic opening tool in between the two halves of the case. Pry around the phone to detach the back case.

  5. WGcYrRT5JXL6x24j
    WGcYrRT5JXL6x24j
    2SiGG2JvYvRxBHGY

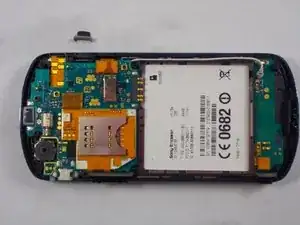

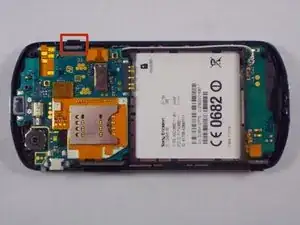

    • When the inner back cover is off, locate and remove the power button.

Abschluss

To reassemble your device, follow these instructions in reverse order.
