Sony Ericsson Xperia X10 LCD Display Replacement

Geschrieben von: ZFix
  • Kommentare: 5
Sony Ericsson Xperia X10 LCD Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

How to disassemble the phone and replace LCD Display.


Please SUBSCRIBE to my channel ツ

  1. ntv5gciJU1y1Fcor
    ntv5gciJU1y1Fcor
    AboSNcuVHEk2tCLK
    2Mx64w6qUOmN5vsH

    • Switch-off the phone.

    • Remove the battery.

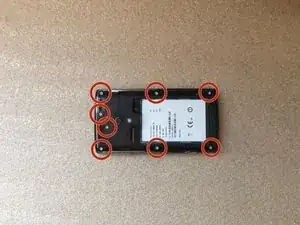

    • Unscrew 8x T6 Torx screws.

  2. 5NN2ocT1G2xLawFv
    5NN2ocT1G2xLawFv
    SOarcpGV3Ujup2Ef
    DBm1ReTy6TYpg61F

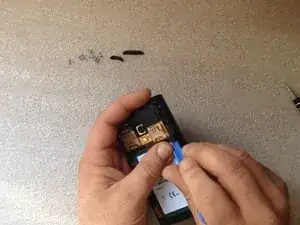

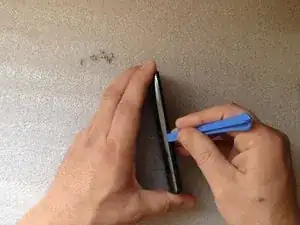

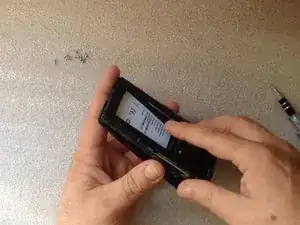

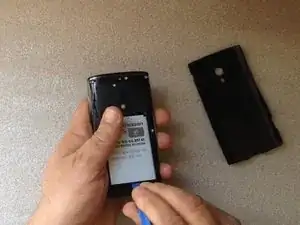

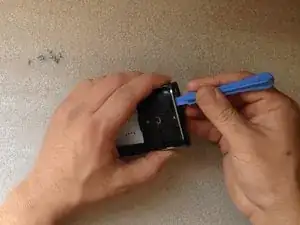

    • Use a Plastic Pry or other plastic tool to unhook the back housing / bezel and remove it.

    • Tip - try prying it open from the top and over to the side. It can be very tight if you are doing this for the first time. The volume rocker and camera button are not part of the housing, so try going around it.

  3. Wxfncq1WggRdUdcX
    Wxfncq1WggRdUdcX
    aH6wy4tYmwZDwk1Z
    iLBWB1xOAHanNI2J

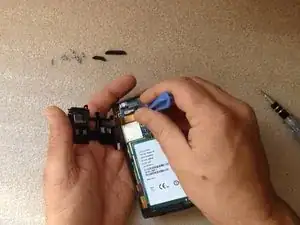

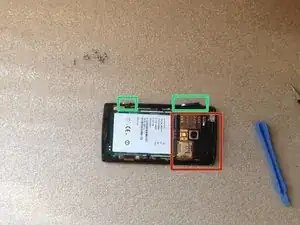

    • Remove the Volume Up/Down and Camera buttons.

    • Unhook the SIM & SD Card reader unit and disconnect the flex cable.

    Remove sim card and SD card tray beforehand to avoid damaged to them

    Sean Parrish -

  4. 5xB2h5qGbXFoewjN
    5xB2h5qGbXFoewjN
    AvPvst2b1imGhYsT
    YhtDRWpNvmjCZW5W

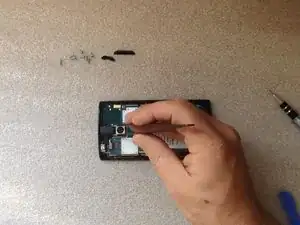

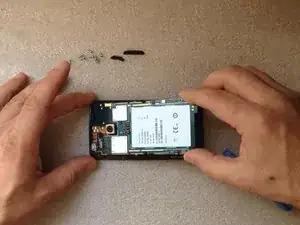

    • Remove the Audio jack connector.

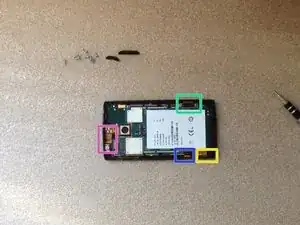

    • Disconnect 4x flex cables:

    • LCD Display

    • Menu buttons

    • Touchscreen

    • Earpiece, Volume & Power On buttons

    • Carefully remove the mother board.

    • Please SUBSCRIBE to my channel ツ

    before you can remove the mainboard, there are two nozzles at both sides of it, you have to unhook !!

    blablablabla -

    He's right edit that in

    Sean Parrish -

  5. kX4PoqN1BCCIuuCh
    kX4PoqN1BCCIuuCh
    R21udRCRfBeo1xKd
    kViOoZslJRRtGDvj

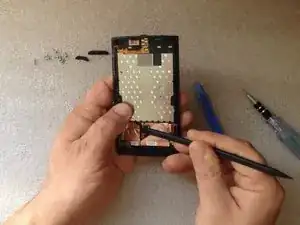

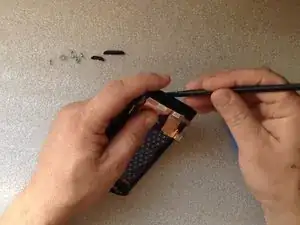

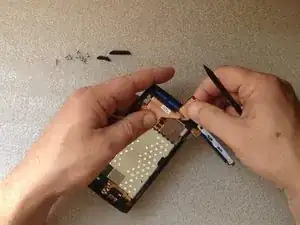

    • Unstuck the Touchscreen flex cable from the LCD Display Frame.

    • Use only plastic tools for this operation to avoid damage to the cable.

    • You can use hot air to make the separation easier.

    • Disassemble the Home buttons flex cable & Plastic Bracket to release the Touchscreen Flex cable.

    you have to disassemble the Home buttons flex cable & Plastic Bracket first

    blablablabla -

    Not really you work around them if you want to

    Sean Parrish -

  6. AqUnLpaVS5Bqn1UQ
    AqUnLpaVS5Bqn1UQ
    xPLATUecjNcFqTON
    hAOdxdL1fsRrHIn1

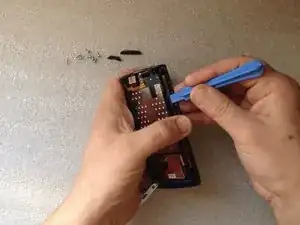

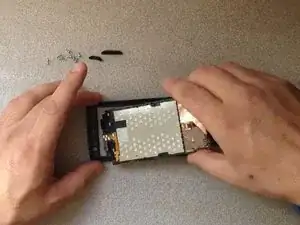

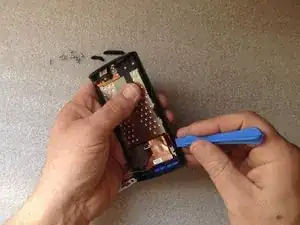

    • Use a Plastic Pry or other plastic tool to separate the LCD Display with Frame from the Front Touchscreen Housing.

    • Do this carefully.

  7. egoqNDQN1nUdX4BW
    egoqNDQN1nUdX4BW
    fHlfloNApVjJxXDS
    YTTNOvWqKmegxs2e

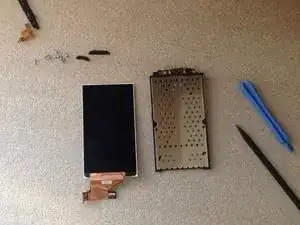

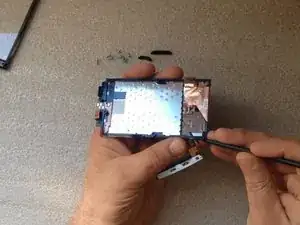

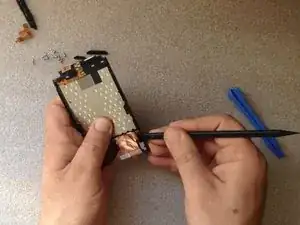

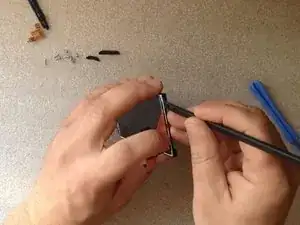

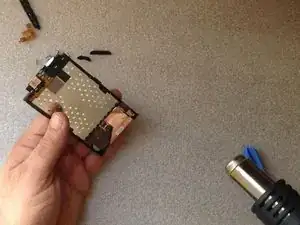

    • Remove the Menu / Camera buttons flex cable.

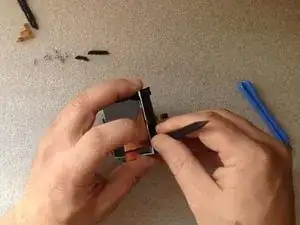

    • Use again hot air and carefully unstick the LCD Display flex cable from the frame.

  8. NYNMGThGQgmWsSOy
    NYNMGThGQgmWsSOy
    fFQdBZrm4oQJsTHG
    1okPoMsPBS3ORPFJ
Abschluss

To reassemble your device, follow these instructions in reverse order.
