Sony Ericsson s710a SIM Card Replacement

Geschrieben von: Alexander
  • Kommentare: 0
Sony Ericsson s710a SIM Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

This is a GSM phone originally introduced by AT&T. The SIM card will likely be an AT&T card; however, when in foreign countries, other SIM cards can be inserted into the phone for compatibility with foreign carriers.

  1. dBG2qSUiLVKhNOkJ

    • Slide the battery cover off by pushing it away from the camera side of the device.

    • This may require a good amount of force.

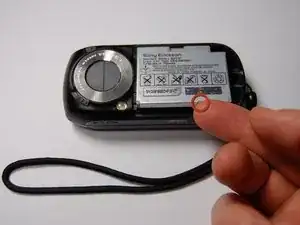

  2. M6GWuac3nBBcSPWs

    • Next remove the battery

    • Lift it out of the phone using the tab on the battery (marked in the image)

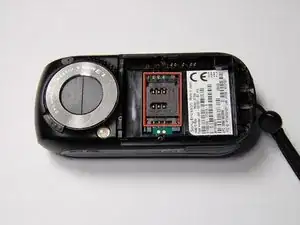

  3. mku5AiENMYFneMML

    • The SIM card holder is now exposed (marked in image).

    • This will likely already have an existing SIM card in it if the phone has been previously used.

    • To open this, slide the holder upward (assuming the same orientation as in the image)

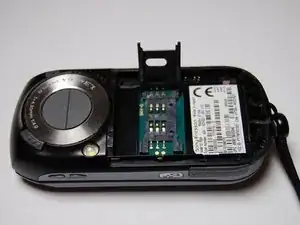

  4. XRnwvXLUl2Eiu6Ao

    • The holder will then hinge open.

    • You are now able to insert a new SIM card.

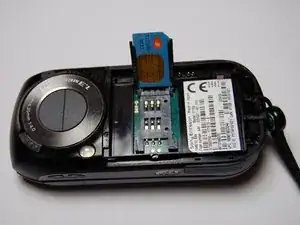

  5. SUXQgNAyx4lsObF2

    • Insert the new SIM card in the orientation shown.

    • This is important, as the phone will not work if the metal contacts on the card are not properly aligned with the contacts on the phone.

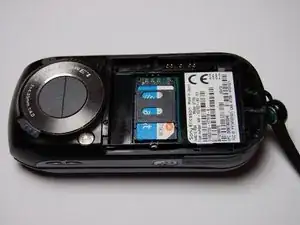

  6. ArwDuWUP4BvyZNB6

    • Now hinge the SIM card holder down so that it lays flat in the phone.

    • Slide the plastic holder downwards to lock it in place.

    • Now the battery and cover can be put back in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
