Sony Ericsson xPeria Active Speaker Replacement

Geschrieben von: Daniel
  • Kommentare: 0
Sony Ericsson xPeria Active Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

30 Minuten

Einleitung

The speaker of a phone can go bad for a number of reasons. The most common reason for a faulty speaker is water damage. However, a speaker may go bad due to a faulty connection or faulty manufacturing.

  1. wvsQT3MHV3bZjdRT
    wvsQT3MHV3bZjdRT
    UNxYNDIVMwrFq4Pr
    gbJJJ3BjSST4Felq

    • Open the flaps and remove the back cover using the plastic opening device.

  2. odLCBBAA1anpFM53
    odLCBBAA1anpFM53
    ryTMG5WHKeNPpCkM

    • Remove the battery shield with the plastic opening device.

  3. UpS3tPTRQwWfmhDd
    UpS3tPTRQwWfmhDd
    NJfqUVAjLGxtL3Yu

    • Remove the battery.

  4. MEEZfihYuXQASEfH

    • Unscrew the 5mm screws with the T5 head.

    • Unscrew the 6mm screw with the T6 head.

  5. MDqucJaGs1gcfKDh
    MDqucJaGs1gcfKDh
    LVVoWu1vNuZ1o4Hj

    • Remove the black cover with the plastic opening tool.

    • Remove the headphone jack from its slot.

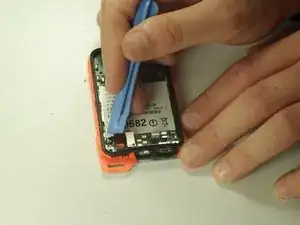

  6. AWLgh1hUm3KGRPfw
    AWLgh1hUm3KGRPfw
    1xQCmOyujQgTjv3P

    • Carefully pry the power cable away from the motherboard.

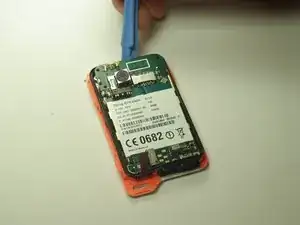

  7. Akb6P55rIja5Q1Cy

    • Pry the motherboard out of the case.

  8. CAEc6LvDBFEc2yCH

    • Remove the power cable from the backside of the motherboard.

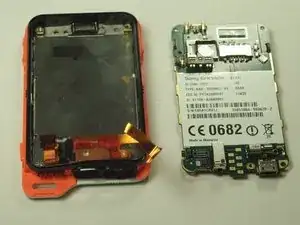

  9. HVJMwo1ZhShdDoVv

    • The speaker can be seen in the top middle area on the reverse of the screen.

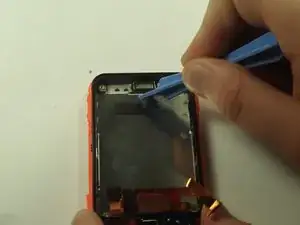

  10. OKRWN2NvG1dVKLCZ

    • Use the plastic opening tool to carefully pry the speaker away from the phone.

Abschluss

To reassemble your device, follow these instructions in reverse order.
