This guide will outline how to disassemble and reattach or replace the Sony FDL-220R Watchman antenna. Steps include basic disassembly of the Sony FDL-220R Watchman, and tools include a Phillips #00 Screwdriver and a Spudger.
Werkzeuge
-
-

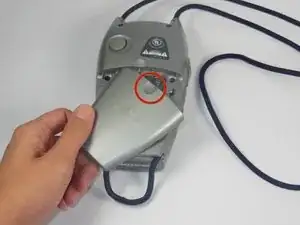

Press down on the textured area and push towards the bottom of the device.
-

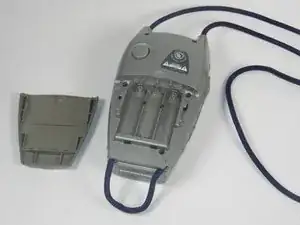

Gently remove the battery cover.
-
Remove the three AA batteries.
-
-
-

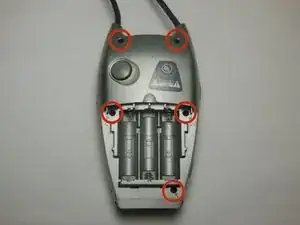

Locate the five 5x11mm screws surrounding the battery compartment.
-

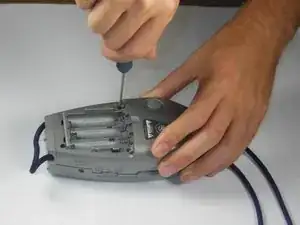

Remove screws with a Phillips #00 screwdriver.
-
-
-
Grasp the entire back half of the Watchman's casing.
-
Snap off the casing from the bottom of the device.
-

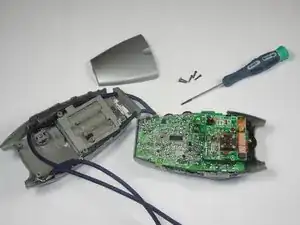

Gently pull off entire back casing.
-
-
-

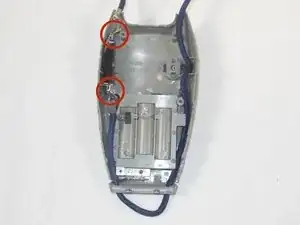

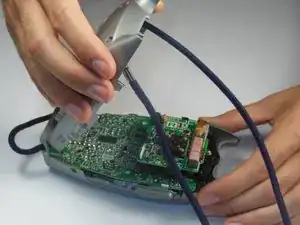

Locate the two metal tabs which are meant to hold the antenna in place.
-

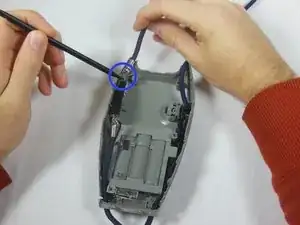

Pry back the metal tabs with a spudger.
-

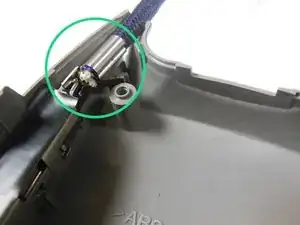

Hook the antenna into the metal tab.
-
Ensure that the antenna is fully enclosed in the metal tab.
-
To reassemble your device, follow these instructions in reverse order.
