This guide will outline how to replace the Sony FDL-220R Watchman batteries and clean the battery contacts if they are corroded. Steps include basic disassembly of the Sony FDL-220R Watchman, and tools include a Phillips #00 Screwdriver and a solution of warm water and baking soda.
Werkzeuge
-
-

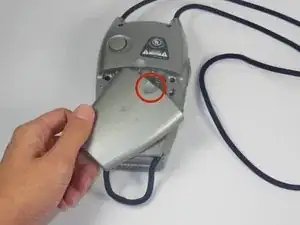

Press down on the textured area and push towards the bottom of the device.
-

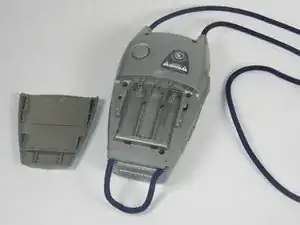

Gently remove the battery cover.
-
Remove the three AA batteries.
-
-
-

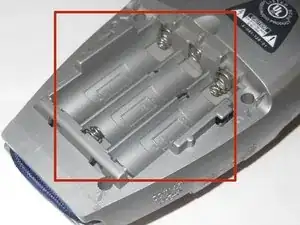

Inspect battery contacts for any signs of damage.
-
Clean battery contacts with a solution of warm water and baking soda if there is corrosion.
-
-
-

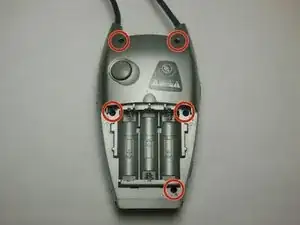

Locate the five 5x11mm screws surrounding the battery compartment.
-

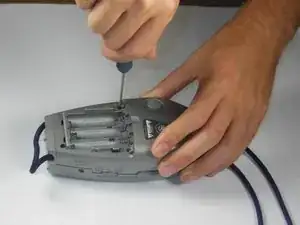

Remove screws with a Phillips #00 screwdriver.
-
-
-

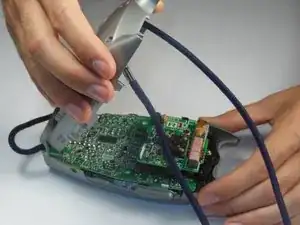

Grasp the entire back half of the Watchman's casing.
-
Snap off casing from the bottom of the device.
-

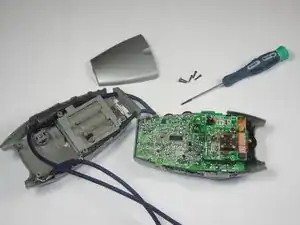

Gently pull off entire back casing.
-
-
-

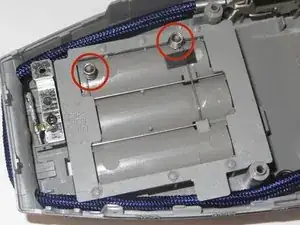

Inspect the two small springs on the back of the battery compartment.
-
Clean contacts with a solution of warm water and baking soda if there is corrosion.
-
To reassemble your device, follow these instructions in reverse order.
