Sony Handycam CCD-TR5 Tape Transport Unit Replacement

Geschrieben von: Emma
  • Kommentare: 0
Sony Handycam CCD-TR5 Tape Transport Unit Replacement

Schwierigkeitsgrad

Difficult

Schritte

10

Zeitaufwand

20 - 30 Minuten

Einleitung

In order to keep your device in working order, the tape transport unit may need to be replaced.

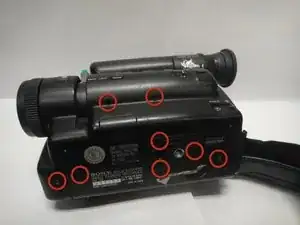

  1. oGtKJJU1QXBS6MOk

    • Remove the eight Phillips #00 screws. There are six screws on the bottom of the camera and two screws beneath the back light button.

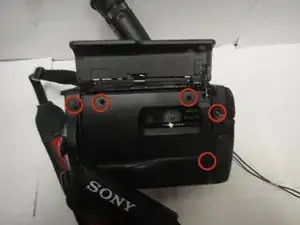

  2. 25clBwS4JJOY1vNh

    • Remove the five Phillips #00 cassette side screws.

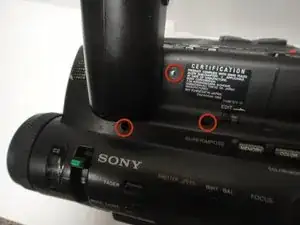

  3. vE2MVSQrExlly6JO

    • Remove the three Phillips #00 screws located on the top of the lens side cover.

  4. PRhKUICArVLOBvgs

    • Remove the Phillips #00 screw holding the microphone on.

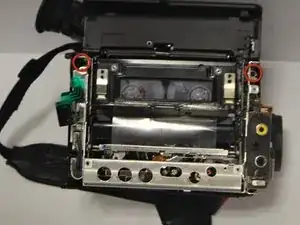

  5. fDfXKi4GERIRHWZx

    • Remove the two Phillips #00 screws from lens side cover.

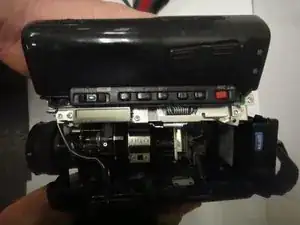

  6. arFEdn2HRIFD1yfH

    • Slide the lens side cover away from camera.

  7. dEUZc6dx4ALF4xLP

    • Remove the Phillips #00 screw from the tape transport slider.

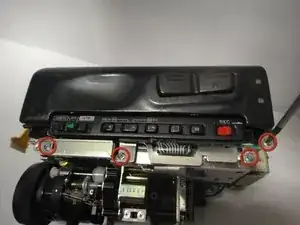

  8. UXAEJNEBMLYSPk6S

    • Remove the four Phillips #00 screws located on the top of the camera.

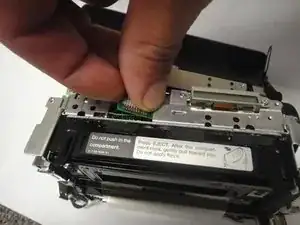

  9. G16uJT2plGLQMXgp

    • Remove the electrical connector from camera.

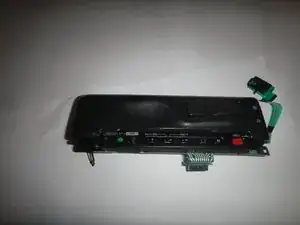

  10. F1BCs6SRRkJrheFC

    • The tape transport unit is now free from the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
