Sony Handycam CCD-TR5 Video/Audio Input/Output Replacement

Geschrieben von: Aaron Hovde
  • Kommentare: 2
Sony Handycam CCD-TR5 Video/Audio Input/Output Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

The Audio and video connectors are important aspects for the Sony Handycam as they are used for carrying audio and video signals and allow the camera to output audio and visual.

  1. mc2aOERDPayrCFPG

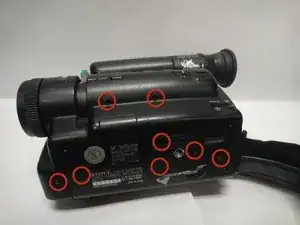

    • Use a Phillips #00 screwdriver to remove the eight screws located on the bottom of the camera.

  2. y1UQLxkXuMmD6GNb

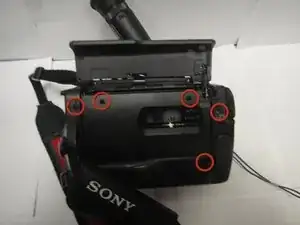

    • Use a Phillips #00 screwdriver to remove the five cassette side cover screws.

  3. PLlxVTQFE4pdnmYJ

    • Use a Phillips #00 screwdriver to remove the two top microphone screws.

    • Remove the microphone and cassette side cover.

  4. QH1cI1PC4RfYEbrb

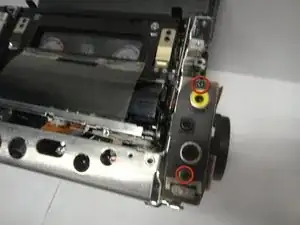

    • Use a Phillips #00 screwdriver to remove the two screws from the Input/Output.

    Is this a problem why I'm not hearing sound from my tapes when I go to play them back

    Kelly -

  5. HoOoQSFrPPLrO6pA
    HoOoQSFrPPLrO6pA
    KdCXtFrWLtWAVnPF

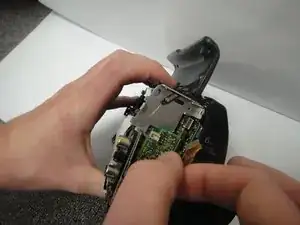

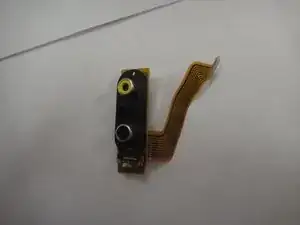

    • Gently remove the Input/Output plug from the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
