Sony Handycam DCR-DVD103 Outer Cover Replacement

On the back of the camera beneath the viewfinder, locate the battery pack.

Press the small button.

Slide the switch forward.

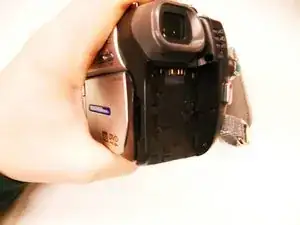

Remove the battery from the camera.

Using a #00 Phillips screwdriver, remove the six 4.5 mm screws from the camera's bottom.

Remove the three 4.5 mm screws beneath the battery.

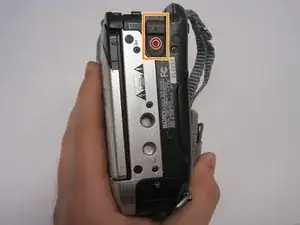

Remove the 2.9 mm screw from the right corner.

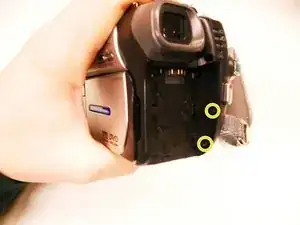

Remove the two 4.5 mm screws from the battery's right wall.

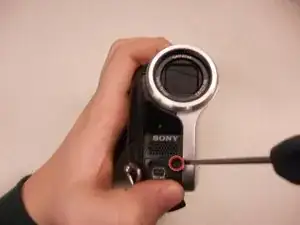

Remove the 4.5 mm screw under the output flap on the front of the camera below the lens.

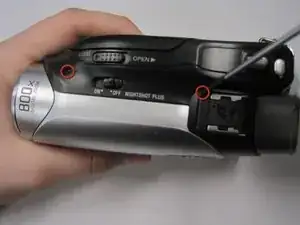

Remove the two 4.5 mm screws at the top of the camera.

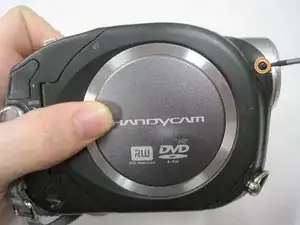

Remove the 4.5 mm screw from the disk side of the camera (next to the lens).

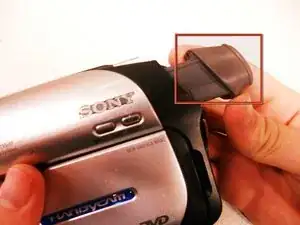

Extend the gray viewfinder, then gently remove the black plastic casing.

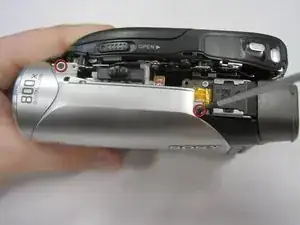

Remove the two 2.9 mm screws under the black plastic casing.

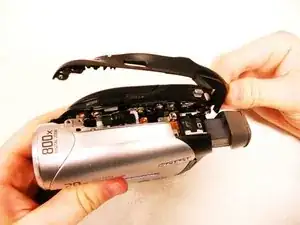

Gently pull apart the outer silver case and screen.

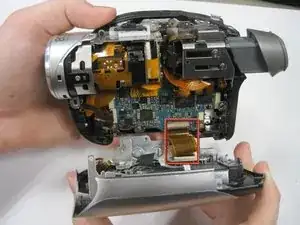

Remove the copper wire strip to detach the case from the camera.
