Sony Handycam DCR-SR 47 Flex Cable Replacement

Remove the battery.

Use Philips #000 screwdriver to remove the 3mm screw under the battery

Using the Phillips #000 screwdriver, remove all 6 of the 3mm screws located on the side of the camera.

Using the Phillips #000 tool, remove the three 3mm screws from under the LCD screen

Using the Phillips #000 screwdriver, remove the one 3mm screw on the back of the camera

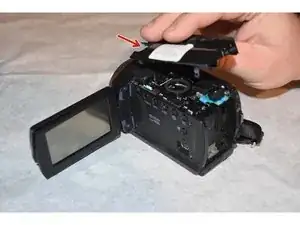

Pull away the back shell of the camera, exposing the hard drive.

Gently pull the flex cable away from the hard drive. It should pop-off with minimal effort.

Once removing the flex cable, remove the plastic guard from the side of the hard drive.

Using the Phillips #000 screwdriver, remove the four screws from the housing under the hard drive.

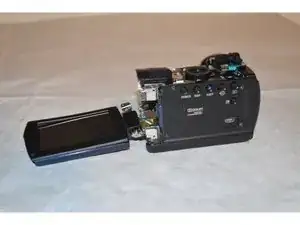

Remove the top plastic housing of the camera. All screws attaching the housing have previously been removed.

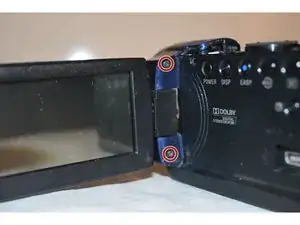

Using the Phillips #000 screwdriver, remove the two 3mm screws from the LCD Screen connector.

Remove the two 3mm screws that were exposed through the previous image

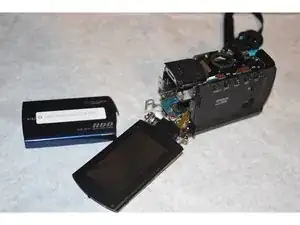

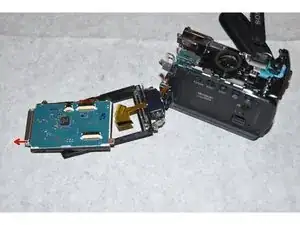

Carefully detach the LCD Screen from the rest of the camera.

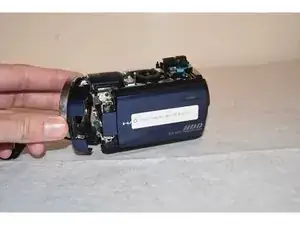

Carefully remove the lens covering from the camera in order to access the internal components

Using the plastic opening tool, carefully separate the LCD Screen from the back covering

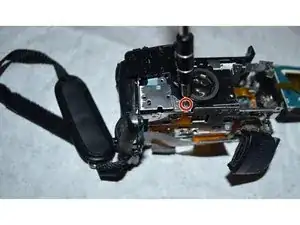

Using the Philips #000 screwdriver, remove the single 3mm screw from the top of the camera. This removal will allow the microphone port covering to be removed

Using the Phillips #000 screwdriver, remove the single 2mm screw from under the microphone port covering

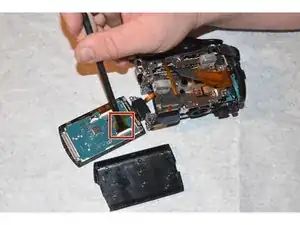

Using the spudger, gently remove the smaller flex cable connector from the LCD screen.

*You may also gently tug the flex cable using fingers if no opening tool is available*

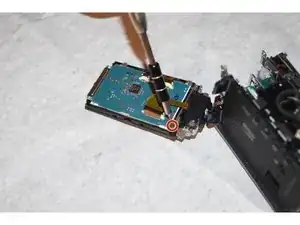

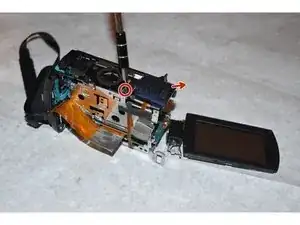

Using the Phillips #000 screwdriver, remove the one 3mm screw connecting the LCD screen from the housing.

Using the Phillips #000 screwdriver, remove the one 3mm screw from the speaker port

Detach the speaker and side of camera from the internal components

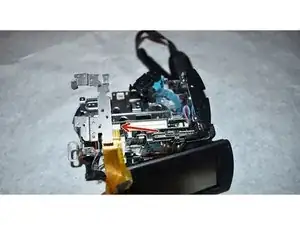

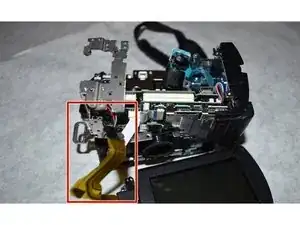

Gently pull the flex cable out of the connector piece

*a spudger may be used if necessary*

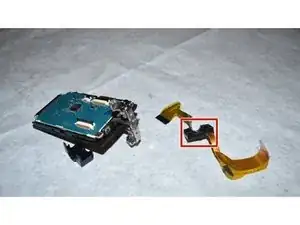

After removing the flex cable from the internal components, separate the LCD pivot arm housing from the flex cable using a spudger.

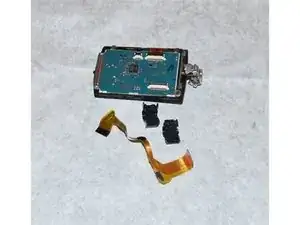

The old flex cable is now free and able to be switched with the new one.
