Can't record or capture moments with a cracked lens? This guide will take you through removing the outer casing and removal and replacement of the lens module.

  1. krxBJTBqGmakCF2O
    • Wash and dry your hands, then put on a properly grounded anti-static wrist strap, before handling internal electronic components. To ground the wrist strap, attach it to the metal chassis of a plugged-in three prong power supply, of a computer for example.

    • Unfasten the hand strap.

    • Remove the battery.

  2. md3GSCHAGXAXtmxf
    md3GSCHAGXAXtmxf
    P241MHTyOjjJTYHx

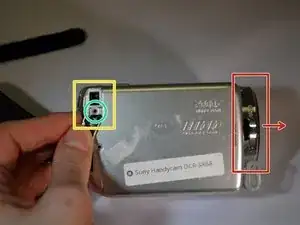

    • Place device on left side with front lens facing right.

    • Using a JIS size #00 precision Phillips screwdriver, unscrew the left middle 3mm Phillips screw.

    • Open the "DC IN" plastic tab (Second 3mm Phillips screw is revealed).

    • Unscrew the second 3mm Phillips screw.

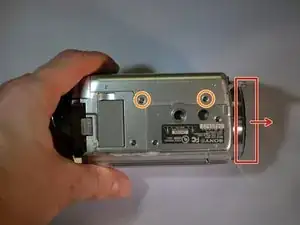

  3. nauxsC5ATRsZjIBK
    • Turn device over onto its top with the front lens facing right.

    • Unscrew the top left and top right 3mm Philips screws.

    • The right side case panel is now unfastened (the case panel facing up in the photo).

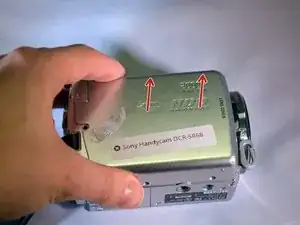

  4. 5OBv1Q6qPRLfAUej
    5OBv1Q6qPRLfAUej
    Mvtm6vEyuHgyOIrr

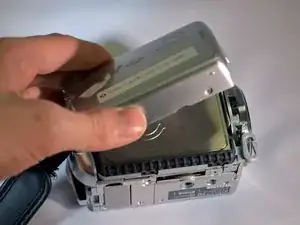

    • Remove the right side case panel by pulling up.

    • The Hard Drive (HDD) is now revealed.

    I need a hard drive

    Rajib Sahoo -

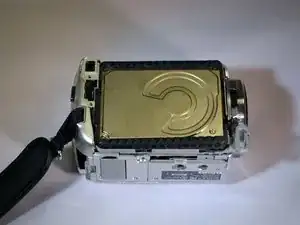

  5. m1UUaIFRY3JULUIe
    m1UUaIFRY3JULUIe
    fxg3ZPfm1KTVOEwL
    jg4RkuSthod1iUcZ

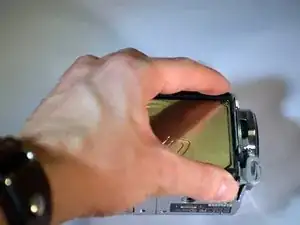

    • Using your fingers, lift the HDD from its right end, pivoting on its left end.

    • The HDD ribbon wire is now exposed.

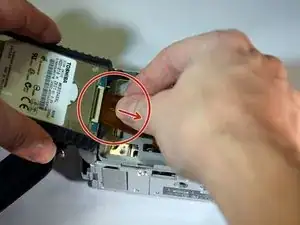

  6. QnCtIMk1sgQAHfHU
    QnCtIMk1sgQAHfHU
    AsqAraXGFIiI5b2X
    • While securely holding the HDD in your left hand, use the soft pad of your right hand fingers to gently pull the ribbon wire out of its socket, toward your right.

    • The HDD is now free from the device.

    • Replace HDD.

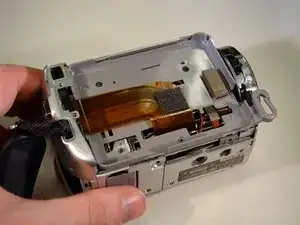

  7. FcFBwjqUVa2jhKYm
    • Follow steps 1-6 on HDD removal.

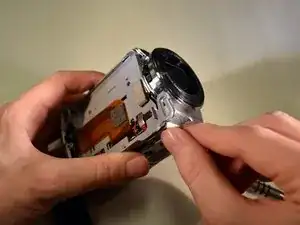

  8. paMDOCnAZiKbGqN1
    paMDOCnAZiKbGqN1
    oMUjeS4oI25Do6No

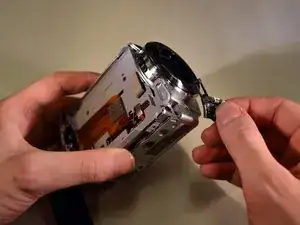

    • Use your fingers to remove the A/V tab.

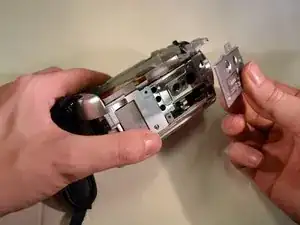

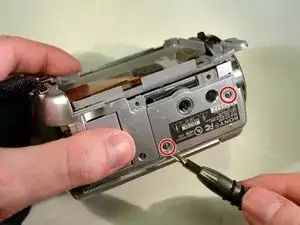

  9. fXMlxDdYY6GpjIMS
    fXMlxDdYY6GpjIMS
    PEe3Q3EUUinLMSxr
    FpWZpIE5T2sRWRWX

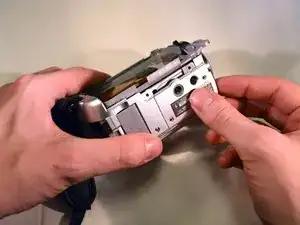

    • On the bottom of the device, remove the right and middle bottom 3mm Philips screws.

    • Remove the panel.

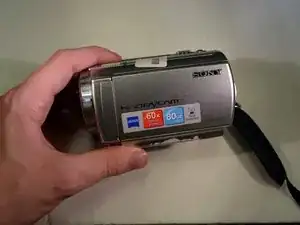

  10. qvTQ6vjbCPJOnET4
    qvTQ6vjbCPJOnET4
    D6hFleuwG6NJ4LJm

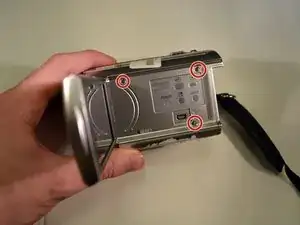

    • On the left side of the device, remove all visible 3mm Philips screws.

  11. PAyTrZXruFtd2AGl
    PAyTrZXruFtd2AGl
    TuWKhpNRNIQdnyyi

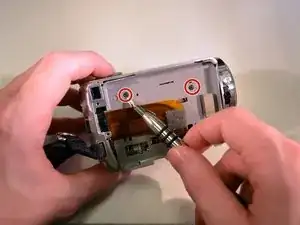

    • On the right side of the device, remove the two black 3mm Philips screws.

    • The grey tray is now free.

    • Remove the grey tray by lifting out and away.

  12. YwCbEVAVwgHJBa6l
    YwCbEVAVwgHJBa6l
    o1INlFwoLfxiMdch

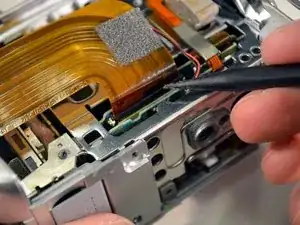

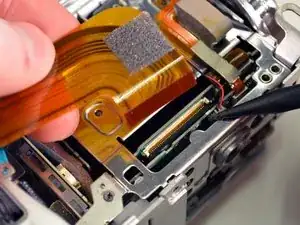

    • Using the pointed black spudger, carefully open the little black clasp on the large ribbon wire port.

    • These clasps are known to be fragile.

    • On reassembly, this wire and clasp can be troublesome to reinstall.New line.

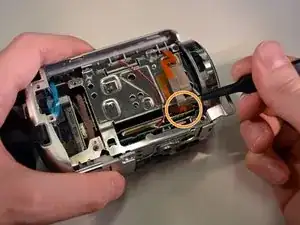

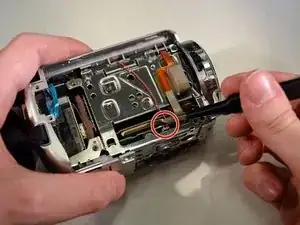

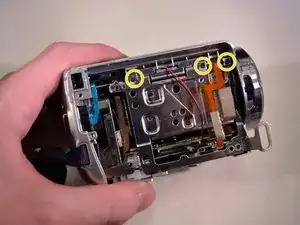

  13. mlaJiNwcutViGRXH
    mlaJiNwcutViGRXH
    VlX5NMR4nJMorQFf
    ROId5XBQFCW6etJF
    • Use the blunt tweezers to unplug the red and black wire by pulling out and away.

    • Unplug the small ribbon wire.

    • Unscrew the two right three 3mm Philips screws.

  14. Uqh44bsoTYwhIlTH

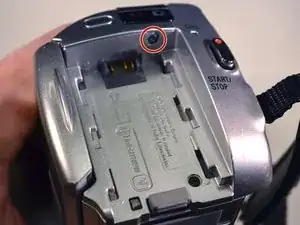

    • On the back of the device, remove the top black 3mm Philips screw.

    • The top of the device is now free.

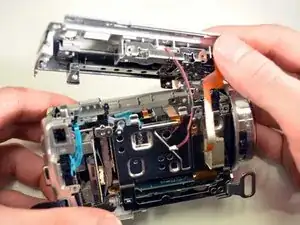

  15. 4j1MLvsy1BkBaYf2
    4j1MLvsy1BkBaYf2
    EXOEFSSniOIUWR2g

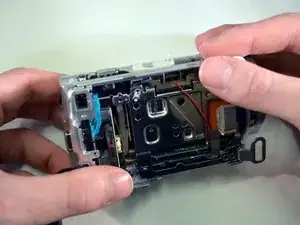

    • Remove the top of the device by lifting up and away.

    • Set aside.

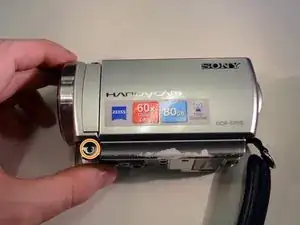

  16. 1MOlYGxTbkY5gYci
    1MOlYGxTbkY5gYci
    Ap2NXXeDxOFlWdHN

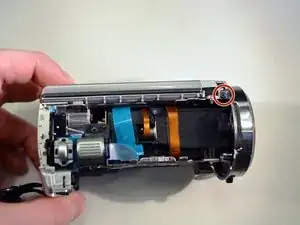

    • On the top of the device, unscrew the top right 3mm Philips screw.

    • On the left side of the device, unscrew the bottom left 3mm Philips screw.

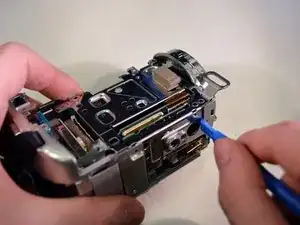

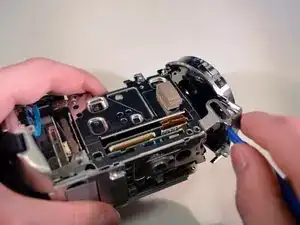

  17. A1ErVeAJVpXGP5JM
    A1ErVeAJVpXGP5JM
    MDLQdKe6ET5sYgjT
    • Use a plastic opening tool to pop off the shutter assembly.

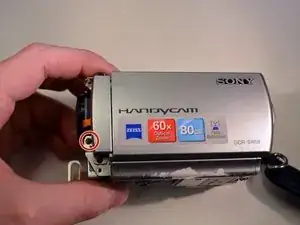

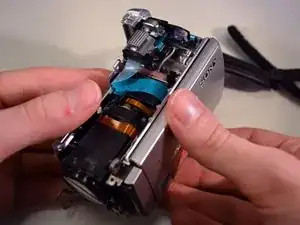

  18. uDV1DUBXtdBZXcCM
    uDV1DUBXtdBZXcCM
    tHVYSlOfaM6DWJjX
    CNCjts6y4TLenxng
    • On the left side of the device, unscrew the left middle 3mm Philips screw.

    • Carefully pivot the loose left side of the device until the ribbon wires are fully exposed.

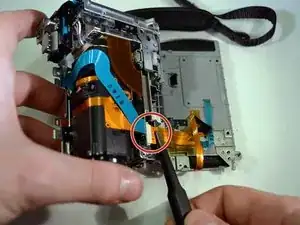

  19. NiqTJD3FFSeEYxTM
    NiqTJD3FFSeEYxTM
    vZdoU6ijbQpdyEDC
    cMc4YYRjax3LPSYi

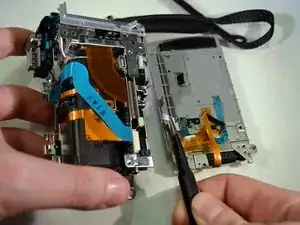

    • Use the blunt tweezers to unplug the small orange ribbon wire.

    • Unplug the small white ribbon wire.

    • The left side of the device is now free.

    • Set aside.

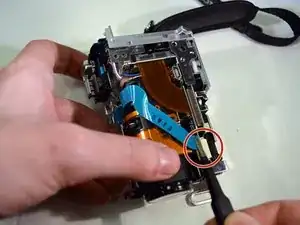

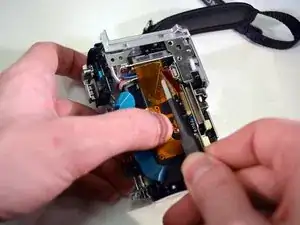

  20. qP4KEOegVQgdvnZ6
    qP4KEOegVQgdvnZ6
    eZsCSNcwWRSdZL3E
    1NXQk2swlZpJKQYQ

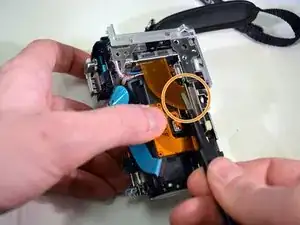

    • Use the blunt tweezers to unplug the blue ribbon wire.

    • Unplug the orange ribbon wire.

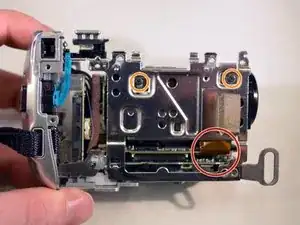

  21. 5D3O1fFRSvJvI1Tg
    • Use the blunt tweezers to unplug the orange ribbon wire.

    • Remove the top two black 3mm Philips screws.

  22. Z1JNdBTFO6Fq5UeU
    Z1JNdBTFO6Fq5UeU
    pxeaViAEtrugZYYq

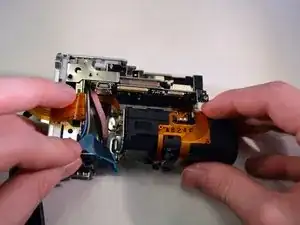

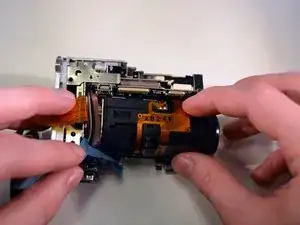

    • The lens module is connected to the device by an adhesive foam backing.

    • Pull the lens module away from the adhesive foam backing until it's releases.

    • Don't pull it too far as there is one more ribbon wire connected to it.

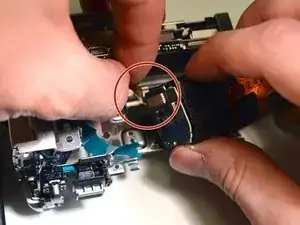

  23. o1yyCnPaPLjMmLym
    • Unplug this ribbon wire with your fingers or tweezers.

    • This wire can be tricky to get to.

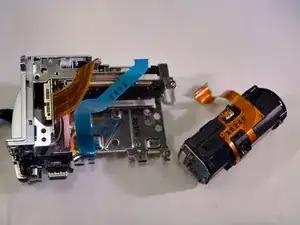

  24. KKBA3DpJWZLgYTTx
    • With the old lens module removed, the new one can be installed.

Abschluss

To reassemble your device, follow these instructions in reverse order in addition to the HDD replacement guide.
