Sony Handycam DCR-SR68 Hard Disk Drive (HDD) Replacement

Geschrieben von: Michael Smith
  • Kommentare: 8
Sony Handycam DCR-SR68 Hard Disk Drive (HDD) Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

3 Minuten

Einleitung

In this guide we well be removing the internal HDD of the DCR-SR68 Handycam and replacing it with a new one. This will involve removing some of the exterior casing to access the HDD.

  1. ETfVfeiCXtmHREVV

    • Undo Hand Strap

    • Remove battery.

    • Get the iFixit screwdriver and remove the extension.

    • Use a JO Philips head bit.

  2. Nv41afqahR1E3QIH
    Nv41afqahR1E3QIH
    sVmMintOyT3mImNn

    • Place device on left side with lens facing right.

    • Using the screwdriver, unscrew the left middle 3mm Philips screw.

    • Open the "DC IN" tabe. (Second 3mm Philips screw is revealed)

    • Unscrew this screw.

  3. 6GjMQSKFu3OOAGNl

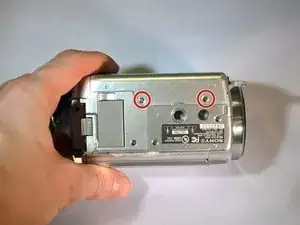

    • Turn device over onto it's top with the lens facing right.

    • Unscrew the top left and top right 3mm Philips screws.

    • The right side casing is now free.

  4. AXeCYogTTML6c4FD
    AXeCYogTTML6c4FD
    CmA5ZeTdAsPp15wg

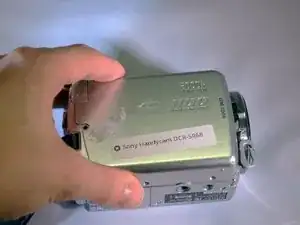

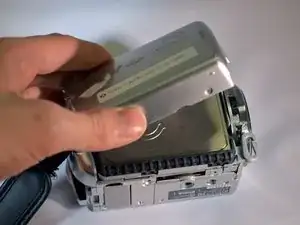

    • Remove the right side casing by pulling up and away.

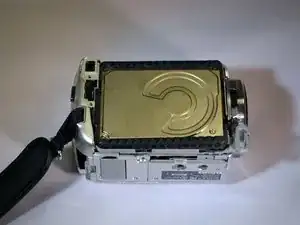

    • The HDD is now revealed.

  5. EPlDACdNshiHsi24
    EPlDACdNshiHsi24
    nfZ3MURHZXVCFGiB
    ZdSsHWosDXILHbk5

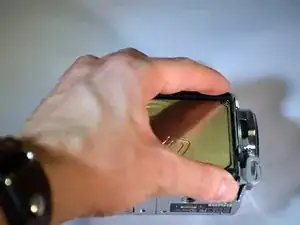

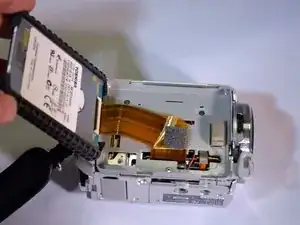

    • Using your fingers, lift the HDD from it's right end, pivoting on it's left end.

    • The HDD ribbon wire is now exposed.

  6. TPQDbYQPmLFOZFpS
    TPQDbYQPmLFOZFpS
    61ZUoAUWOKCteXan

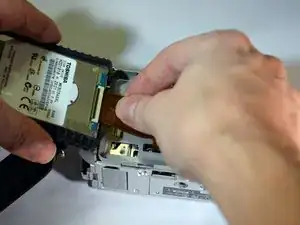

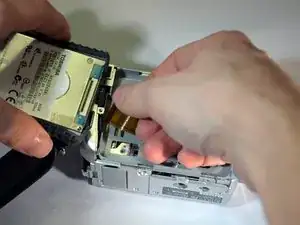

    • Using your fingers, gently pull the ribbon wire out of it's socket.

    • The HDD is now free from the device.

  7. S2Ymxqt2GZPoO3Cf
    S2Ymxqt2GZPoO3Cf
    nuQYRKZIyAMfJnBN

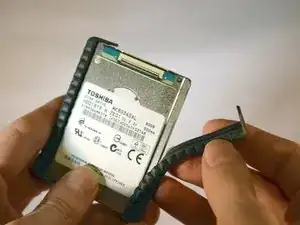

    • Using your fingers, pull the black rubber bumpers off of the HDD.

    • Set the old HDD aside.

    Hi.

    Easy to replace!

    Where to find a new hdd?

    bernard fradin -

Abschluss

To reassemble your device, follow these instructions in reverse order.
