Sony Handycam FDR-AX33 Zoom and Photo Button Replacement

Geschrieben von: Jacob Andreatta
  • Kommentare: 0
Sony Handycam FDR-AX33 Zoom and Photo Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 - 30 Minuten

Einleitung

This guide will help you if your zoom button or the photo button is failing to function properly. You will need to be cautious throughout the procedure as the buttons are very fragile.

  1. 2MNqH4KQCYVyAIBJ
    2MNqH4KQCYVyAIBJ
    ai5VEihaDG4g1M1W

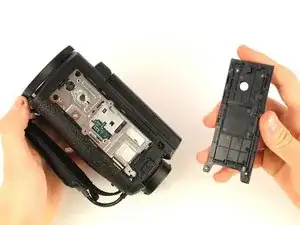

    • Remove the battery by pushing the latch towards the body of the camera. Push the battery down and pull it out.

    • Remove the six black 4 mm Phillips #00 screws from the bottom panel of the camera.

    • Pull off the bottom panel. It may be difficult, but tugging on it shouldn't cause harm to yourself or the device.

    • Be sure to un-velcro the handle strap.

  2. SX4BIkKmakQtFKsr
    SX4BIkKmakQtFKsr
    XLeXB5HebL1RYJSN
    kOkC45cklh5WEwwe

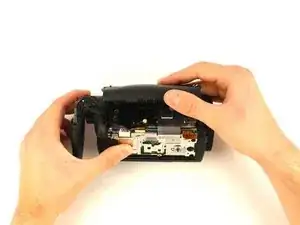

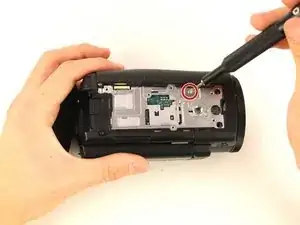

    • Remove the 3 mm Phillips #00 screw from the bottom of the camera.

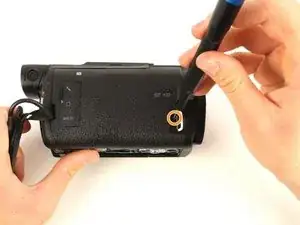

    • Remove the 4 mm Phillips #00 screw from the right panel.

    • Pull the right panel off. Again, it might be difficult, but pulling hard shouldn't harm you or the camera.

    • You may have to use the opening tool to remove this panel.

  3. YmkCLNbhMjGMZIWh
    YmkCLNbhMjGMZIWh
    TRrbbyn6unKDr2Xg

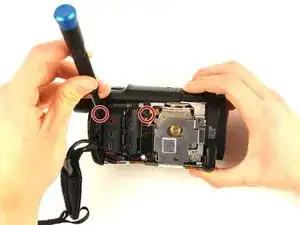

    • Remove the two 4 mm Phillips #00 screws from the top right corner of the camera.

    • Remove the 4 mm Phillips #00 screw from in front of the flash mount.

  4. RmyDHtDgSNxyGrCy
    RmyDHtDgSNxyGrCy

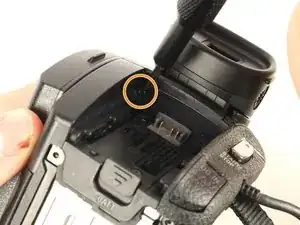

    yBknVLCX62MNoTFy

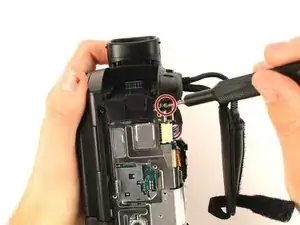

    • Remove the 3 mm Phillips #00 screw from below the right side of the battery slot.

    • Remove the black 5 mm Phillips #00 screw from the top of the battery slot.

  5. VN5RFSdkv3JqkmLO
    VN5RFSdkv3JqkmLO
    KN4ZPTrUrGQkOav1
    LLh4VOJeFcU5AukM

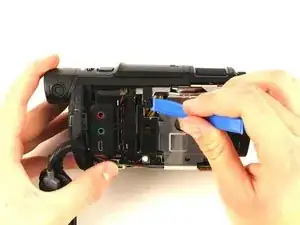

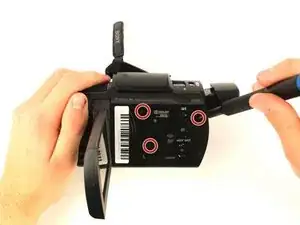

    • Remove the three 4 mm Phillips #00 screws from the left panel underneath the display screen.

    • You’ll need to extend the eyepiece by pulling it out from the body of the camera.

    • Pull the top panel off of the device with the iFixit opening tool.

  6. EYDUoSJHrBGTUkFn
    EYDUoSJHrBGTUkFn
    GJEeNNXQ3CrFAvnc
    VhXZqXu6osrMMiQb

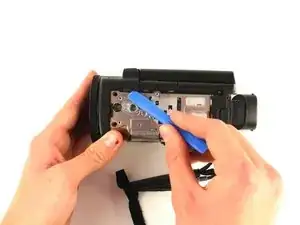

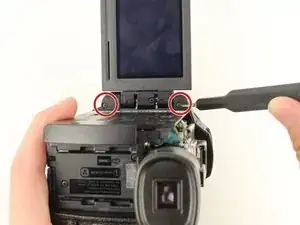

    • Remove the top and bottom 4 mm Phillips #00 screws from the display screen hinge.

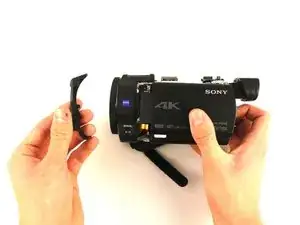

    • Use the iFixit opening tool to remove the screen hinge.

  7. M65cElHxCXtbsl5l
    M65cElHxCXtbsl5l
    wCbN2lwfihplDmkv

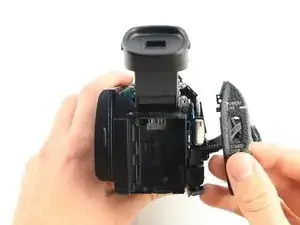

    • Remove the 3 mm Phillips #00 screw from between the eyepiece and the panel directly to the right of the battery slot.

    • Angle the eyepiece up to reach the screw with the screwdriver.

    • Take the panel directly to the right of the battery slot off of the camera.

  8. QeKZSTXLhs6SeEhZ
    QeKZSTXLhs6SeEhZ
    io2nWPQ1MGgM5cai
    S1YZn5DbysYYsm4N

    • Remove the 4 mm Phillips #00 screw above and to the right of the battery slot.

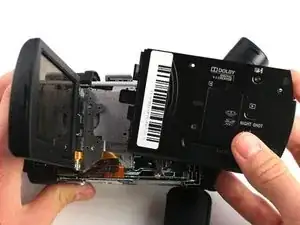

    • Pry the left panel out at an angle by pushing the plastic slat between the battery slot and the eyepiece.

    • Wiggle the left panel and pull it out gently.

    • The left panel can be hard to remove so make sure to apply a good amount of force, but be cautious to not harm yourself or the device.

  9. RQXD23IAnfcVqh2x
    RQXD23IAnfcVqh2x
    McQEMemDoVhBKPSs
    QNcfJh4nI1CMcwfv

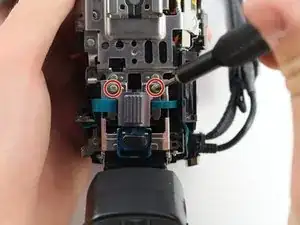

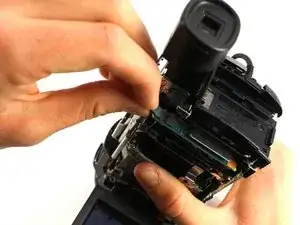

    • Remove the two 3 mm Phillips screws directly in front of the zoom button.

    • Slide the blue copper PCB out of the connector.

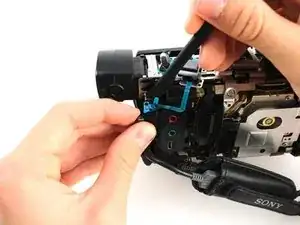

  10. Oa6peSrRw42n1GOD
    Oa6peSrRw42n1GOD
    RkpaxTJlsNlJZVDW

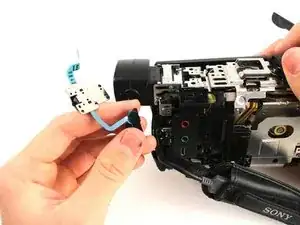

    • Unclip the black plastic piece from behind the record button in order to remove the photo, record, and zoom buttons.

    • Use the black nylon spudger to remove the record button.

Abschluss

To reassemble your device, follow these instructions in reverse order.
