Sony Handycam HDR­-CX220 Display Screen Replacement

Geschrieben von: Keven
  • Kommentare: 4
Sony Handycam HDR­-CX220 Display Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

30 - 40 Minuten

Einleitung

The replacement of the screen is needed if the image on the screen is not the desired image or if the screen is physically damaged.

  1. Qhhfjb2YwsCyGdle

    • Push in the battery indicator.

  2. e4QQHHAZGTbgIhXY

    • Slide the battery out of the slot.

    • To put the battery back in, line up the battery's metal part with the camera's and slide it in.

  3. yfFkAcWRscTf3J6s
    yfFkAcWRscTf3J6s
    pbAH5JIO5THqZedG
    DKW4eoFXihydQq1Q

    • Use the Phillips #0 screwdriver to remove the two 5mm screws.

    • Use the Phillips #0 screwdriver to remove the two 5mm screws.

    • Use the Phillips #0 screwdriver to remove the three 5mm screws.

  4. UCJuFCHUBbwt1Muo
    UCJuFCHUBbwt1Muo
    dPBDOeXFO6gbrqIx
    GVVihTqFvIKRYcGw

    • Use the plastic opening tool to loosen the plastic case of the camcorder.

  5. hWCtosvWZOAF455j

    • Use your hands to remove the plastic case.

    • Gently pull on the case not to damage anything internally.

  6. Jcm6AosAkYQONdmU
    Jcm6AosAkYQONdmU
    RghGVk6gmYXrnRxy

    • Use the Phillips #0 screwdriver to remover the two (5mm) screws on the outer part and one (3mm) in the middle.

    • In the second image, there is a second screw on the opposite side of the screen hinge. This screw is not shown, but must also be removed.

  7. HCuYeuq3BjNXyv2N

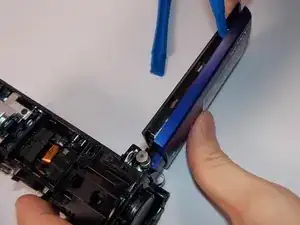

    • Use the plastic opening tool to remove the plastic case protecting the screen

    • Pull it gently not to damage anything under the case

  8. I2nmNkiC6mSSraOt
    I2nmNkiC6mSSraOt
    AmYTCZ1yRBXPZaOQ

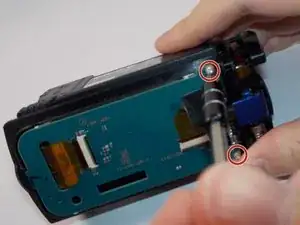

    • Use the Phillips #0 screwdriver to remove the 2 screws shown

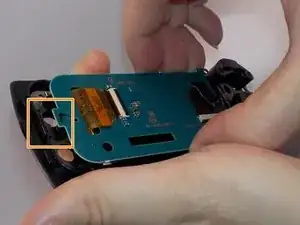

    • Use your hands to carefully unhook the screen from the highlighted hook

    Display Patti kaha milega

    Ayush Raj SK -

  9. wkRmXULLh3KMY5JC
    wkRmXULLh3KMY5JC
    pVJKwDZCorlkNXaU
    uMHjLVHmtJx4t1FK

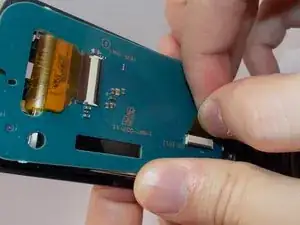

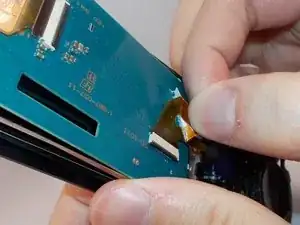

    • Use your hands to carefully remove the tape

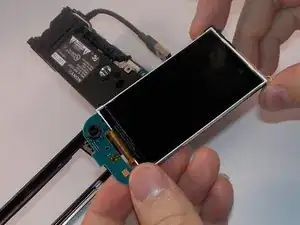

    • After removing the tape, pull on the wire disconnecting it from the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
