Sony Handycam HDR-CX675 Shutter Assembly Replacement

Geschrieben von: Mohamed Nazer
  • Kommentare: 0
Sony Handycam HDR-CX675 Shutter Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

12

Zeitaufwand

10 - 20 Minuten

Einleitung

In this guide, you will learn how to remove the shutter assembly from the Sony Handycam HDR-CX675. Completely removing the shutter assembly must be done with caution, as it is connected to the motherboard with sensitive electrical ribbon.

  1. AN4wS5niyL13nyij

    • The battery should be removed and oriented upwards.

  2. efY1mNJkkBi1kiRZ

    • Remove the side 4.5 mm JIS #00 screw using JIS Screwdriver

    • Remove the 5.5 mm JIS #00 screw.

  3. vQWsmmidX6QQgxGB
    vQWsmmidX6QQgxGB
    MYgY5IDUljbQPZd2

    • Gently pry the plastic case surrounding the start/stop button free by using the blue plastic opening tools.

    • Remove the casing using your thumb and index finger.

  4. eoQuCxb6DaVG2UKi

    • Turn the camera around and flip open the LCD screen to expose the side panel.

    • Remove the 5.5mm #00 screw using the J00 head screwdriver.

  5. wLbKHwHx43MFGB6Y

    • Turn the camera to the handgrip side and unscrew two of the 5.5mm JIS #00 head screws using the JIS #00 head screwdriver.

  6. DLGFoJSiOcMI5Fsc

    • Remove the two 5.5mm JIS #00 screws with the bottom of the camera facing up.

  7. 4wYQGtDSON1YgNH2

    • Turn the camera around in a way that the bottom of the camera is facing you.

    • Use the blue opening tool to gently remove the camera shell off of the camera.

  8. WXAl3CHARLWHwPfi

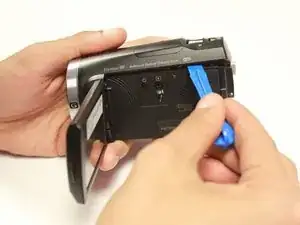

    • Using the blue plastic opener smoothly to take the camera shell off.

  9. PYQGUSQB1heAld5C
    PYQGUSQB1heAld5C
    PhbhvlVTRjVqHJc6

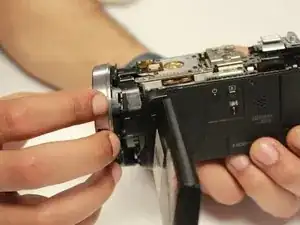

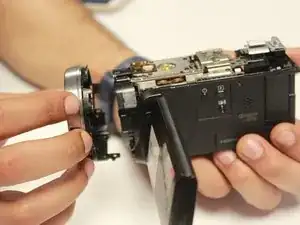

    • Let the lens of the camera be pointed to your left.

    • Keep holding the camera with your right hand then gently remove the lens cover panel with your left hand.

  10. mvoIGWSB1NJZLAaN

    • Place the camera on its lens and keep the LCD screen open and pointed to your right.

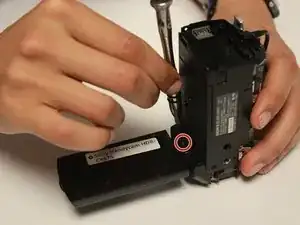

    • Remove the 5.5mm JIS #00 screws from the hinge of the camera.

  11. XJcmGJH4ycZ33NIi
    XJcmGJH4ycZ33NIi
    WhsPngWXXrNrCty5

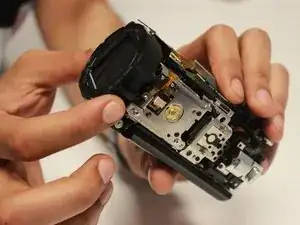

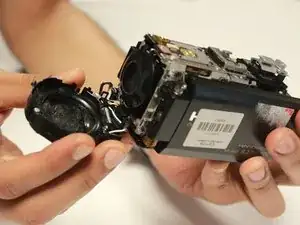

    • Hold the camera with your left hand, and gently remove the shutter assembly part.

  12. sPMuhAjNiTFV2NVZ

    • Hold the camera that the bottom is upwards and lens pointed to your left hand.

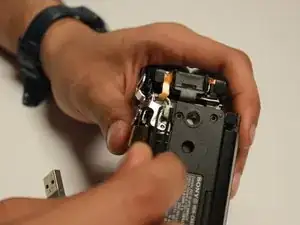

    • By the metal tweezers, remove the white wire that is connecting the shutter assembly and motherboard

Abschluss

To reassemble your device, follow these instructions in reverse order.
