These instructions will guide you step-by-step to remove the door in order to get to the speakers inside

  1. vnCx3sUYUFNPYaqb
    vnCx3sUYUFNPYaqb
    661vE6lLvMvUR2O1
    • Pull on tab away from the camera by applying pressure with index finger.

  2. Yhj4R2vlKvhVsw3v

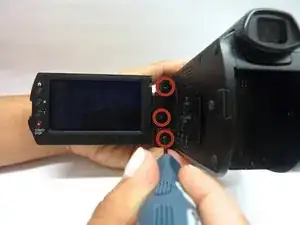

    • Next, remove the three 3 screws shown with the red markers.

  3. cfrkDWlBFMyPdZGe
    cfrkDWlBFMyPdZGe
    AvLrMV3QWbf1jltb
    N3QdVRSXXyLhEHd2

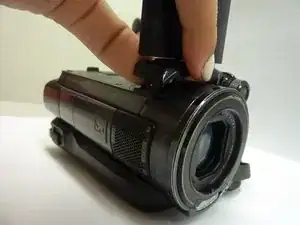

    • Place the camera on a flat service, so that the strap is downward and the lens is facing you.

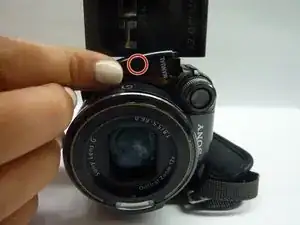

    • First, lift up the connector.

    • Then pull it back.

    • Remove the connector from the device.

  4. FgovJl52FBGen4tA
    FgovJl52FBGen4tA
    EHUp3BlVQd46ZXHQ

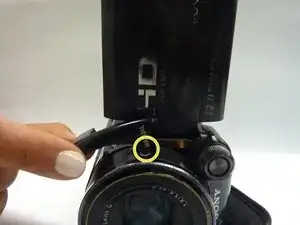

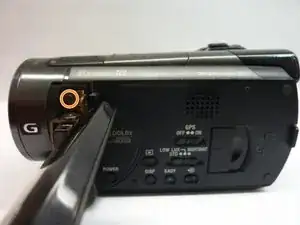

    • Position the camera so that the screen tab is pointing towards you.

    • Twist the tab clockwise one notch.

    • Remove the single screw.

  5. 1tJjcX3bGAH1f23Y

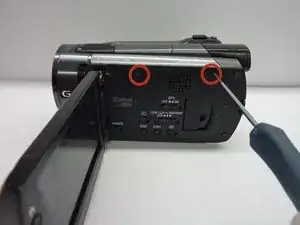

    • Remove the two screws on the control board.

  6. v3UtDSqhEB4uqAoH
    v3UtDSqhEB4uqAoH
    ZbGOuMwDu6DexbpA

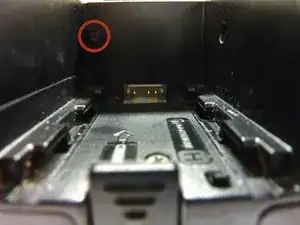

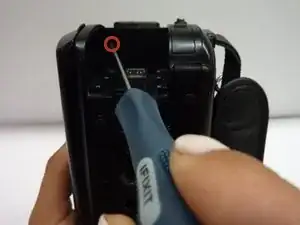

    • Place the camera so that the lens is facing downward and the battery compartment is facing towards you.

    • Remove the single screw.

  7. 1Xcc12ZNEd3ofpoy

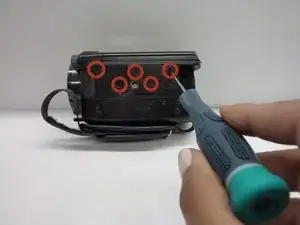

    • Lay the device on its side so it is resting on the strap and the bottom of the camera is facing you.

    • Remove the five screws.

  8. BmQYmyIHpnjPGLlO

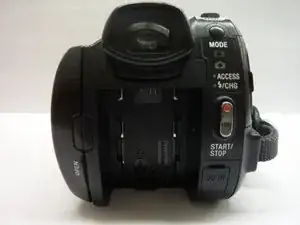

    • Close the LCD screen door.

    • Turn the camera to the eye piece and battery compartment is facing you.

  9. JtRqd5tnTDABQP5N

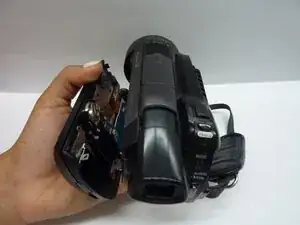

    • Pull the entire cabinet panel away from camera.

  10. jTBXBrPUPtkbfwSS

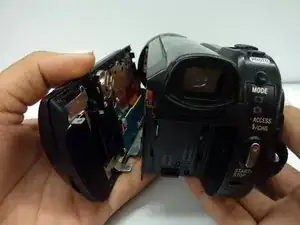

    • You have disassembled the cabinet door and got to the speakers.

    • Do not try to pry off the entire door, it can remain slightly attached.

Abschluss

Your door will now be disassembled in order to replace parts inside and these steps in reverse order will also help you put the door back together
