Sony ICF-C1T Screen Replacement

Geschrieben von: amber woolery
  • Kommentare: 0
Sony ICF-C1T Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 - 30 Minuten

Einleitung

Use this guide to replace the screen of a Sony ICF-C1T. When your screen is too bright or it has a lot of scratches on it, you can easily replace the screen or add a sheet of tint to the backside of it.

  1. CQXlGfRjEAQBfVX2

    • Make sure the clock is unplugged from the wall and the replacement battery has been taken out of the clock to prevent harm to you and to the clock.

    • Use a Phillips 00 head screwdriver to remove the four 14 mm screws from the bottom of the clock.

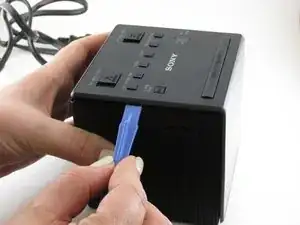

  2. fCL1SFRsvJKlp1Nl

    • Insert the plastic opening tool to pry apart the top and sides of the device gently.

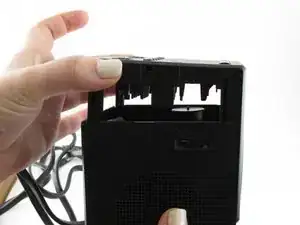

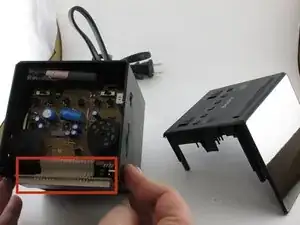

  3. gxiGLVXqftZsjMj4
    gxiGLVXqftZsjMj4
    lP1mhLClPwpdlVIU

    • Carefully pull the top of clock off as the clock display is located directly behind the face plate and is still connected by multiple wires.

    • Pull the top of the device away from the rest of the clock to expose the inside.

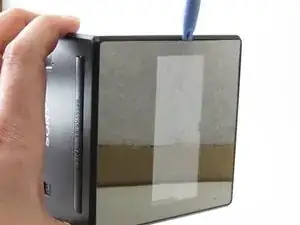

  4. EncFf2HZc55OtxgL
    EncFf2HZc55OtxgL
    YCVwVlZvWE4BLJWt

    • Do not use too much pressure on the plastic to not break it.

    • Add pressure to the inside of the screen so that a small area is loosened enough to be able to use an opening tool.

    • Use the plastic opening tool to separate the screen from the device.

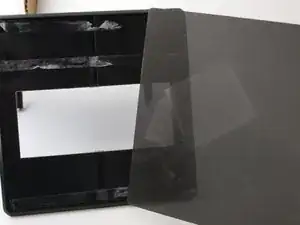

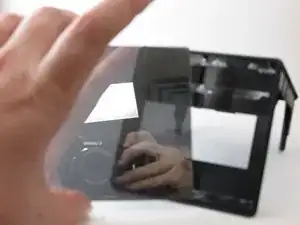

  5. 5Xd2xhGZcGoyHXHW
    5Xd2xhGZcGoyHXHW
    F2Vsr5TyOrhhICIT

    • Apply a tinted spray to dim the brightness once the tinted sheet is out of the way.

    • Another way to solve the brightness problem is to apply a tinted color sheet protector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
