Sony ICF-C1T Speaker Replacement

Geschrieben von: Megan
  • Kommentare: 2
Sony ICF-C1T Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

45 Minuten - 1 Stunde

Einleitung

This step-by-step guide will allow you to follow along and replace the faulty speaker of your device.

  1. gLUVGhwmJUFXL2IV
    gLUVGhwmJUFXL2IV
    1qyXpdlIh1HgZwMR

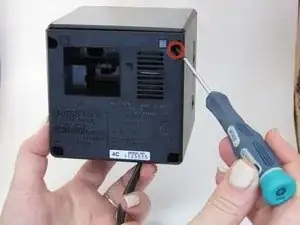

    • Using a Phillips #00 screwdriver, remove the four 14mm screws from the underside of the device.

    • Be sure that the device is unplugged and the battery has been removed before tampering with the device.

  2. KppEMXDxnRhZeegn

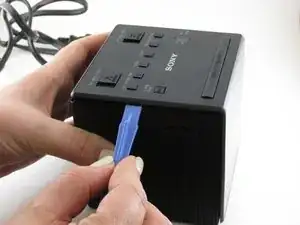

    • Using the opening tool, gently pry the top portion from the side section of your device.

  3. CPKjDppANGPjIJSE
    CPKjDppANGPjIJSE
    QHdFQRDPlMLWnpbI

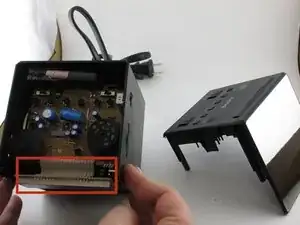

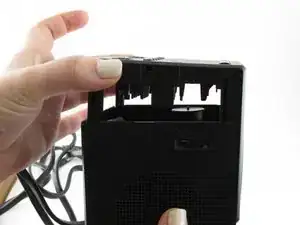

    • Gently pull the top of the clock away from the rest of the device.

    • Be careful when tugging on this piece of the clock. The clock display is located directly inside the front face and is connected by multiple wires.

  4. FOgXMVgBvpuRBUkj
    FOgXMVgBvpuRBUkj
    ikOhLqs1jgf1DCVH

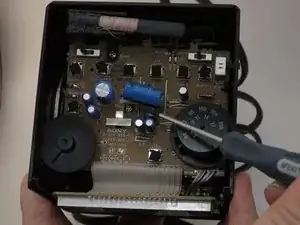

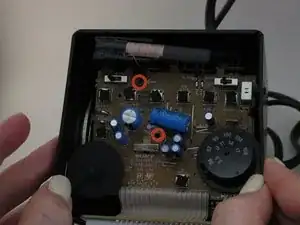

    • Using the Phillips #00 screwdriver, remove the two 14mm screws from the top of the motherboard.

    • Be careful to avoid the sharp pieces on the motherboard when handling the device.

  5. KkNbNxM5x5UvUQQY
    KkNbNxM5x5UvUQQY
    NILbsfbcW6hrNxGn
    H1SSd66h3O1nR56Y

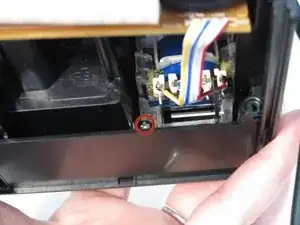

    • Remove the Phillips #00 screw from the bottom of the white and blue box.

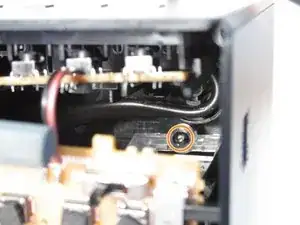

    • Remove the Phillips #00 screw from behind the white and blue box.

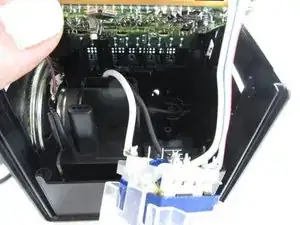

    • After unscrewing the white box, gently pull it out. This will allow for more room to access the speaker.

  6. cM5uibYTRPdITJjT

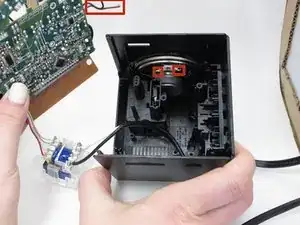

    • To separate the motherboard completely, you can cut the red and black wires that are attached to the speaker. This will allow you to access the speaker fully.

    • Use caution when tampering with the wires and sharp parts of the device.

  7. GGVwJwjwIQA3w2AM
    GGVwJwjwIQA3w2AM
    ruMot3JZytmNsGmP

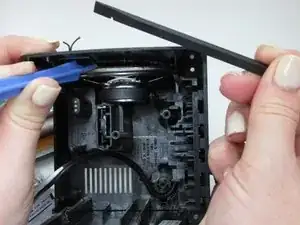

    • Use the plastic opening tool and the spudger to separate the speaker from the device by tracing its outline and loosening the glue.

    • Do this step gently as to not damage the device or cause harm to yourself.

    • When reassembling the device, you will need to use glue to place the new speaker back in its place.

    • It would be wise to test the device after reconnecting wires, before screwing and gluing the parts back together.

    what is the dimension power and ohm of the speaker? thanks you! the original hear very bad…

    octaracer2006 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
