Sony ICF-C1T Tuner Dial Replacement

Geschrieben von: Megan
  • Kommentare: 0
Sony ICF-C1T Tuner Dial Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide gives step-by-step instructions on replacing the tuner dial of your device.

  1. wAo4abSjR4ENWKtd

    • Using the Phillips 00 screwdriver, remove 4 (14mm) screws from the underside of the device.

    • Make sure that the clock is unplugged and the battery is removed before tampering with device to avoid electrical shock.

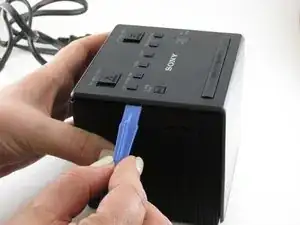

  2. qXrCTdhNg3aWgxKk

    • Use opening tool to pry apart edges of the top and side portions of the device.

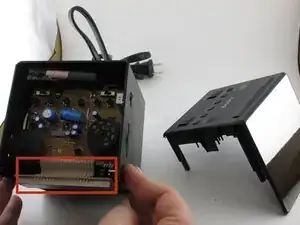

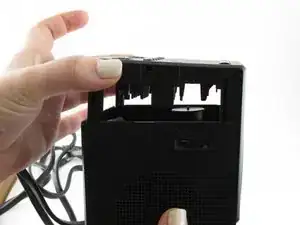

  3. x5FMZ4mJ2mw2J15W
    x5FMZ4mJ2mw2J15W
    LdnAjYVOQtMwBsKX

    • Carefully separate device by gently pulling up on the top portion.

    • Be sure to use caution when pulling device apart as the clock display is located close to the front face plate and connected by multiple wires.

  4. bYdPYNVk56UwZd5A
    bYdPYNVk56UwZd5A
    6g3XnDCONCARIlsM

    • To remove the motherboard, gently pull apart the sides of the device.

    • Do not pull hard on motherboard, as it is still connected by multiple wires inside the device.

    • Be careful of sharp pieces on the motherboard.

    • It would be helpful, although not necessary, to have someone helping out with this step.

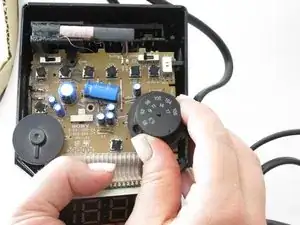

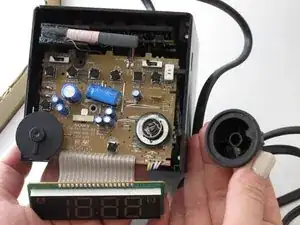

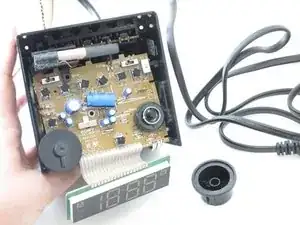

  5. FWHI1DVTgAieoZhA
    FWHI1DVTgAieoZhA
    oTtqhGYEWrnInSmM
    o4tm56bBr4vQkrxc

    • Remove tuner dial by pulling it off of motherboard. This can take a little force to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
