Sony ICF-P26 Antenna Replacement

Geschrieben von: Olaloye Thontteh
  • Kommentare: 3
Sony ICF-P26 Antenna Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

Use this guide to fix or replace a damaged antenna of a Sony ICF-P26 radio.

The antenna enables radios to get reception for their FM and AM bandwidth. A radio with no antenna or a damaged antenna would have distortion of radio waves .

Following these steps would fix the radio reception issues in a short time. There is minimal or no known danger associated with replacing the antenna .

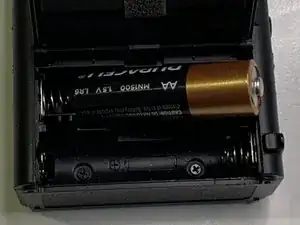

  1. dq6hMxCGPKVihw6G
    dq6hMxCGPKVihw6G
    VOZAmAHIMKBtWKoj

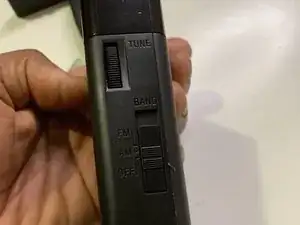

    • Power off and disconnect the radio from any power source.

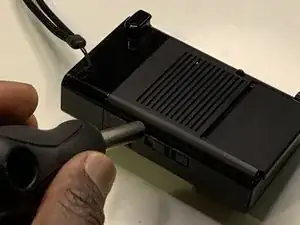

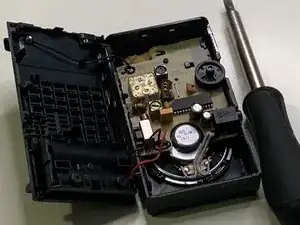

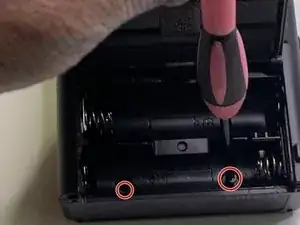

  2. QLZGdbwBgTpUXCEI
    QLZGdbwBgTpUXCEI
    BVF4lpwDccuw2M1E
    IVo3jAmHxfbL4Dj4

    • Use a mini screwdriver to remove the two screws from the battery compartment.

    • Gently insert an opening tool where the FM/AM/Off switch is, to force your way up.

    • Insert the opening tool in the other side where the volume and the earphone go.

    • You will hear hinges pop open.

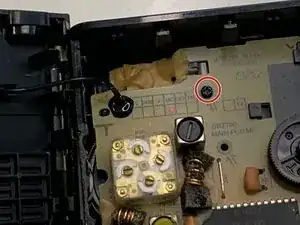

  3. SfIs6xZQKYahBHNj
    SfIs6xZQKYahBHNj
    xkZJ2AvPCTl1ZEBM
    FZbjh5hFNiFiTIUx

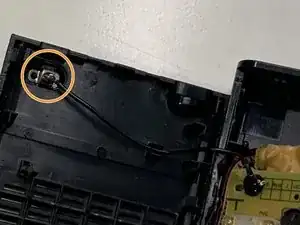

    • Use the mini screwdriver to remove the screw holding the motherboard.

    • Unscrew the damaged antenna.

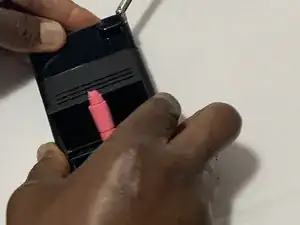

  4. 5nHykKaOKCTejrPa
    5nHykKaOKCTejrPa
    HKceLERkF4Q4bIqN
    3hSG3xERn2JFbTca

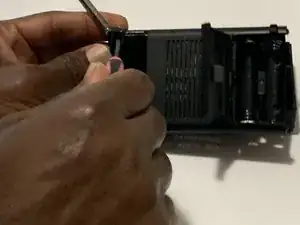

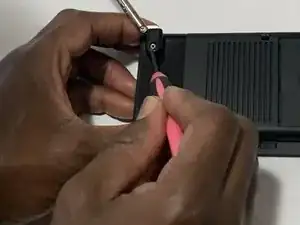

    • Use the mini screwdriver to replace the new antenna.

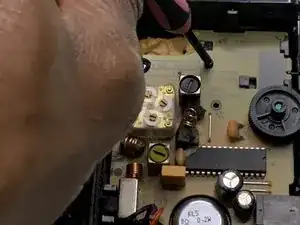

  5. Sl2P3bcKLnCa6Qk3
    Sl2P3bcKLnCa6Qk3
    PG22QAGXEKxXJDHt

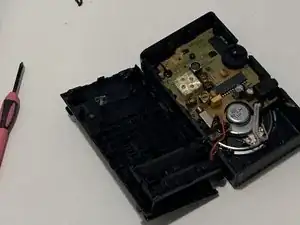

    • Use the mini screwdriver to assemble the motherboard.

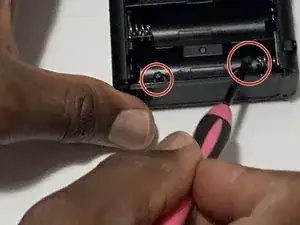

  6. MEj3FUL3ntwCUiLy
    MEj3FUL3ntwCUiLy
    jJ1bEjlbT6t5IaUJ
    CRMUNaWKec4mw6Bk

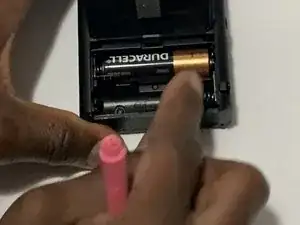

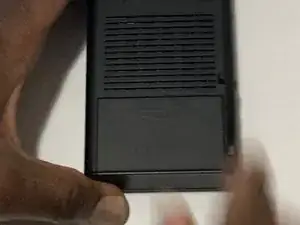

    • Use the mini screwdriver to assemble the cover.

    • Insert the batteries.

  7. oLPUJwxBmgMBVf4F
    oLPUJwxBmgMBVf4F
    InjYMI3NOk1YAnKG

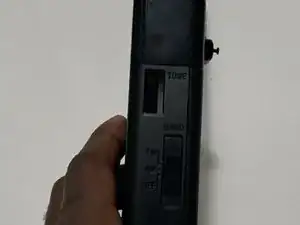

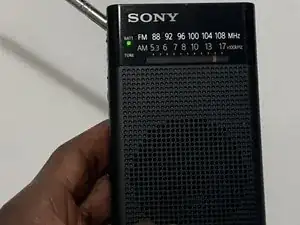

    • Switch on the radio.
