Einleitung

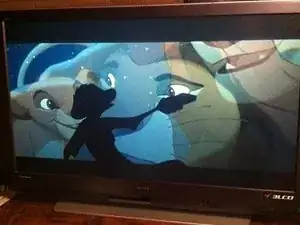

Here is a Sony TV that turned on and off every few seconds. To remedy this, replace the lamp. This is straight forward and only requires a small Allen wrench. As with all work on all electric or electronic equipment, make sure that it is unplugged first.
Werkzeuge
Ersatzteile
-
-

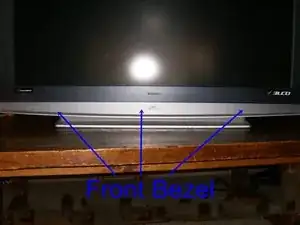

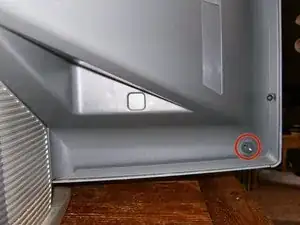

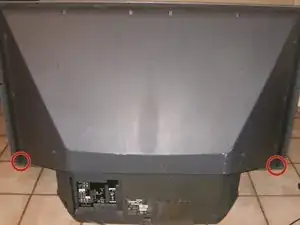

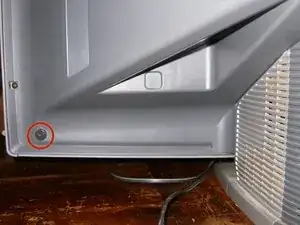

With both thumb screws removed, the front bezel can now be easily pulled off. It is only held in place by three magnets.
-

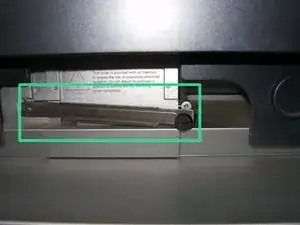

With the bezel out of the way, there will be a small cover held in place by a crossbar and a thumb screw. Loosen the thumb screw and fold the bar out of the way.
-

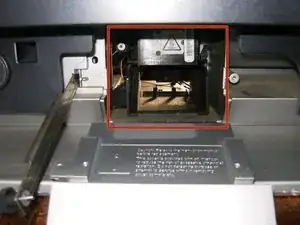

The back of the lamp housing is now visible.
-
-
-

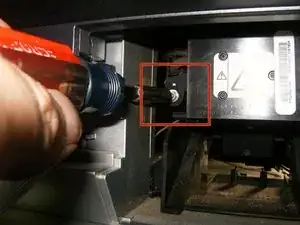

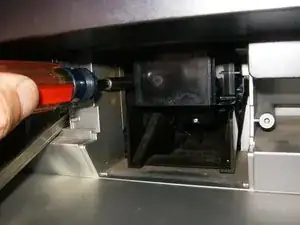

Loosen the 3mm Allen bolt. It will not come out of the lamp housing, but will loosen it to remove the lamp housing from the TV.
-

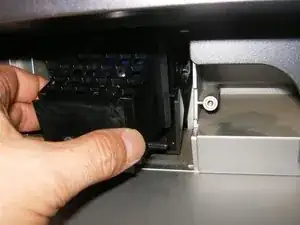

With the Allen bolt loose, pull the lamp houing slightly back and down,
-
this will remove the lamp in its housing.
-
-
-

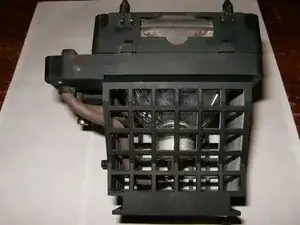

Here is the old lamp and housing.
-

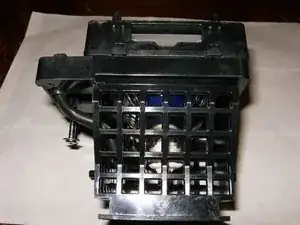

For the replacement, a complete lamp and housing was chosen. The lamp is individually available. There was not a big difference in cost, to justify the additional steps of replacing the lamp housing.
-
Install the new lamp and housing
-
To reassemble your device, follow these instructions in reverse order.
