Einleitung

The mechanism deck is responsible for turning the tape at the correct speed so that your recordings record and playback properly. This guide shows you how to replace the mechanism deck and get your microcassette-corder back in working order.

  1. UIr6PIMYUXqFcLQv
    UIr6PIMYUXqFcLQv
    bqC31KaNKxBTScKb
    aYV1qRlSwDcapPB2
    • Using a spudger, apply pressure towards the back corner of the cassette compartment to the plastic tab directly behind the gold cone.

    • Pushing the tab allows the hinge to be separated from the body of the device.

    • The third picture shows the what the tab looks like when the device is disassembled, and illustrates the direction to apply pressure.

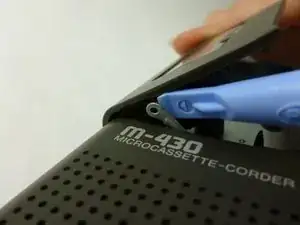

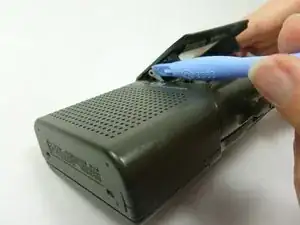

  2. j5KCqmSIfZKqsZhE
    j5KCqmSIfZKqsZhE
    oSCXXoRNVx1Kqweu
    • Next, use a plastic opening tool to pull the metal latch towards the speaker.

    • The latch should be clear of the slot in the cassette lid.

    • Be careful not to bend the latch too far, as it may warp.

  3. 3ulKU41FjSMqVjjX

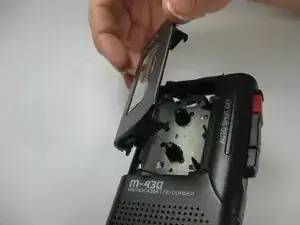

    • Carefully lift the cassette lid, making sure the tab and latch are free from connection.

  4. DeFthhbUhji1OuoW
    • Find the arrow on the battery cover on the back of the device.

    • While pressing down on the arrow, slide the cover towards the bottom of the recorder until it clicks.

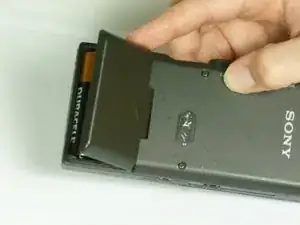

  5. XOjTaOgxrP6UFIYV
    XOjTaOgxrP6UFIYV
    M2hZJBRvtRFqiXfE

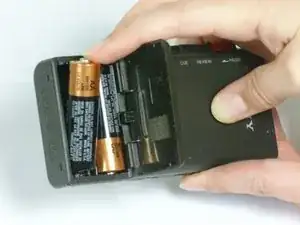

    • Lift the cover and remove the batteries.

  6. SjkbODkArGVeV3ji
    SjkbODkArGVeV3ji
    cRklWRKvFObj3UVL

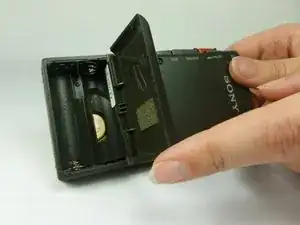

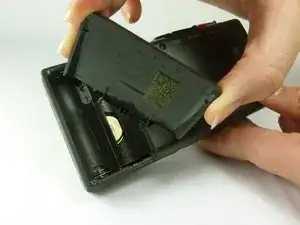

    • Remove the battery cover by first tilting it so it is at a right angle with the rest of the device.

    • Next, twist it to the side as shown in the second picture. The lid should simply snap off.

    • Be careful not to apply too much force, as the lid may break.

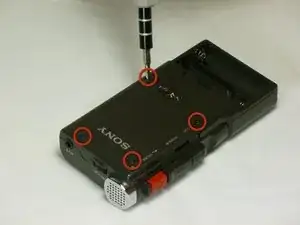

  7. mLMD2oZ5l15dUQ6c
    mLMD2oZ5l15dUQ6c
    kDXTsQII1x5TXUZJ
    • Use a #00 Phillips head screwdriver to remove the four (1.7x16 mm) screws from the back case.

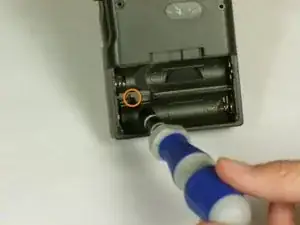

    • Next, use the same screwdriver to unscrew the (1.7X5 mm) screw, which is located inside the battery compartment.

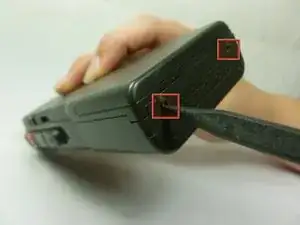

  8. yqNbcfBHgZnkVoXM
    • Use a spudger to push in the two tabs located on the bottom of the device.

    • It works best to push the tabs at an upward angle (towards the top of the battery compartment)

    • It may take a decent amount of force in order to push in the tabs.

    I didn’t push on the tabs, but put a spudger along the seem and the clips released with minimal force!

    RadioShack -

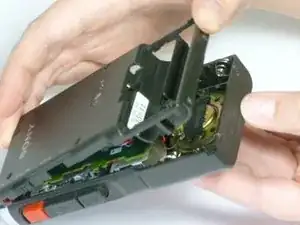

  9. FUXboXVgHH52XbFW
    • With a firm grip on the larger half, remove the back cover by lifting first on the battery area.

    • The back cover should lift cleanly off.

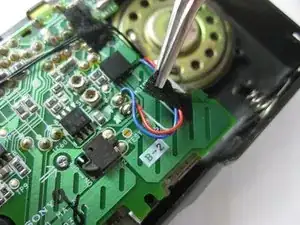

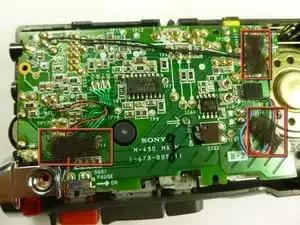

  10. mj3GLpEBqvTTCNEf
    mj3GLpEBqvTTCNEf
    QKZKPJKVPpX2LNbd
    • Using tweezers, pull upward on the black tape which secures the wires.

    • Removing this tape allows you to move the wires out of the way for the next step.

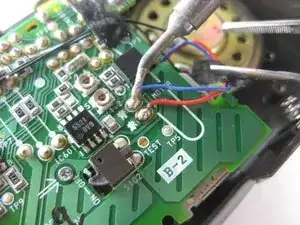

  11. TF3RQVtctWOeARXK
    TF3RQVtctWOeARXK
    ItkIwfwhs5xEiHdJ

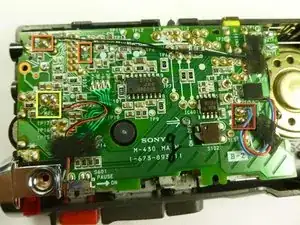

    • Desolder all wires connecting components to the motherboard.

    • Be careful to not melt the solder points together.

    • A red wire and a blue wire connect the motor to the motherboard.

    • Two black wires connect the speaker to the motherboard.

    • A red wire and a black wire connect the microphone to the motherboard.

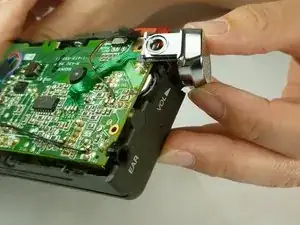

  12. 6qddHKPIfGKNBoSR
    • After desoldering the microphone connections, pull the microphone straight out from the device and set aside.

    • Be careful not to tear the wires off of the microphone.

    • Removing the microphone gives you access to the green ribbon cable that connects to the mechanism deck.

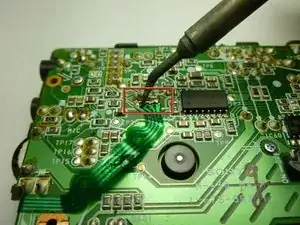

  13. dFOYZ6CAPxdRl5KG
    dFOYZ6CAPxdRl5KG
    MUOH2wgBmQDFZqHy

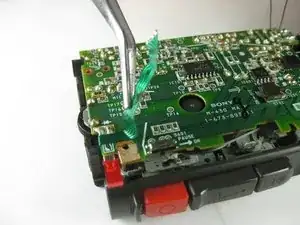

    • Desolder the 4 connections of the green ribbon cable.

    • Pull upward on the green ribbon cable to separate it from the motherboard.

    • Be careful when pulling up the film as it may tear.

  14. SDAWZ4myRm6hLaKj

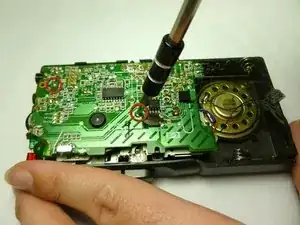

    • Using a #00 Phillips screwdriver, remove the two 1.4x3 mm screws securing the motherboard.

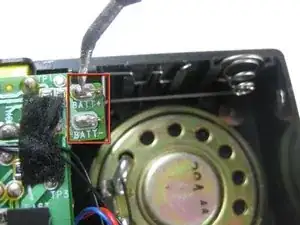

  15. ya61sU4L3bhFKHBE
    • If the replacement motherboard does not have the wire battery terminals attached, desolder the two battery connections on the motherboard.

    • Leave the wire battery terminals in place.

    • If the replacement motherboard has battery terminals attached, the connections do not need to be desoldered.

  16. HRrgGGsNRpsnPfTW

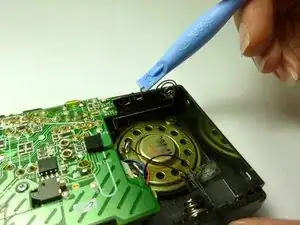

    • To remove the battery terminals, use a prying tool to push the lip of the metal wire towards the motherboard.

    • Lift up on the wire while the small lip is depressed and slide the wire terminals out of the plastic guides.

    • Be careful not to bend the wire terminals.

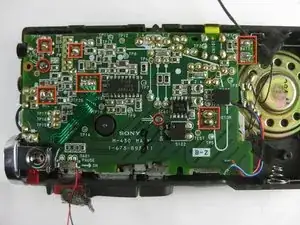

  17. ZtHNHNmE45DExlNN
    ZtHNHNmE45DExlNN
    m3YTD4Gcb5rCZArL
    • Verify all of the connections have been desoldered and the screws removed.

    • Lift the motherboard upward to remove it from the microcassette-corder.

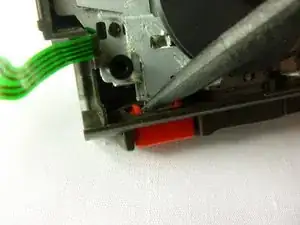

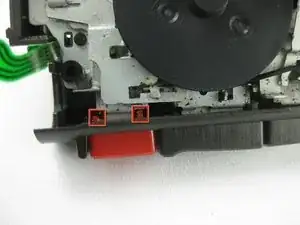

  18. j2BkoGxm2k3bFiGi
    j2BkoGxm2k3bFiGi
    rVABiCEhOueGcDct
    meNVIgUTOJlxEHc4
    • First, remove the buttons from the mechanism deck so that you can remove it from the case.

    • Find the tabs on each button.

    • Push the tab with a spudger away from the metal connection.

    • Pull button away from the mechanism deck to remove it.

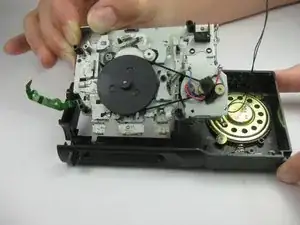

  19. lUwTUUjEZCWjygaD
    • Remove the mechanism deck by lifting the tab as shown.

    What type of drive belt is that? How long is it? I can't seem to find the information online anywhere

    Shiny Krookodile -

Abschluss

To reassemble your device, follow these instructions in reverse order.
