Sony NEX-5R Front Case Replacement

Geschrieben von: Emily Trujillo
  • Kommentare: 1
Sony NEX-5R Front Case Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

We will be teaching you the proper way to disassemble your Sony NEX-5R so that you can replace your front case. This will be helpful to those that have damaged the front case and are looking to fix it by themselves.

  1. LKPoiSsXP3Ao6MkS
    LKPoiSsXP3Ao6MkS
    AiqePoWkB4HCq4d5

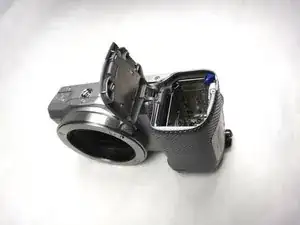

    • Open the battery pack door by moving the slider to "OPEN".

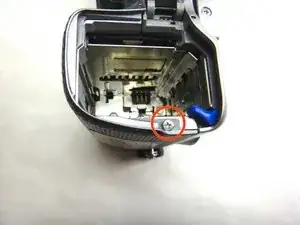

    • Remove the 3.25 mm silver screw inside the battery pack with a Phillips screwdriver.

  2. TWCYMgRVmNIAXeE3

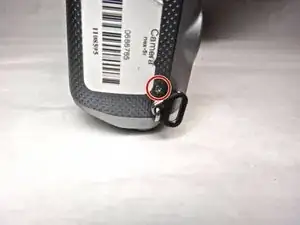

    • Remove the 3.25 mm exterior screw with a Phillips screwdriver.

  3. DiPOA4KvKSAowjKr
    DiPOA4KvKSAowjKr
    fICxkLUqPpV3xtkT

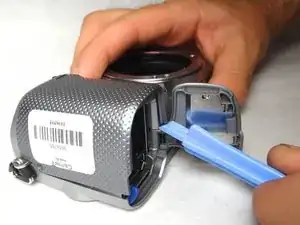

    • Use the spudger to raise the corner of the case from the camera.

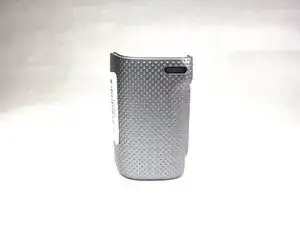

    • One component of the front case should now be separate from the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
