Sony NEX-5R LCD Screen Replacement

Geschrieben von: Emily Trujillo
  • Kommentare: 18
Sony NEX-5R LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

10 - 15 Minuten

Einleitung

Perhaps your LCD screen is scratched or damaged and needs replacing. This guide gives you directions on how to remove your LCD screen safely without damaging any of the device's sensitive components.

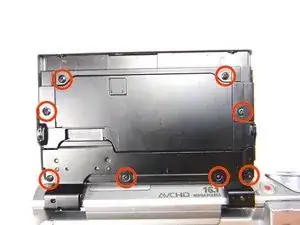

  1. riG4IlkuxfNWQyGc
    riG4IlkuxfNWQyGc
    TthFDwk5yAFUVgNH

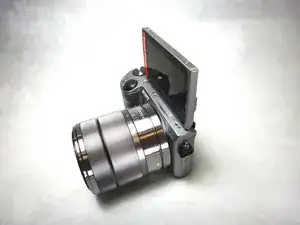

    • Rotate screen to upper vertical position.

    • Remove the 8 (1.0 mm) black screws from the screen backing with Phillips screwdriver.

    • Make sure to keep track of these 8 screws. They are very small and easy to get lost.

    What kind of LCD screen do i buy?

    tnuhhuynh -

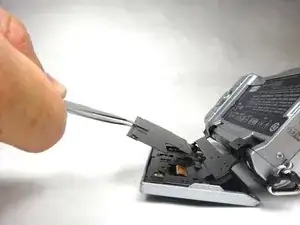

  2. FMDnBBhNgcPlS4BU

    • Remove black plate with tweezers.

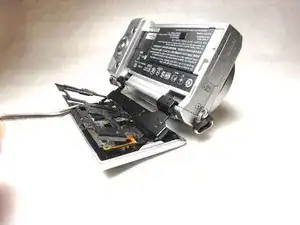

  3. Hcn6tHlOfftWeXAU

    • Remove the second black metal plate covering with tweezers.

    • Be careful with this plate, its shape makes it delicate.

  4. g4xwtnHAS122J54E
    g4xwtnHAS122J54E
    ejJlmHhfgacgVElv
    1iMX3hXcDj5DtXAY

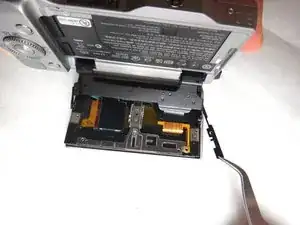

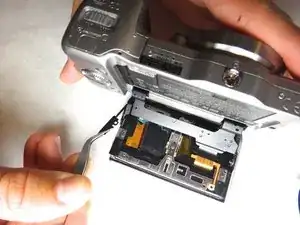

    • After removing both plates, remove the 2 (1.75 mm) Phillips screws on the bottom of the LCD screen.

    • Take off the 2 metal sliding side components. This will allow for us to slide off the screen.

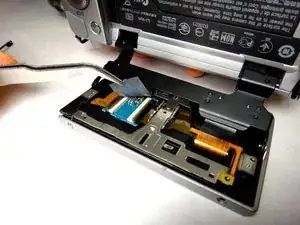

  5. XKxKmnyAeAD4icQJ

    • Remove the blue square film covering the teal chip.

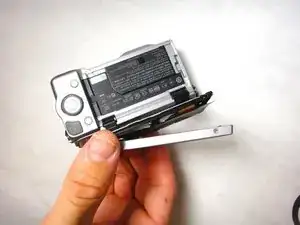

  6. OrqayvJeqgIZEtmh

    • Lift the screen away from the backing.

  7. AiK66n3uMgUKwJ22
    AiK66n3uMgUKwJ22
    mCrvmC2PqJXhFRAT

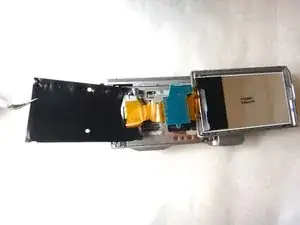

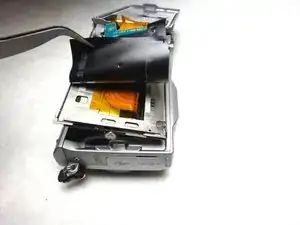

    • Peel away the large rectangular black sheet with the tweezers.

    • Rotate the sheet so it is to the opposite side of the screen.

  8. yPWiay1SjlAQ5pJa

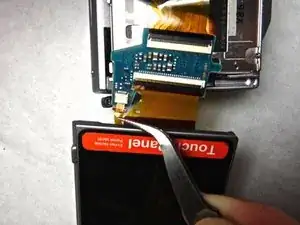

    • Using the tweezers, gently pull the small orange tab away from the backing.

    • The orange taping is very fragile, so make sure not to tear it with the tweezers or rip it out of its socket.

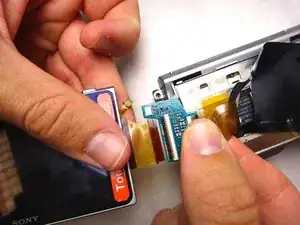

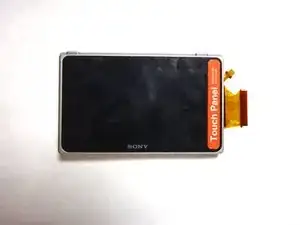

  9. HabyLD5xGKuHXB1W
    HabyLD5xGKuHXB1W
    fZQ2XFOHUQoYCAER
    OFH6XMH36hRtvWL2

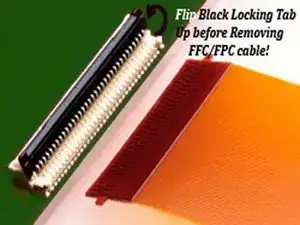

    • Use a spudger or plastic opening tool to flip the black locking tab up. Slide the cable straight out of its socket and remove the display.

    The black bar can be clipped up and down again to release and attach the bus again. Not knowing this is how i demaged the bus next to the thumb... so the cam is trash now :( Good luck to everyone else though

    pept -

    you can buy the little Board from sony and install it again.if you want to send it to trash give it to me instead.i will fix it.

    fcosta fcosta -

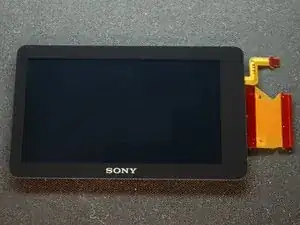

  10. ZVWCEr4hhmlBEWCx

    • Some replacement LCD screens do not come with the plastic frame. The original frame is easily separated and reused. Push the LDC out of the frame from behind. This takes some force. Be careful not to break the frame.

    • After separation, removed the sticky material between them and replaced it with double sided tape.

    • On reassembly stick strips of the tape to the inside edges of the plastic frame and then trimmed them to fit with a Exacto knife.

    • The small flexible cable must be folded around the inside edge of the plastic frame and then folded again to meet the connector. Follow the folds of the original cable.

    Hi,

    I did exactly like this for a Sony Nex 5N, but the screen doesn't have backlight anymore. I thought that maybe was the display I ordered...but I ordered another one...and I have the same issue. I even bought the flat cable between the flip panel and the camera's body...the problem persist. Any clues?

    Thank you.

    I must mention that the image is present on the display, but there is no backlight. Of course that I tried to increase the brightness from settings...but there is no result.

    Bogdan Zaharia -

    To put the screen back into the frame (as my set didn’t include that part) I’ve used “3M 300LSE” adhesive tape which is absolutely awesome stuff. I highly recommend having some sheets in stock at all times. I originally bought it to help offer extra grip for problematic 3D prints, but it keeps being a lifesaver for all kinds of projects.

    David -

    My new screen works but there’s no touch screen now and it will not reverse when I flip the screen. Any suggestions?

    Rod Abernethy -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Emily Trujillo

Mitglied seit: 08/04/14

1114 Reputation

12 Kommentare

Success! This guide was very helpful. Here is a bit more info:

The LCD screen I ordered did not have the plastic frame. The original frame is easily separated. Push the LDC out of the frame from behind. This takes some force. Be careful not to break the frame. After separation, I removed the sticky material between them and replaced it with double sided tape. I first stuck strips of the tape to the inside edges of the plastic frame and then trimmed them to fit with a Exacto knife. The small flexible cable must be folded around the inside edge of the plastic frame and then folded again to meet the connector. Follow the folds of the original cable.

On reassembly I used a very tiny bit of double sided tape on each of the side rails, near the screw holes to hold them in place while putting on the outer most screen backing shown in step 6. When replacing this part pay special attention to the two small tabs at the bottom which must slide into slots at the bottom of the screen assembly.

Joseph Coffland -

Where can I buy the screen other than bidding on ebay

oscarpatriciorojas -

I purchased my NEX-5 replacement screen from e-Bay 'buy it now' from seller: szdigital2013. It came from China and cost a mere £10.29 inc.post.

Michael Sept.2017

michaelgamble61 -

I see it amazon but is too damned expensive 60 ,79

oscarpatriciorojas -

double sided tape did not work for me. The screen keeps popping out - what kind of glue would you suggest?

Ben -

I bought some red coloured/backed double sided from e-Bay seller: atomic7 for £2.99. incl. postage. It works fine if you put it on the underside edges of the LCD. It is fiddly and you need tweezers to apply, but it does work and keeps the LCD screen well in place.

michaelgamble61 -

question is the resolution as good as the original ? Does the one from ebay have the sony name on the screen? Is the 5r going to work with my 5t ?

robertosmitho2012 -

Thank you, Emily. I had to discount the instrucion: "turn the LCD screen fully upwards" (or words to that effect) since my NEX-5 doesn't allow for this - it opens in two stages. Stage 1 = 73 deg. from vertical, (so you look down at the screen) Stage 2 = only allows the LCD to pivot downwards to about 48 deg. from the Vertical, (so you look up at the screen). In turn this means fairly difficult access to those tiny screws inside. It didn't function first time so I parted the ribbon connector again and applied some Maplin Contact Cleaner - then it did work (I rebuild Laptops). Applying the two-sided sticky tape was also very fiddly - needing three hands really, but eventually all was well. These are all Very Small Points. in the main, though, I wouldn't have known where to start without your extremely detailed pictures. So thanks again! Michael at Studio1.

michaelgamble61 -

I have a problem a small rectangular magnet had fallen out of the camera, does anyone know where this goes ?

Anne -

I have the same problem as Anne, does it go back into the outer frame before you insert the screen. There seems to be a slot for it

davidsmith911s -

the cable around the screen what that do for the screen

June Martinez -

What the cable around the screen on a Sony nex 5 what that cable is

June Martinez -
