  1. Td6v1jCqdsQMaoKh
    • Remove the two 3/32" #00 screws located next to the viewfinder using the Phillips #00 screwdriver.

  2. sOaUbDniaUQUSyiM
    • Remove the two 5/32" #00 screws from the right side of the camera below the D ring using the Phillips #00 screwdriver.

    Upper screw is 5/32. Lower screw is 3/32

    Ian Ballantine -

  3. l1BNQ3HWbZdQoNJC

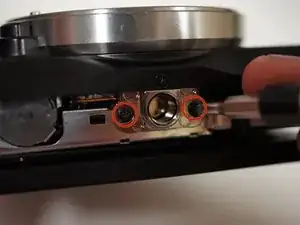

    • Remove two more 3/32" #00 screws from the bottom of the camera using the Phillips #00 screwdriver.

  4. rucx1aRmCRGYLEtc

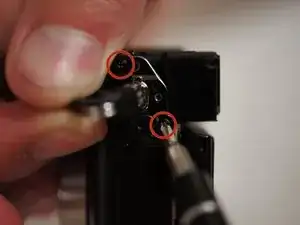

    • Remove two more 3/32" #00 screws from the metal bracket on the left side of the camera using the Phillips #00 screwdriver.

  5. clfhBHkngB2BB1CV

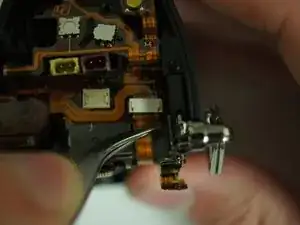

    • Unplug the orange ribbon cable on the top right of the camera next to the metal bracket by applying tweezers to the tabs on either side of the plug.

  6. gvq5NDceA41oKHIN
    • Before pulling off the assembly, fold the rightmost tab of the flexible circuit board away from the metal bracket.

  7. exywjO3Yhe1UZCHL
    exywjO3Yhe1UZCHL
    M3sFZef4dl3QHUkY

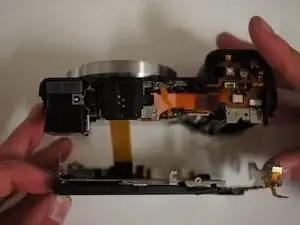

    • The LCD assembly is attached with a concealed ribbon cable, so be gentle when you remove it.

    • The D ring brackets on either side are not attached, only held in mechanically. Once the LCD assembly starts to come out, they will detach.

    • Pull on the D rings on either side of the camera to start removing the assembly.

    • Once the brackets are cleared from black shell, take them off and set them aside.

    • Continue to remove the screen assembly.

  8. JYuEPwLSFJhoZKpM

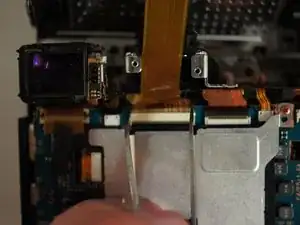

    • With the camera face down, move the assembly away from you to get a clear view of the wide ribbon cable.

    • Unplug the cable by applying tweezers to the tabs on either side of the plug.

    • Set the LCD assembly aside.

Abschluss

To reassemble your device, follow these instructions in reverse order.
