Sony NWZ-E473 Back Panel Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

20 Minuten

Einleitung

To complete this Sony NWZ-E473 guide, you will need a screw driver and a prying device. Caution is advised when prying the back panel because permanent damage may occur if done incorrectly.

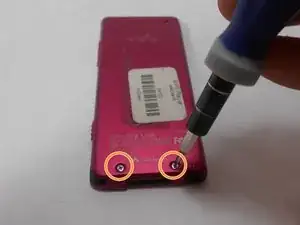

  1. TXDudNUhWoe11pTX

    • Use a Phillips #00 screwdriver to unscrew the two 5 mm screws located on the bottom of the back of the device.

  2. lyZUND2XxSY6DgSc

    • Use a plastic opening tool to loosen the bottom portion of device.

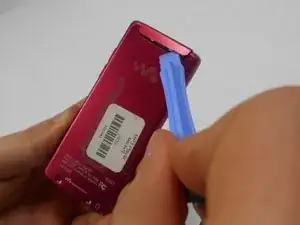

  3. pBSj2WFOx1iLjHpa

    • Use a plastic opening tool to loosen the top panel of the device.

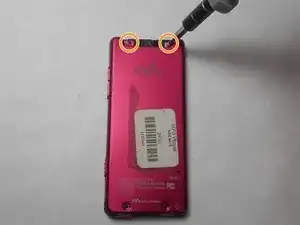

  4. YjFG5tYp2ZoKHPQp

    • Use a Phillips #00 screwdriver to remove the two 3 mm screws located on the portion under the top panel of the device.

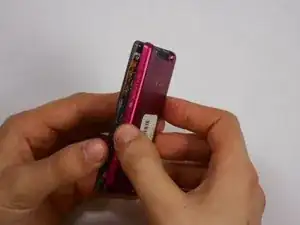

  5. Q2y5rOqMwIG3XOHh
    Q2y5rOqMwIG3XOHh

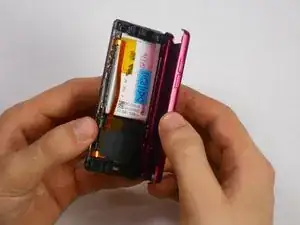

    AAy4b1UvBGeAkIw6
    QrwmQQPHrRrRwpDK

    • Remove the back plate from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
