Sony PC Companion - How to Flash Password Locked or Not Powered Xperia Device

Geschrieben von: ZFix
  • Kommentare: 8
Sony PC Companion - How to Flash Password Locked or Not Powered Xperia Device

Schwierigkeitsgrad

Very easy

Schritte

9

Zeitaufwand

15 - 30 Minuten

Einleitung

Sony PC Companion - How to change the firmware on your Xperia Device, if you forgot your Password, PIN, Pattern, Screen Lock.

PC Companion will install the latest firmware on your phone and will reset it to the Factory setting.

You can use this technique also if your device is not boot properly.

!!! This will erase all your personal data!!!

If your device is connected to the internet and you have an installed Google account on it, look at this manual:

Bildschirmsperre auf Android Geräten mit dem Android Device Manager zurücksetzen


'''Please SUBSCRIBE to my channel ツ'''

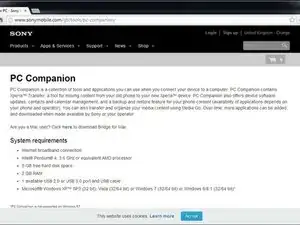

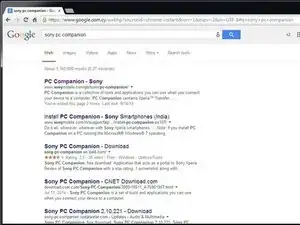

  1. ofXaTZmUNQv44BQ3
    ofXaTZmUNQv44BQ3
    6ioAIQGYvbPyZS2v
    kr6EFVlfHWDQYYAU

  2. OKRxRvHfqM1lSROH
    OKRxRvHfqM1lSROH
    F3yyB64AmcnfuxXQ

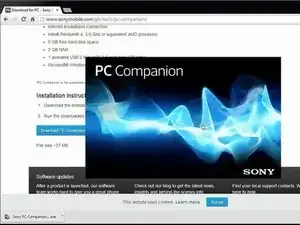

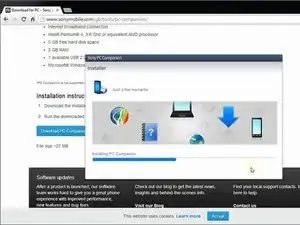

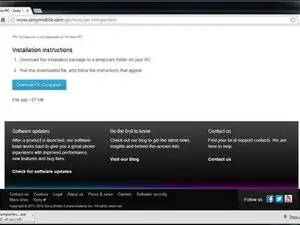

    • Install Sony PC Companion in your PC.

  3. ChQ4vNAGGkbedhDo
    ChQ4vNAGGkbedhDo
    1XHMdEfXcFCQhYXV
    A5gl5JbCLcnJESpq

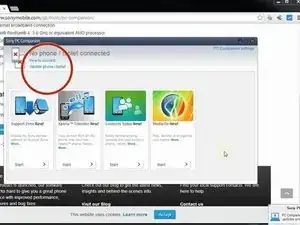

    • From here you can update your firmware, but when you connect the phone, it must be switched on and not in security or password screen.

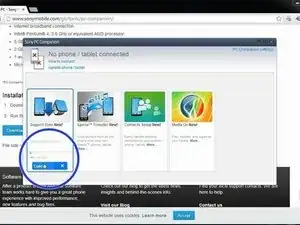

    • We will start "Support Zone" because from here we can flash the phone from switched off state regardless of whether there is a password.

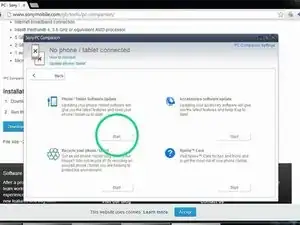

    • Now start "Phone / Tablet Software Update".

  4. YICGoxuytD533cjA
    YICGoxuytD533cjA
    PIOOrpgrRGCdPVnw
    uJjiacrP2ck4fbYC

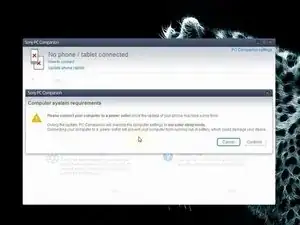

    • Connect your laptop to power supply since the update of your phone will take some time.

    • Now choose "repair my phone / tablet". By this way you can fully erase your phone and remove any security password, PIN etc., or change firmware if your phone have OS problem and can't be powered on correctly.

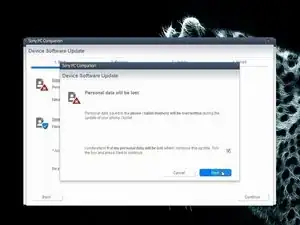

    • This is your last warning about losing your personal data.

  5. pgMFuNLAtgElx1Qw
    pgMFuNLAtgElx1Qw
    v3AgIGiBVwXYNYis

    • PC Companion will download some files to prepare your PC for software update.

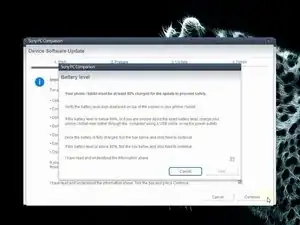

    • Your phone / tablet must be at last 80% for the update to proceed safely!

  6. tucgbPjlNW4Uln6u
    tucgbPjlNW4Uln6u
    cVSt6YeSGUrqakYB

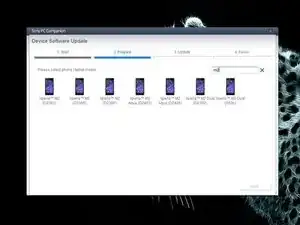

    • Select the model of your phone.

    • You should not confuse the model.

  7. By5lnYuhIgKmTOFQ
    By5lnYuhIgKmTOFQ
    1XhHMy3uUfIX1xuQ
    P6DPWCkkWwpSu6Ki

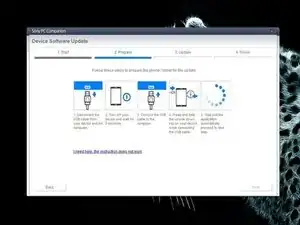

    • The USB cable must be connected only to the PC.

    • Turn off the phone.

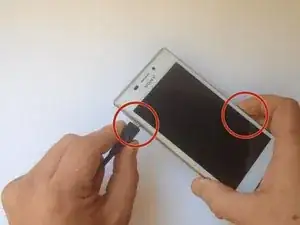

    • Press and hold the Volume Down button while plugging the cable into your phone.

    • Once connected, PC Companion will download necessary firmware and will upload it to your phone.

  8. DkiCaj1wgy1vD2NL
    DkiCaj1wgy1vD2NL
    qCRpSiQAT1w1EykP
    35tPfvR2DnRBw1IG

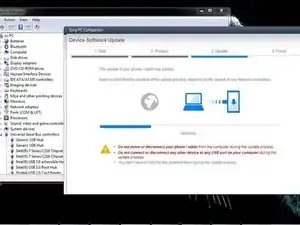

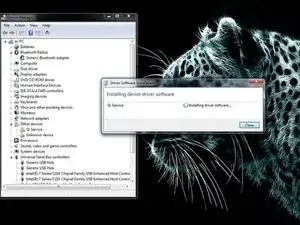

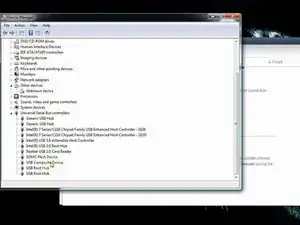

    • Your PC must recognize your phone like SOMC Flash Device.

    • If you have a problem with drivers (your PC can't recognize your phone), search in the internet for "S1Boot Fastboot" drivers or use the link below.

    • Direc link to Android WinUSB drivers

    how to use android wiusb driver that u suggest?

    yuniarsintadewi -

  9. SBBejrrLkymW64D1
    SBBejrrLkymW64D1
    wvmKcgQAAZHZsc6k
    DLWnhgFmhV2uxQ6U

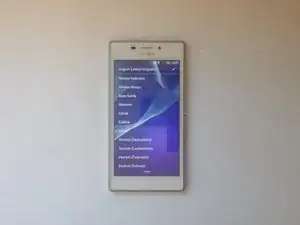

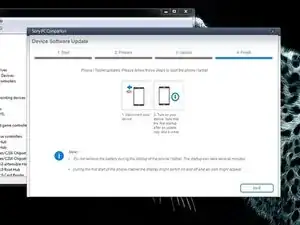

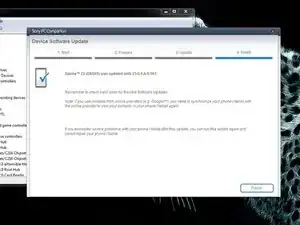

    • When PC Companion finished with update process, disconnect the phone and switch it on.

    • Now your phone is in factory condition, with erased custom data and without password protection.

    • .

    • Did you do it successfully?

    • Please SUBSCRIBE to my channel ツ

    it worked.. thank you soo much.. the procedure mentioned is so precised that i dint had any trouble doing it.. once again thanks alot you are a life saver.. keep doing good..

    khansalman10 -

Abschluss

To reassemble your device, follow these instructions in reverse order.
