Sony PlayStation 3D Display Control Buttons Replacement

Geschrieben von: Tia McNaughton
  • Kommentare: 1
Sony PlayStation 3D Display Control Buttons Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

This repair might be needed if the buttons on your Sony PlayStation 3D Display are not working.

  1. xUAZwThsa3CdKJbS
    xUAZwThsa3CdKJbS
    CWjjtvtUpkPIViPF

    • Remove the base by pushing in the button and sliding out the unit.

    Como se consigue la base de unidad sola??

    no encuentro en ninguna parte, de casualidad tu sabras?

    DYLAN DGUEZ -

  2. kiIuJGkEjnCyR2wB
    kiIuJGkEjnCyR2wB
    rR6unemnZRKqcbSE
    aUePqMZSRNoh24fh

    • Remove USB port cover from back plate with a metal spudger.

    • This will prevent the cover from falling under the back plate once it is removed.

  3. ahhbK2je1VT2AkHK
    ahhbK2je1VT2AkHK
    mI4JxSLUERcQUJx2

    • With the Phillips #02 screwdriver, remove the six 6 mm length x 6 mm head screws from the back plate.

    • With the Phillips #02 screwdriver, remove the ten 6 mm length x 8 mm head screws from the back plate.

    • These screws have different threads and need to be kept separate.

  4. TjbQbXbNNhvAyi4P
    TjbQbXbNNhvAyi4P
    uSNjJJZ1tWhSJv36
    tjp62hEYlljkl6d1

    • Remove back plate with a plastic opening tool by slowing prying around the entire plate.

    • Be gentle to avoid breaking the plastic clips which hold the plate.

    • Once separated the plate easily lifts off.

  5. G23dXmSfnEA1QDFL

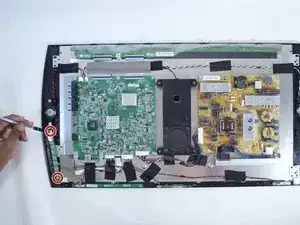

    • With the Phillips #01 screwdriver, remove the two 5 mm length x 7 mm head screws from the top and bottom of the control button bar.

  6. 1KMlNSSXS5DmJj2Y
    1KMlNSSXS5DmJj2Y
    dKXHWUplA1vgdSNT

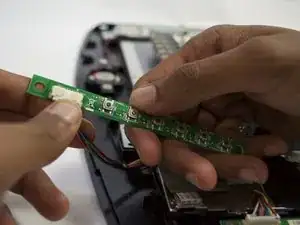

    • Detach the control button bar by depressing the small white tab that connects the bar to its wires.

Abschluss

To reassemble your device, follow these instructions in reverse order.
