Sony PlayStation 3D Display Power Port Replacement

Geschrieben von: Logan Simon
  • Kommentare: 1
Sony PlayStation 3D Display Power Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

This repair might be needed if your device is not receiving power.

  1. xUAZwThsa3CdKJbS
    xUAZwThsa3CdKJbS
    CWjjtvtUpkPIViPF

    • Remove the base by pushing in the button and sliding out the unit.

    Como se consigue la base de unidad sola??

    no encuentro en ninguna parte, de casualidad tu sabras?

    DYLAN DGUEZ -

  2. kiIuJGkEjnCyR2wB
    kiIuJGkEjnCyR2wB
    rR6unemnZRKqcbSE
    aUePqMZSRNoh24fh

    • Remove USB port cover from back plate with a metal spudger.

    • This will prevent the cover from falling under the back plate once it is removed.

  3. ahhbK2je1VT2AkHK
    ahhbK2je1VT2AkHK
    mI4JxSLUERcQUJx2

    • With the Phillips #02 screwdriver, remove the six 6 mm length x 6 mm head screws from the back plate.

    • With the Phillips #02 screwdriver, remove the ten 6 mm length x 8 mm head screws from the back plate.

    • These screws have different threads and need to be kept separate.

  4. TjbQbXbNNhvAyi4P
    TjbQbXbNNhvAyi4P
    uSNjJJZ1tWhSJv36
    tjp62hEYlljkl6d1

    • Remove back plate with a plastic opening tool by slowing prying around the entire plate.

    • Be gentle to avoid breaking the plastic clips which hold the plate.

    • Once separated the plate easily lifts off.

  5. pSBaK4MXLleILkwa
    pSBaK4MXLleILkwa
    FvYEx4UbFpblHci6
    Q1TAZLZoMeQbpVMD

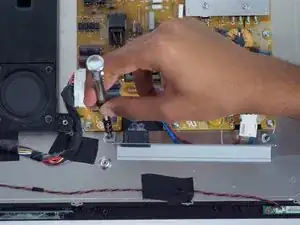

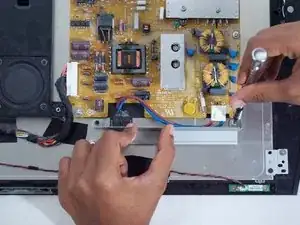

    • With the Phillips #02 screwdriver, remove the two 5mm length x 7mm head screws from the left and right side of the power port plate.

  6. CRYZqngo2bgbkaVo
    CRYZqngo2bgbkaVo
    2uPfUt1PsK6emuYo
    pUVoKTFfWdFYnSPG

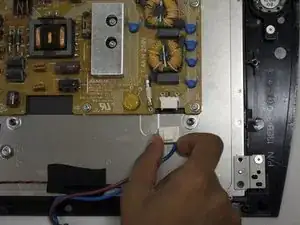

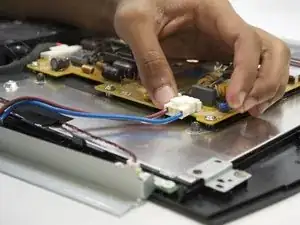

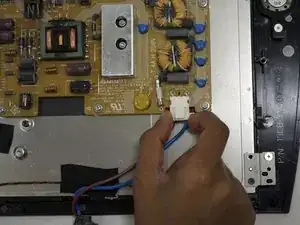

    • Remove the power port by depressing the white tab attached to the wires.

Abschluss

To reassemble your device, follow these instructions in reverse order.
