Sony PlayStation 3D Display Side Speakers Replacement

Geschrieben von: viharim
  • Kommentare: 1
Sony PlayStation 3D Display Side Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

Released November 13, 2011, this is the only model ever released. It can be disassembled with screwdrivers and a small amount of prying. Model # CECH-ZED1U

  1. xUAZwThsa3CdKJbS
    xUAZwThsa3CdKJbS
    CWjjtvtUpkPIViPF

    • Remove the base by pushing in the button and sliding out the unit.

    Como se consigue la base de unidad sola??

    no encuentro en ninguna parte, de casualidad tu sabras?

    DYLAN DGUEZ -

  2. kiIuJGkEjnCyR2wB
    kiIuJGkEjnCyR2wB
    rR6unemnZRKqcbSE
    aUePqMZSRNoh24fh

    • Remove USB port cover from back plate with a metal spudger.

    • This will prevent the cover from falling under the back plate once it is removed.

  3. ahhbK2je1VT2AkHK
    ahhbK2je1VT2AkHK
    mI4JxSLUERcQUJx2

    • With the Phillips #02 screwdriver, remove the six 6 mm length x 6 mm head screws from the back plate.

    • With the Phillips #02 screwdriver, remove the ten 6 mm length x 8 mm head screws from the back plate.

    • These screws have different threads and need to be kept separate.

  4. TjbQbXbNNhvAyi4P
    TjbQbXbNNhvAyi4P
    uSNjJJZ1tWhSJv36
    tjp62hEYlljkl6d1

    • Remove back plate with a plastic opening tool by slowing prying around the entire plate.

    • Be gentle to avoid breaking the plastic clips which hold the plate.

    • Once separated the plate easily lifts off.

  5. Qn6KJikbWMKKBsFc
    Qn6KJikbWMKKBsFc
    mRiusT4kCVrbXfRM
    PPahhOmmmxhBiduf

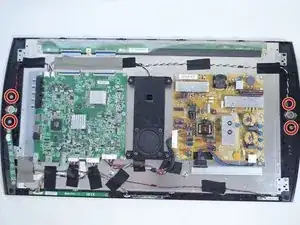

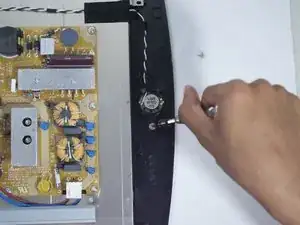

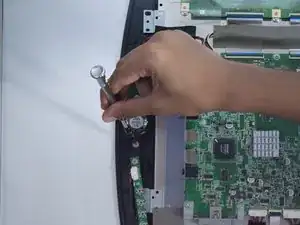

    • With the Phillips #01 screwdriver, remove the four 5 mm length x 7 mm head screws from the assembly (two for each side speaker).

  6. OWtXpEYGBG6pgFMM
    OWtXpEYGBG6pgFMM
    4vWcAr5Nb3dBmtBW
    JXXevoLJ46EqHiKN

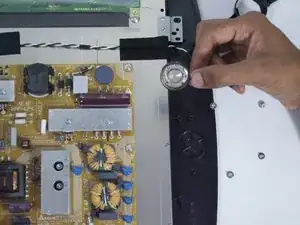

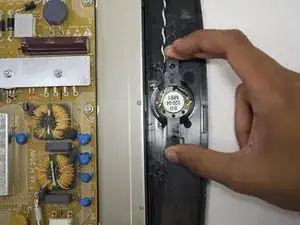

    • Remove the plastic plate covering the speaker.

    • When reassembling, make sure the arrow on the plastic plate is facing up.

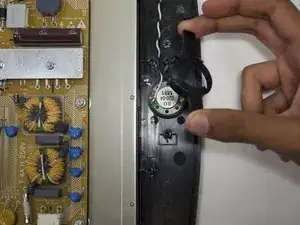

    • Lift the speaker out of its holding tray.

  7. FOGwhoIDMAbE4lyG
    FOGwhoIDMAbE4lyG
    rFORtOf1I6MHIBqS

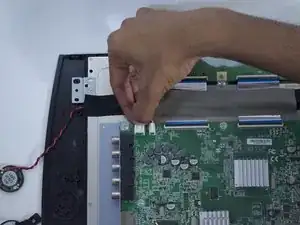

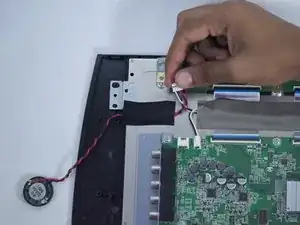

    • Remove the speaker by depressing the white tab on the speaker wire connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
