Sony Playstation 2 SCPH-79002 - Fan Replacement

Geschrieben von: Zach luc
  • Kommentare: 0
Sony Playstation 2 SCPH-79002 - Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will teach you how to replace the fan of the Sony Playstation 2.

  1. jTGIZgxMg5WcXkM2

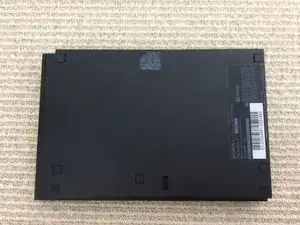

    • Flip your machine over

  2. IjXZpOFCtkwfCJkD

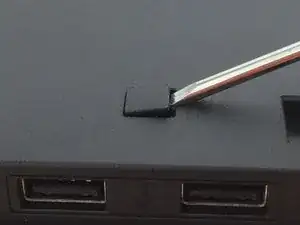

    • Grab a spudger and take off the tabs, like so.

  3. XiytcABvR3LAaY2g

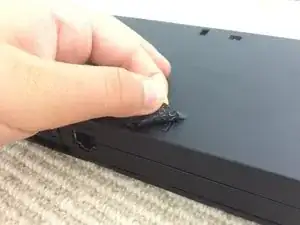

    • There is a warranty sticker that hides a tab, peeling it off will VOID your warranty!

  4. TcVUKNjSLhcMEGYG

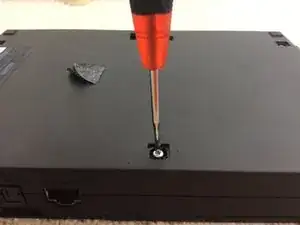

    • Unscrew the screws

  5. K1BHPXhAWRQGZGlg
    K1BHPXhAWRQGZGlg
    jFpVohQQOB6yolOa

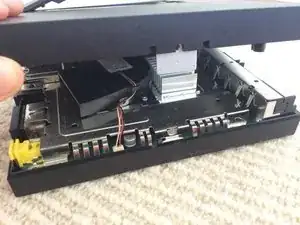

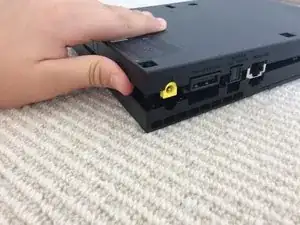

    • Once you've done that, take off the back of the console.

  6. MU1VsJBV1gmHscjm
    MU1VsJBV1gmHscjm
    5OLfgQTKYKMRoZRh

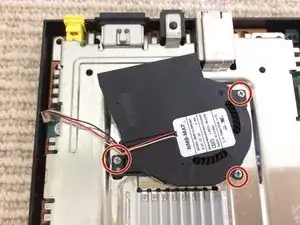

    • There are 3 screws that you need to unscrew, then you need to get a pair of tweezers and use a strong pull up.

Abschluss

To reassemble your device, follow these instructions in reverse order.
