Sony Playstation 2 SCPH-79002 - Front Cover Replacement

Geschrieben von: Zach luc
  • Kommentare: 0
Sony Playstation 2 SCPH-79002 - Front Cover Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

5 - 10 Minuten

Einleitung

This machine is a childhood memory, it had classical games like GTA SA, Tomb Raider and Shadow of the Colossus! Though unfortunately, your Playstation 2's front cover broke. Fortunately this guide will show you how to replace your broken front cover!

  1. kuhibAgUoeTpUmSh

    • Flip your machine over to the back.

  2. vd1lECJgroJvvKET

    • You'll see some outlined grey tabs on the outline of the back, get a spudger or something flat to pop them off.

  3. USsf1HS4homJtYli

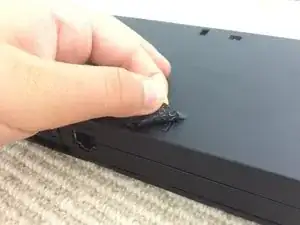

    • There is a warranty sticker on the bottom that shows a tab, peeling it off will VOID your warranty.

  4. m5gDKjfFuKnqXcNC

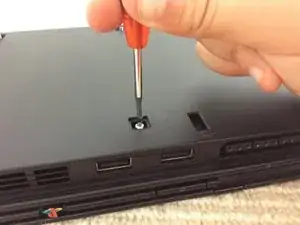

    • When you take off all the tabs, there should be a Phillip Head screw under each tab, unscrew them.

  5. YXpFqnIxVKuSvyqt
    YXpFqnIxVKuSvyqt
    ED2Huapy2IZVduLd

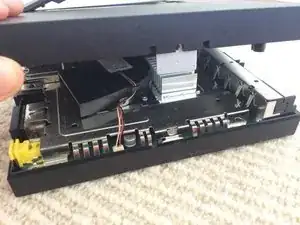

    • Once you have unscrew them, gently take off the front cover of the Playstation 2.

  6. NBOHSEBLCrRQIUGl

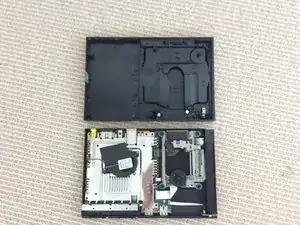

    • You should now see something like this.

  7. PCtKO2wuQZffU4kY

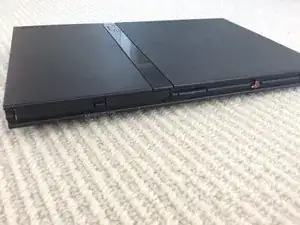

    • Get your replacement front cover and prepare to put it back on.

  8. tVxZdsGKnRH5Iecl

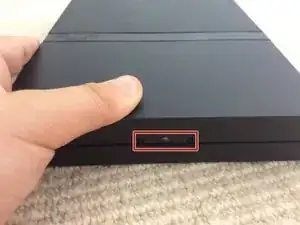

    • Align the front cover and put the front cover firstly on the selected area.

  9. jOODCxyDBNP3U1yE

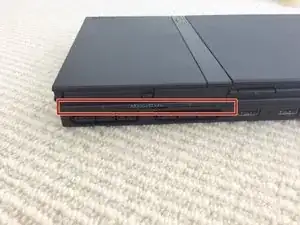

    • Make sure you clip the front cover onto the marked areas.

  10. flrtyfwleICq2SjK

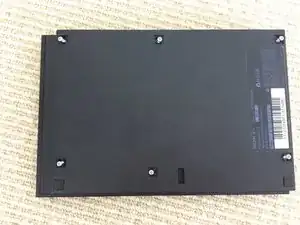

    • Put the screws in their correct place and screw them into the Playstation 2.

  11. bc35yxaGEP2SsfVb

    • When done screwing, put the tabs into their correct places.

Abschluss

You have now put a new front cover onto your Playstation 2 superslim!
