Sony Pulse Elite Edition Battery Replacement

Geschrieben von: Chris Echter
  • Kommentare: 7
Sony Pulse Elite Edition Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 - 20 Minuten

Einleitung

When working with electrical components, be sure to avoid loose wires.

  1. RnIkYTN2vCggb6Sm

    • Locate the left side designation on the headband-earpiece junction.

    • The battery is in the right earpiece.

    • The motherboard is in the left earpiece.

  2. iCjJAEYUiC6JAhxJ
    iCjJAEYUiC6JAhxJ
    gVGoaMHEZVqHRbDm

    • Gently pull around the perimeter of the left ear cushion until it comes off.

  3. IQGmUFwDYK2Fd4pR
    IQGmUFwDYK2Fd4pR
    gksaxhIoF1EwnMZB

    • Use the PH00 Screwdriver to remove the three Phillips 6mm screws around the perimeter of the ear cup.

    • Gently pull the outer ear rim off of the headset assembly.

    • Harsh removal may cause permanent damage to the speaker wires.

  4. RHBhKgX3D362vFMs

    • Using tweezers, gently pry the red and black speaker wires from the attached socket.

  5. VEfSFkKYi5yMdYpl
    VEfSFkKYi5yMdYpl
    U1VnXHOeQnljy6wA

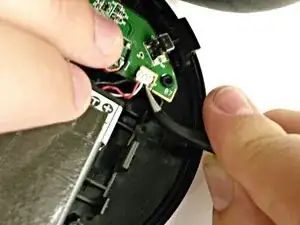

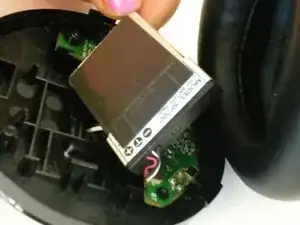

    • Lift up battery and disconnect wires using tweezers.

    • Use a new battery for reconstruction.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Chris Echter

Mitglied seit: 29/01/15

862 Reputation

7 Kommentare

Where can I buy the replacement battery for this?

Pretty hard to find...

francisklalumiere -

Replacement batteries can be found by googling "SP70C battery". It is a Lithium battery with 900mAh and a 3.7v output. AliExpress shows them for $11 including shipping.

David McAndrews -

Can I mod and replace the battery with a bigger one with no white connection, just positive and negative? Thanks!

marit -

Thank you so much for this guide. I got a 1000mAh batter from Amazon for 10 dollars. It lasts way longer and was extremely easy to install. Very thankful for this. Thanks!

sharku19z -

i just attempted... the connector to the battery just pulled off. NOTE: Pull up from PCB not out. The connector sets down into it.

Garrett Parmenter -

you didn’t show how to remove the inner ring that holds the battery in, looks very fragile and I don’t want to break it

brimest0ne -

brimest0ne, the inner ring is fastened down by the same three screws originally removed in step three! When you remove the inner ring, the bass volume adjustment side will give you a little resistance, just be gentle and it comes right off. That’s it, now replace the battery and start using the headset again! What I really want to know, has anyone done an upgrade will battery replacement and how much more time are you getting from the upgrade?
